Canon imageRUNNER ADVANCE C3530i III Service Manual

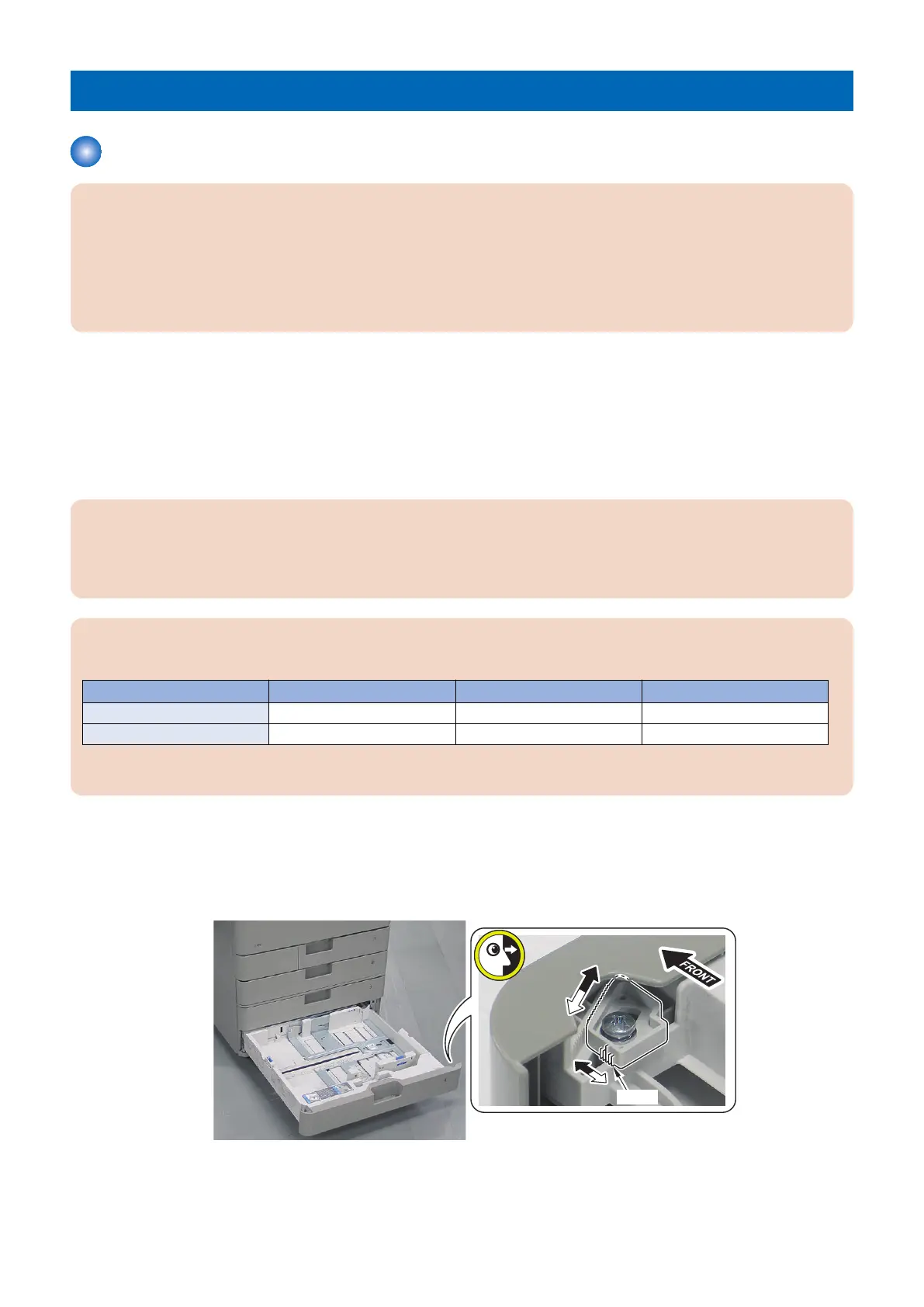

Pickup Feed System
Image Position Adjustment
CAUTION:
Adjusting the 1st side also changes the margin on the 2nd side. If the difference between the 1st and the 2nd sides is within
+/- 0.5 mm, do not adjust the 2nd side.
Reference: Standard Value
Leading edge: 4.0+1.5/-1.0mm (front side, back side)
Left edge: 2.5+/-1.5mm (front side) / 2.5+/-2.0mm (back side)
1. After setting the service mode as follows, press the Start key and print out a test sheet by 2-sided print from each
paper sources.
• COPIER > TEST > PG > TYPE = 5
• COPIER > TEST > PG > COLOR-K = 1
• COPIER > TEST > PG > COLOR-Y/M/C = 0
• COPIER > TEST > PG > 2-SIDE = 1
• COPIER > TEST > PG > PG-PICK = each paper source
CAUTION:
When image is printed by 2-sided print, 1st side is printed up side of the paper and 2nd side is printed down side of the
paper. When checking the leading edge margin on the 1st side, check the margin in up side of the paper on the rear side
from the feed direction.
CAUTION:
If the margin is not within the standard values, Adjust the image position of each cassette in the following order.
Order Cassette 1 Cassette 2 Cassette 3/4
1 Software Adjustment Software Adjustment Service Mode Adjustment
2 - Service Mode Adjustment Software Adjustment
*: Image position can not be adjusted by manual with the Cassette1.
■ Manual Adjustment
1. Pull out the Cassettes.
2. Check the value of the scale on the Adjustment Plate.
Scale
5. Adjustment
272

Canon imageRUNNER ADVANCE C3530i III Specifications

General

Print Resolution	1200 x 1200 dpi
Interface	USB 2.0, Ethernet, Wi-Fi
Output Paper Capacity	250 sheets
Duplex Printing	Yes
Copy Resolution	600 x 600 dpi
Multiple Copies	Up to 999 copies
Magnification	25% - 400% (1% Increments)
Scan Resolution	600 x 600 dpi
Fax	Optional
Fax Resolution	400 x 400 dpi
Power Consumption (Maximum)	1.5 kW
Type	Color Laser
Functions	Print, Copy, Scan, Send, Store
First Print Out Time	5.9 seconds or less
Processor Speed	1.75 GHz
Memory	3.0 GB RAM
Hard Disk Drive	320 GB
Supported Media Types	Plain, Heavy, Recycled, Color, Label, Envelope
Supported Media Sizes	A3, A4, A5, B4, B5, Legal, Letter, Executive
Supported Media Weights	52-220 gsm
Pull Scan	Yes
Send Resolution	200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Display	10.1-inch TFT LCD WSVGA Color Touch Panel
Mobile Printing	Available
