Canon imageRUNNER ADVANCE C3530i III Service Manual

Laser Exposure System
Removing the Laser Scanner Unit
■ Preparation
1. Pull out the Cassette 1.
2. Open the Waste Toner Assembly Cover.
3. Remove the Left Cover (Upper).
■ Procedure

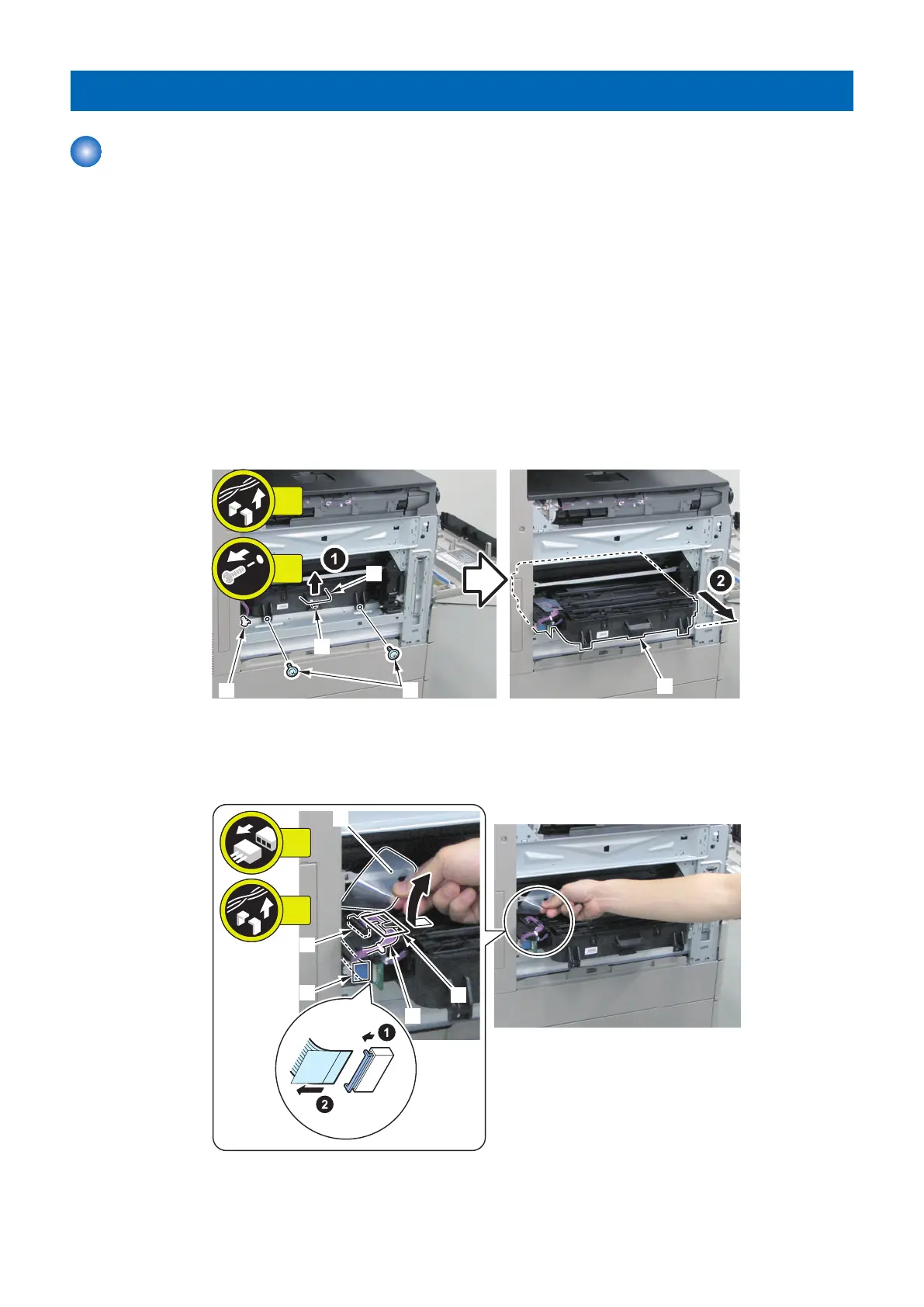

1. Grasp and lift up the handle [1] to release the protrusion [2], and pull out the Laser Scanner Unit [3] to the position
in the following figure.
• 1 Clamp [4]
• 2 Screws [5]
2x
[1]
[2]
[3]
[4]
[5]
1x
2. Turn over the Protection Sheet [1], and free the harness [2] from the Harness Guide [3].
• 1 Connector [4]
3. Disconnect the Flexible Cable [5].
1x
2x
[1]
[4]
[3]
[5]
[2]
4. Parts Replacement and Cleaning
198
