Canon LBP 3370 - Foot Positions

Installation Site
2-6
Installing the Printer
2
■ State with the paper feeder installed

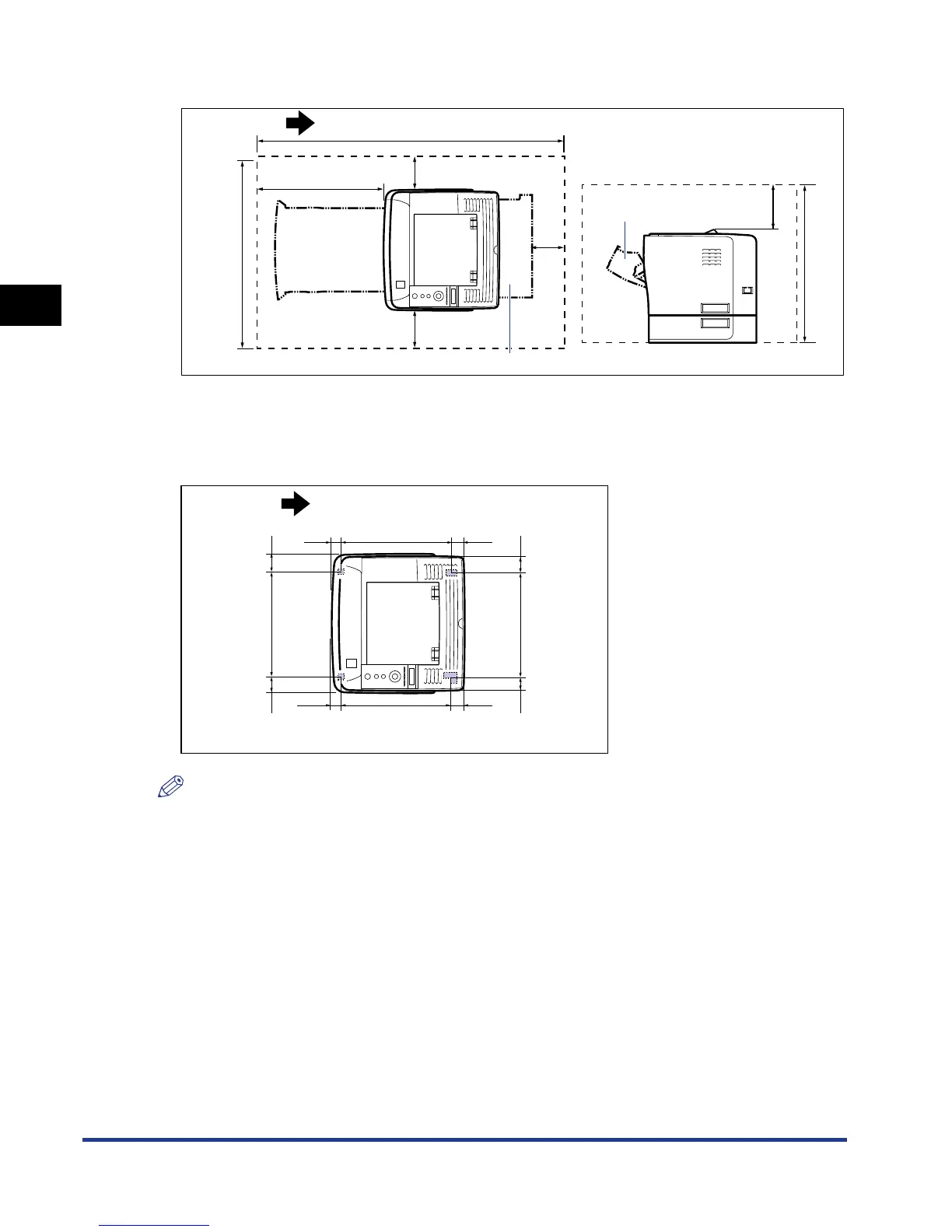

Foot Positions
■ Printer unit
NOTE
The front feet are 7.8 mm high and their top surface is 12 mm square.
The rear feet are 7.8 mm high, the left top surface has a rectangular shape of 21.7 mm x
40 mm, and the right top surface is 18.6 mm x 40 mm and is L-shaped.
(mm)
100
100 100
1072.9
500
599.7
200
556
Front Surface
Output selection cover
Paper cassette
Front cover
(mm)
62.3
283.2
54.2
43.9
294.2
40.5
54.3
277.6
52.7
43.9
294.2
40.5
Front Surface
