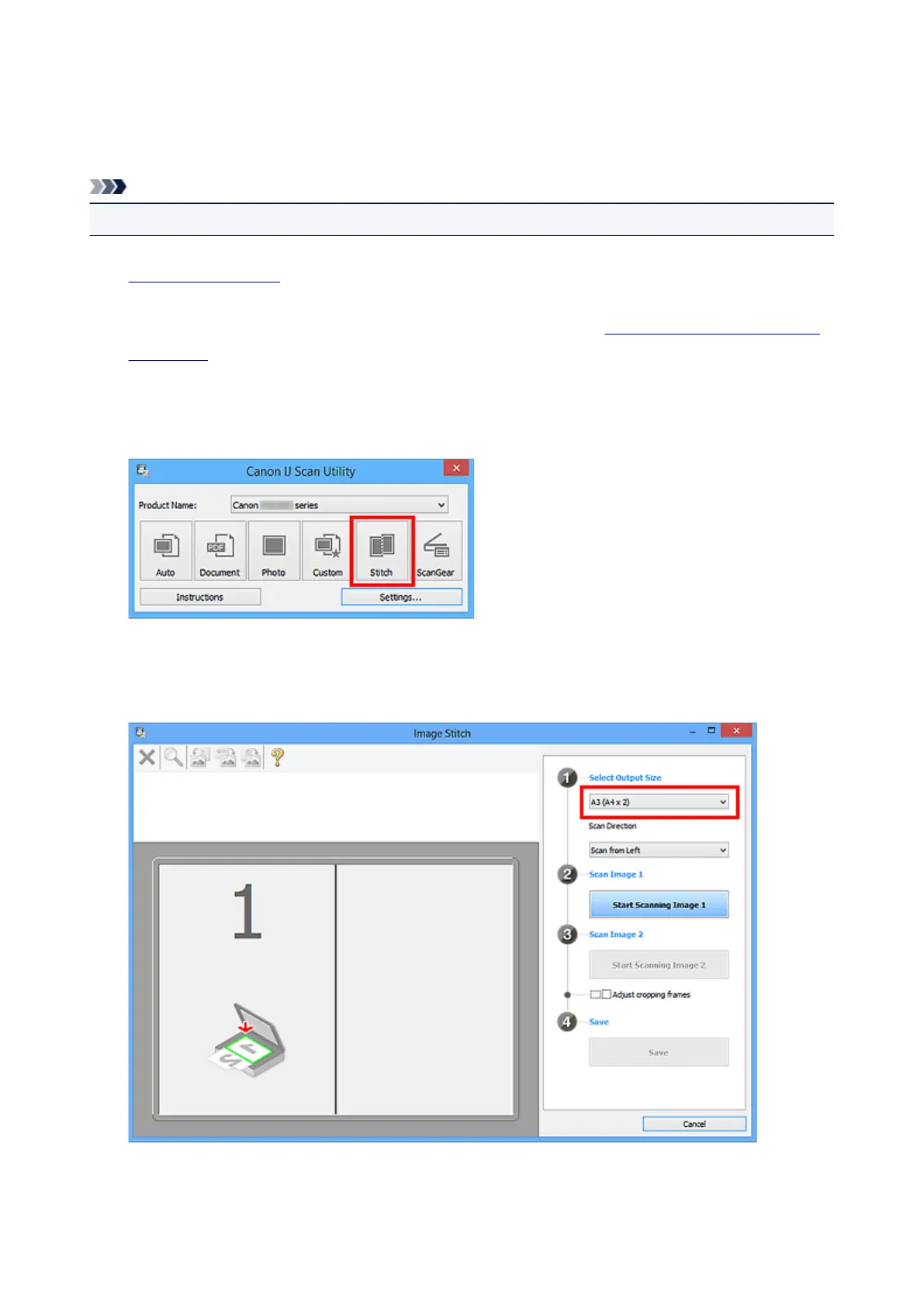

Scanning Originals Larger than the Platen (Image Stitch)
You can scan the left and right halves of an item larger than the platen and combine them back into one
image. Items up to approximately twice as large as the platen are supported.
Note
•
The following explains how to scan from the item to be placed on the left side.
1.
Start IJ Scan Utility.
2.
Click Settings..., then set the item type, resolution, etc. in the Settings (Scan and Stitch)
dialog box as required.
When setting is completed, click OK.
3.
Click Stitch.
The Image Stitch window appears.
4.
In Select Output Size, select an output size according to the paper size.
5.
Make sure that Scan from Left is selected in Scan Direction.
628
To Next Page
