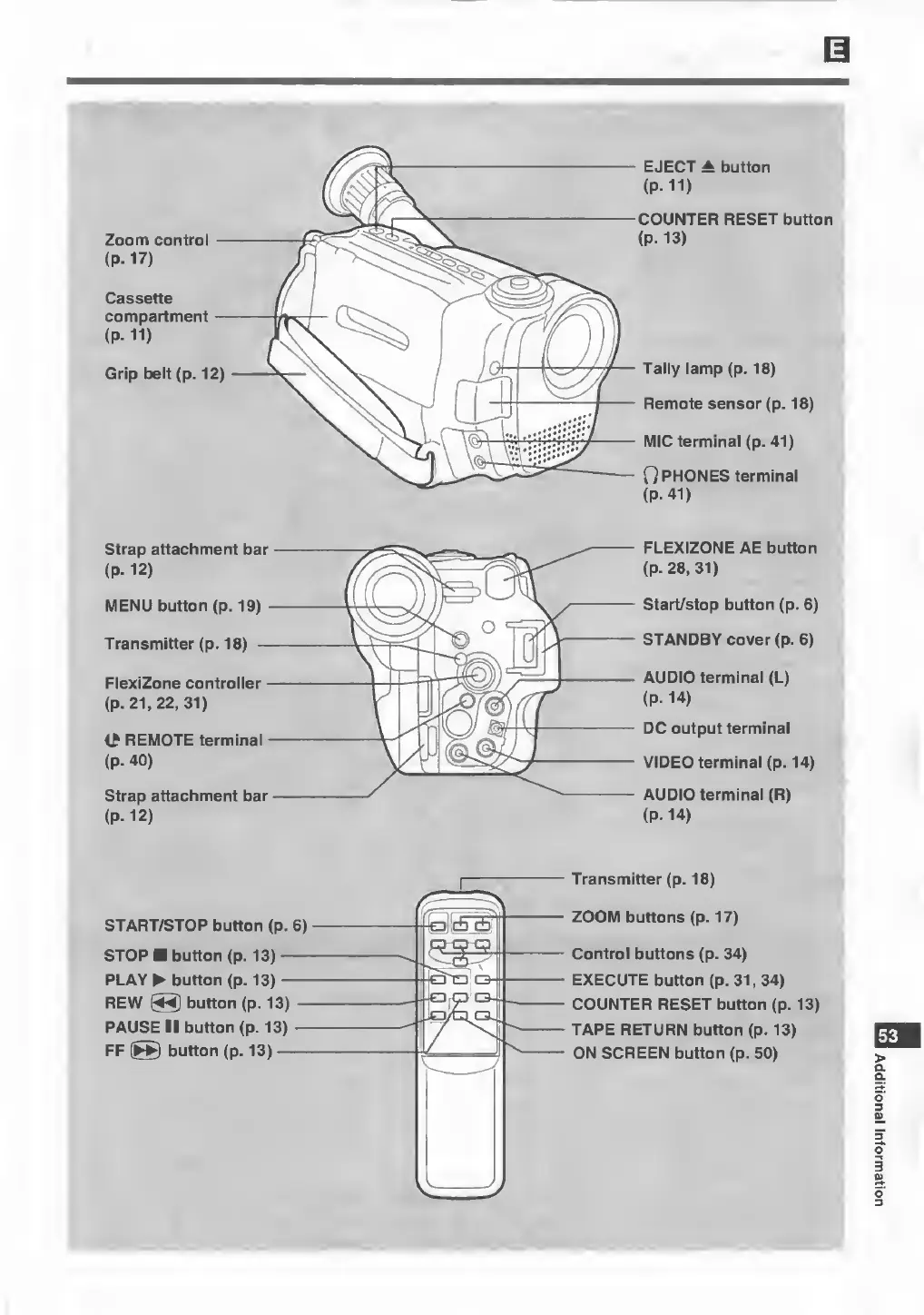

Canon UC800 - Remote Control Nomenclature

Zoom control
(P* 17)
Cassette
compartment
(P- 11)
Grip belt (p. 12)
EJECT ± button
(P-11)
COUNTER RESET button
<P- 13)
Tally lamp (p. 18)
Remote sensor (p. 18)
MIC terminal (p. 41)
Q PHONES terminal
(P- 41)
Strap attachment bar
(P- 12)
MENU button (p. 19)
Transmitter (p. 18) —
FlexiZone controller
(p. 21,22, 31)
O REMOTE terminal -
(p. 40)
Strap attachment bar
(P-12)
FLEXIZONE AE button
(P- 28, 31)
Start/stop button (p. 6)
STANDBY cover (p. 6)
AUDIO terminal (L)
(p. 14)
DC output terminal
VIDEO terminal (p. 14)
AUDIO terminal (R)
(P-14)
START/STOP button (p. 6)
STOP ■ button (p. 13)-
PLAY ► b utton (p. 13)-
REW @) button (p. 13)
PAUSE II button (p. 13) -
FF ( ►► ) button (p. 13)
Transmitter (p. 18)
ZOOM buttons (p. 17)
Control buttons (p. 34)
EXECUTE button (p. 31, 34)
COUNTER RESET button (p. 13)
TAPE RETURN button (p. 13)
ONSCREEN button (p. 50)
53
Additional
Information
