Operation
6

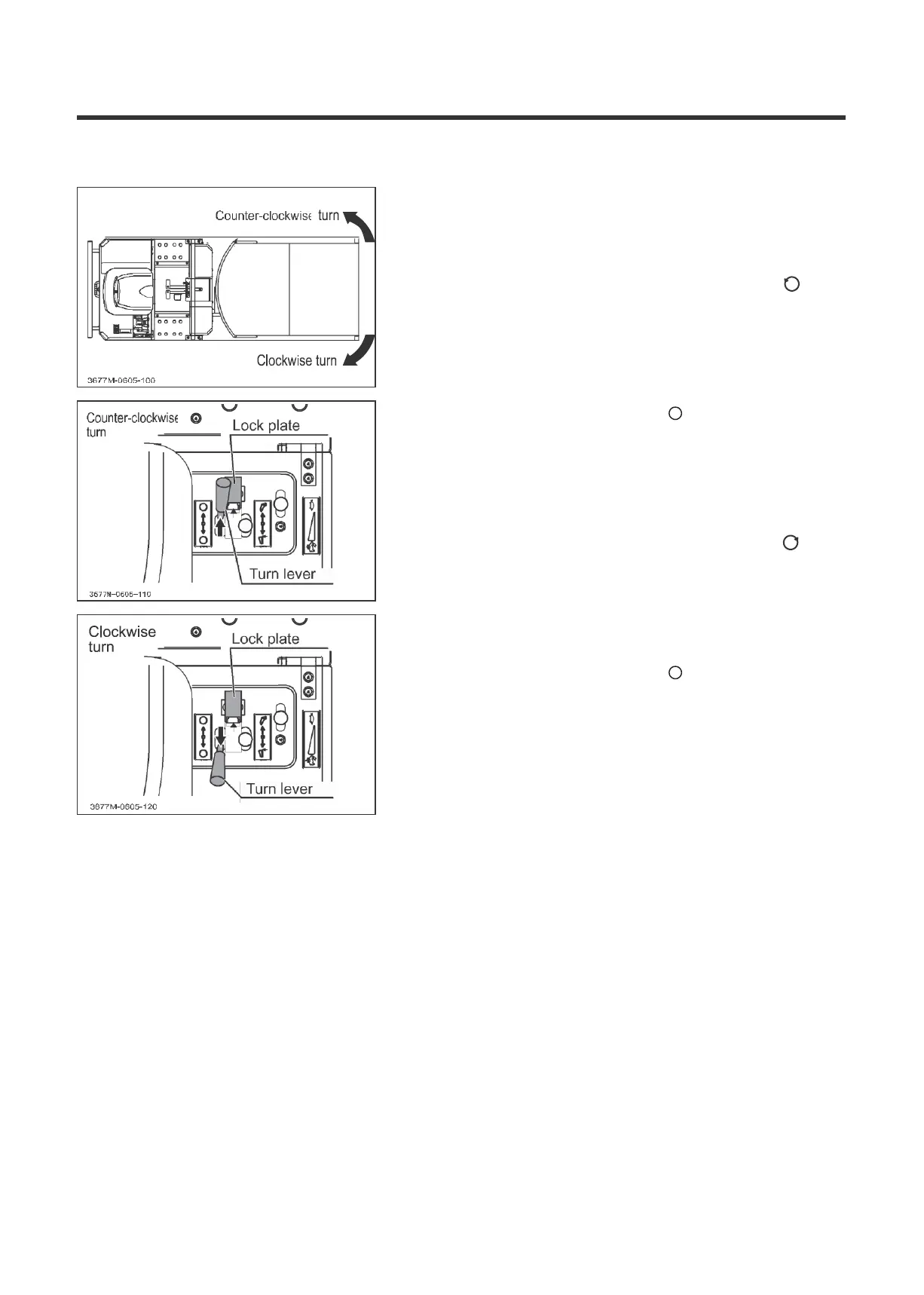

Swivel Dump
When turning the load deck body counter-clockwise
1. Unlock the lock plate.
2. Tilt the turn lever in the direction of forward [
(counter-clockwise turn)].
Maximum angle of rotation: 90
°
3. When the load deck body is turn to the maximum
angle of rotation, a "hiss" sound is heard. Quickly
return the turn lever to the [ (HOLD)] position.
When turning the load deck clockwise
1. Unlock the lock plate.
2. Tilt the turn lever in the direction of reverse [
(clockwise turn)].
Maximum angle of rotation: 90
°
3. When the load deck body is turn to the maximum
angle of rotation, a "hiss" sound is heard. Quickly
return the turn lever to the [ (HOLD)] position.
