CanyCom S100 - Lubrication Points and Procedures

- 37 -
Maintenance
7
7.5 Lubricating
Proper lubrication will prevent seizures and rust, and ensure smooth oper-
ation. Lubricate every 6 mouths.

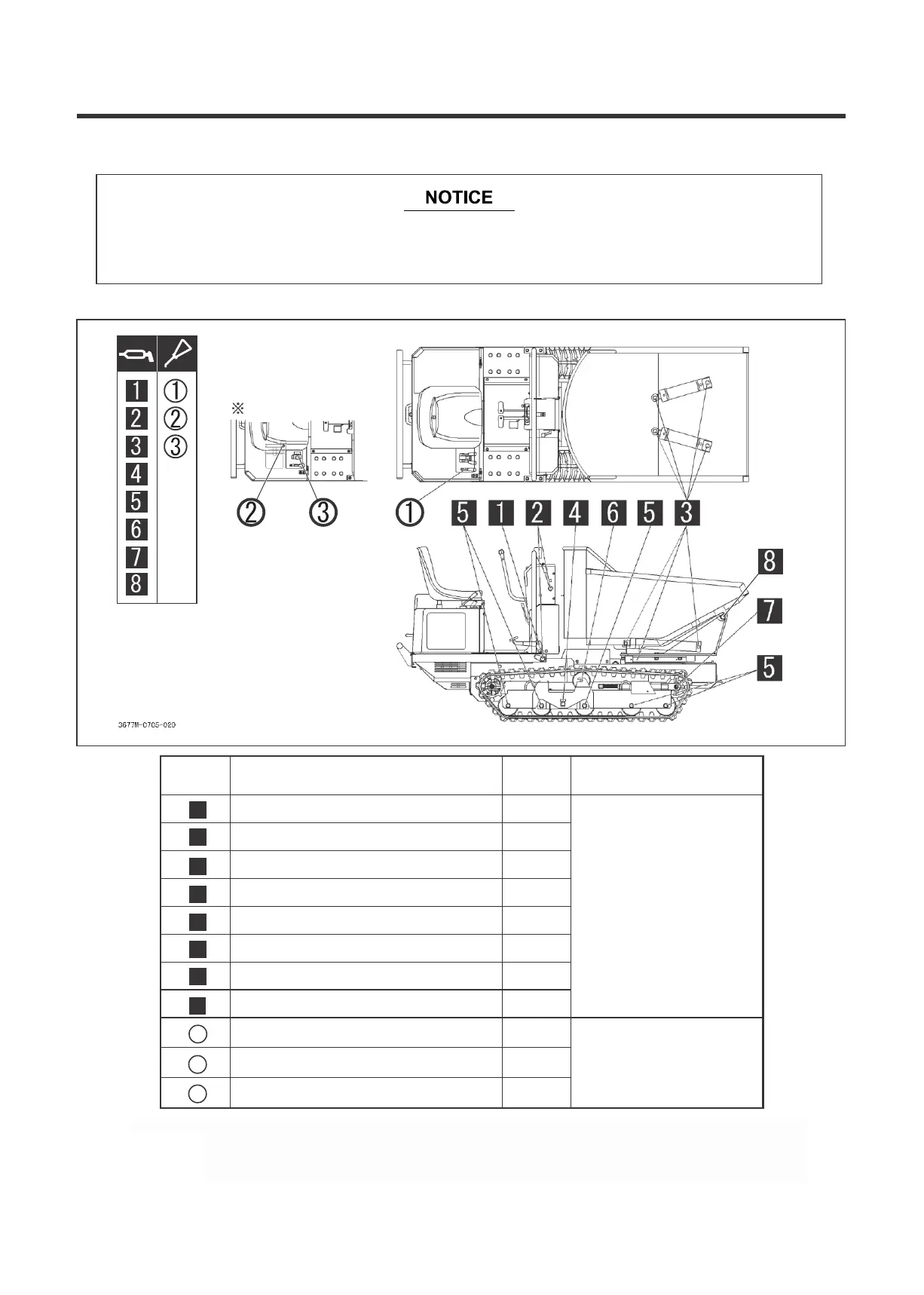

Lubricate the illustrated points.
One-way dump
No.
Lubrication area
Lubrication
points
Type of lubrication
1
Parking brake pedal link section
1
Grease
2
Clutch lever pivot
2
3
Hydraulic cylinder pivot • (Slewing ring)
2 (7)
4
Swing roller pivot
2
5
Roller shaft*
10
6
Upper roller
2
7
Idler
2
8
Bessel pivot
1
1
Throttle lever pivot
1
Oil
2
Hydraulic V-belt tension arm
1
3
Dumper lever pivot
1
*Reference: To lubricate the roller shaft, remove the outside nut, tighten the furnished grease fitting with a
spanner, and apply grease to the rollers through the grease fitting. After greasing, remove the
grease fitting, and tighten the nut firmly to the shaft.
