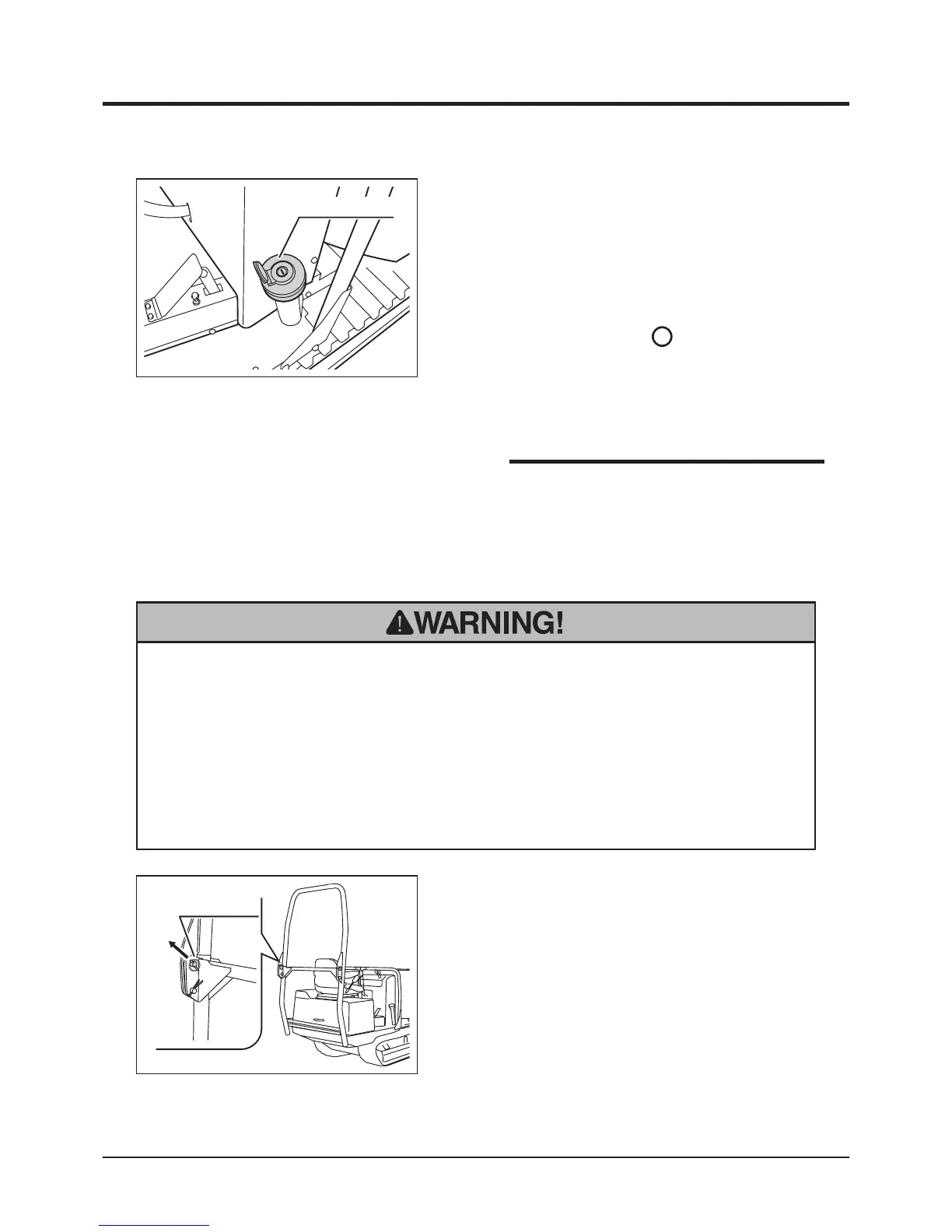

CanyCom S160 - Using ROPS (on ROPS Model)

Operation
-16-
4
• On machine equipped with optional ROPS, always keep ROPS in the extended
(unfolded) position when riding the machine. Folding feature is provided for the
convenience of transporting the machine.
• Stay clear of ROPS when folding it. Upper portion of ROPS may fall.
• Beware of the pinch points when extending or folding ROPS.
Using ROPS (on ROPS Model)
1. Pull off security pin from ROPS lock pin.
3683M-0401-060E
Security Pin
Unfolding/folding ROPS
• Fuel : Diesel Fuel No.2-D (ASTM D975)
• Fuel Tank Capacity : 22L
NOTE
3683M-0401-030E
Fuel Filler Cap
1. Insert key in fuel ller cap and unlock it.
2. Open fuel ller cap and remove key.
3. Insert key in main switch and turn it to
[ | (On)] position.
4. Fill fuel. Check fuel gauge when lling.
5. Turn main switch to [ (Off)] position and
remove key.
6. Put fuel ller cap back and tighten it securely.
Insert key to lock it and remove key.
Filling Fuel
