-17-

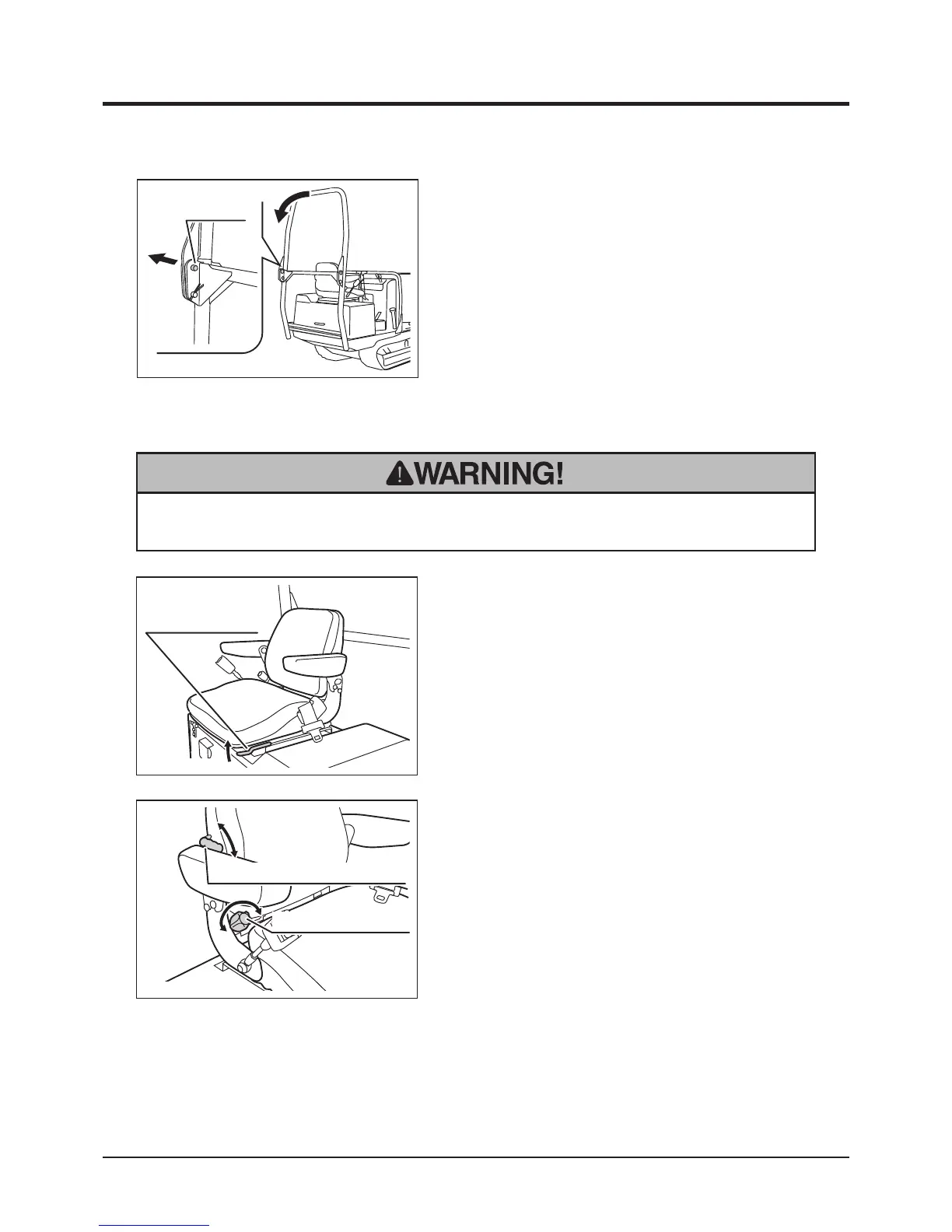

Operation 4
2. Pull off lock pin from either side of ROPS.
3. Fold ROPS.
4. Extend and secure ROPS in the reverse
order.
3683M-0401-070E
Lock Pin
• When adjusting seat, make certain the seat is securely locked.
Adjusting Seat
1. Pull up seat adjust lever.
2. Slide seat to a comfortable position. Release
the lever.
3683M-0401-040E
Seat Adjust Lever
Sliding seat
1. Turn seatback adjust knob to adjust the
angle of seatback.
2. Turn seatback firmness adjust lever up or
down to adjust the rmness of seatback.
3683M-0401-050E
Seatback Firmness Adjust Lever
Seatback Adjust Knob
Adjusting seat back
To Next Page
