-47-
Maintenance 5
Adjusting
1. Loosen lock nut.
2. Adjust track with adjust bolt so that the
clearance between track and track frame at
the furthest are between 60 and 70mm.
3. Tighten lock nut
4. Lower the machine.

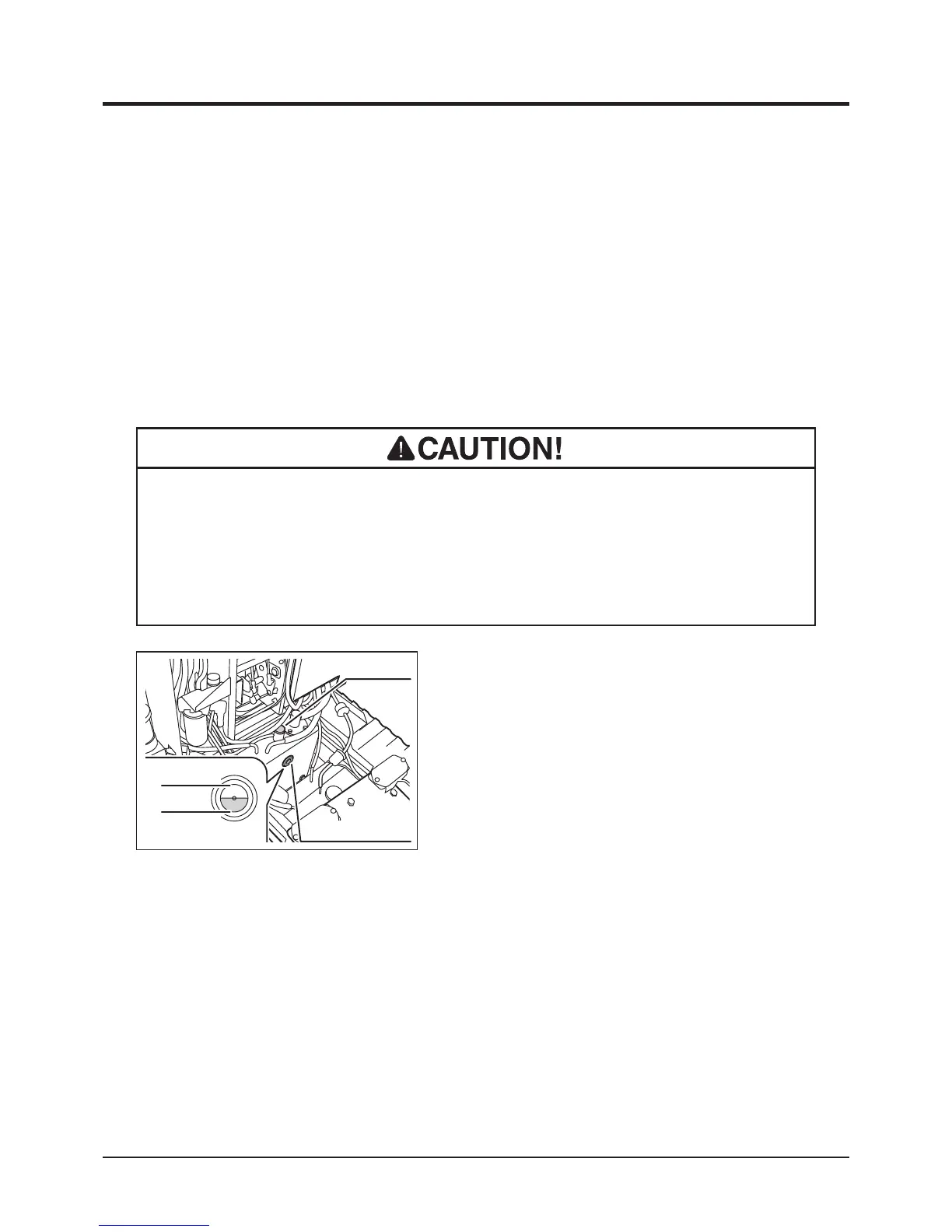

HST (Hydrostatic Transmission) Fluid
• Dispose of the drained uid properly, according to the national and local regula-
tions.
• Burn hazard; pay special attention when handling the hydraulic uid. Hot uid
may cause burns.
3683M-0507-020E
Filler Cap
Upper Limit
Lower Limit
Oil Level Window
1. Park the machine on level ground.
2. Lift the bucket and hold it with the safety
prop. (Page 31) Lock the dump lever with
lock plate.
3. Remove tank cover panels 1 and 2. (Page
40)
4. Visually inspect oil level window.
5. If the level is low, open ller cap and ll uid.
Put ller cap back in place.
6. Install tank cover panels.
7. Undo safety prop. Lower bucket.
Inspecting/Filling
To Next Page
