Maintenance 5
Transmission Oil
• Always park the machine on a level surface and block the tracks with chocks
when working under the machine.

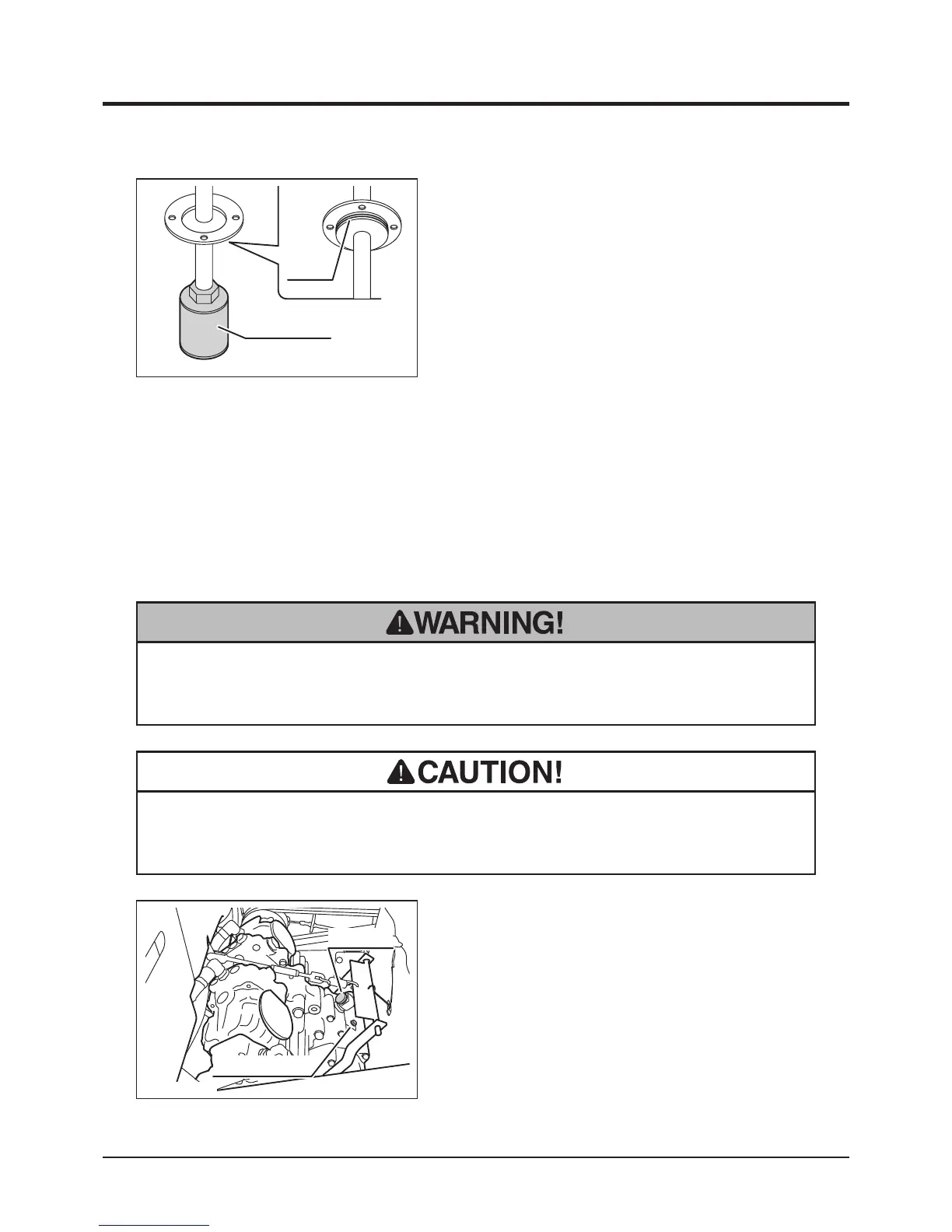

11. Coat O-ring with hydraulic fluid evenly and
insert suction lter mount in tank. Make sure
to insert it straight so that O-ring does not
get out of the groove. Fasten the suction
lter mount with bolts.
12. Open filler cap and fill fluid. Put filler cap
back in place.
13. Undo safety prop. Lower bucket.
14. Start the engine and engage the clutch to
circulate the uid. Watch for leaks.
15. Lift bucket and hold bucket with safety prop.
Inspect uid level.
16. Install tank cover plates 1 and 2. (Page 40)
17. Undo safety prop. Lower bucket.
3570M-0507-180E
Suction Filter
O-ring
1. Park the machine on a level ground.
2. Remove oor panel.
3. Remove ller cap and inspection plug. Pour
oil into filler until oil flows out of inspection
plug.
4. Visually inspect the condition of oil. If dirty,
change it.
3683M-0507-060E
Inspection Plug
Filler Cap
Inspecting
• Dispose of the drained oil properly, according to the national and local regula-
tions.
