Maintenance
-52-
5
• Always keep brake adjusted for maximum performance. Improperly adjusted
brakes may result in property damage, serious injury, or death.

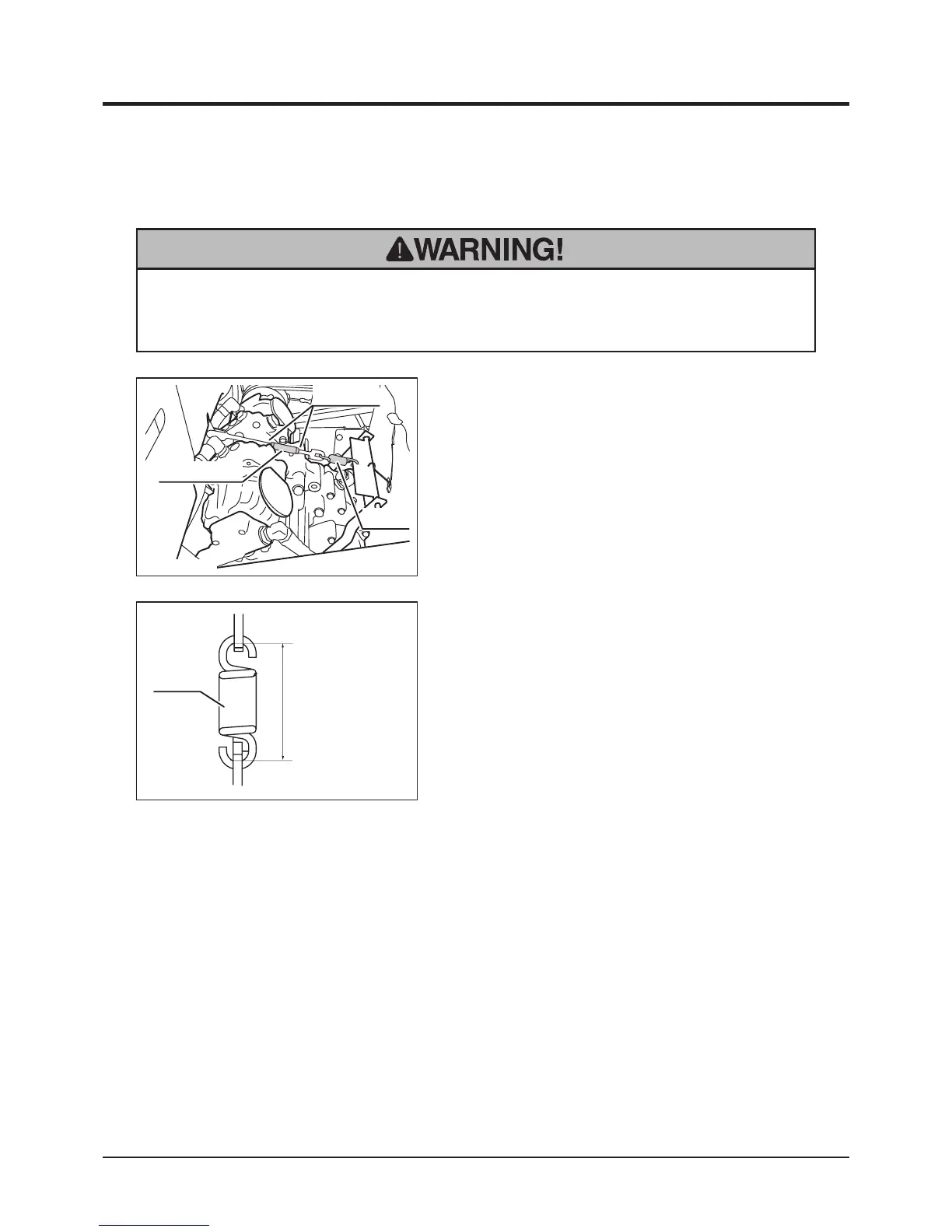

Parking Brake
3683M-0507-100E
Lock Nuts
Turnbuckle
Spring
1. Make certain steering levers are in the
neutral position.
2. Depress parking brake pedal and lock it.
3. Remove oor panel.
4. Loosen lock nuts on brake linkage.
Inspecting/Adjusting
5. Adjust turmbuckle so that the distance
between spring hooks is between 84 and
85mm.
6. Tighten lock nuts securely.
7. Install oor panel.
3683M-0507-110E
Spring
84 - 85mm
