Operation
-30-
4

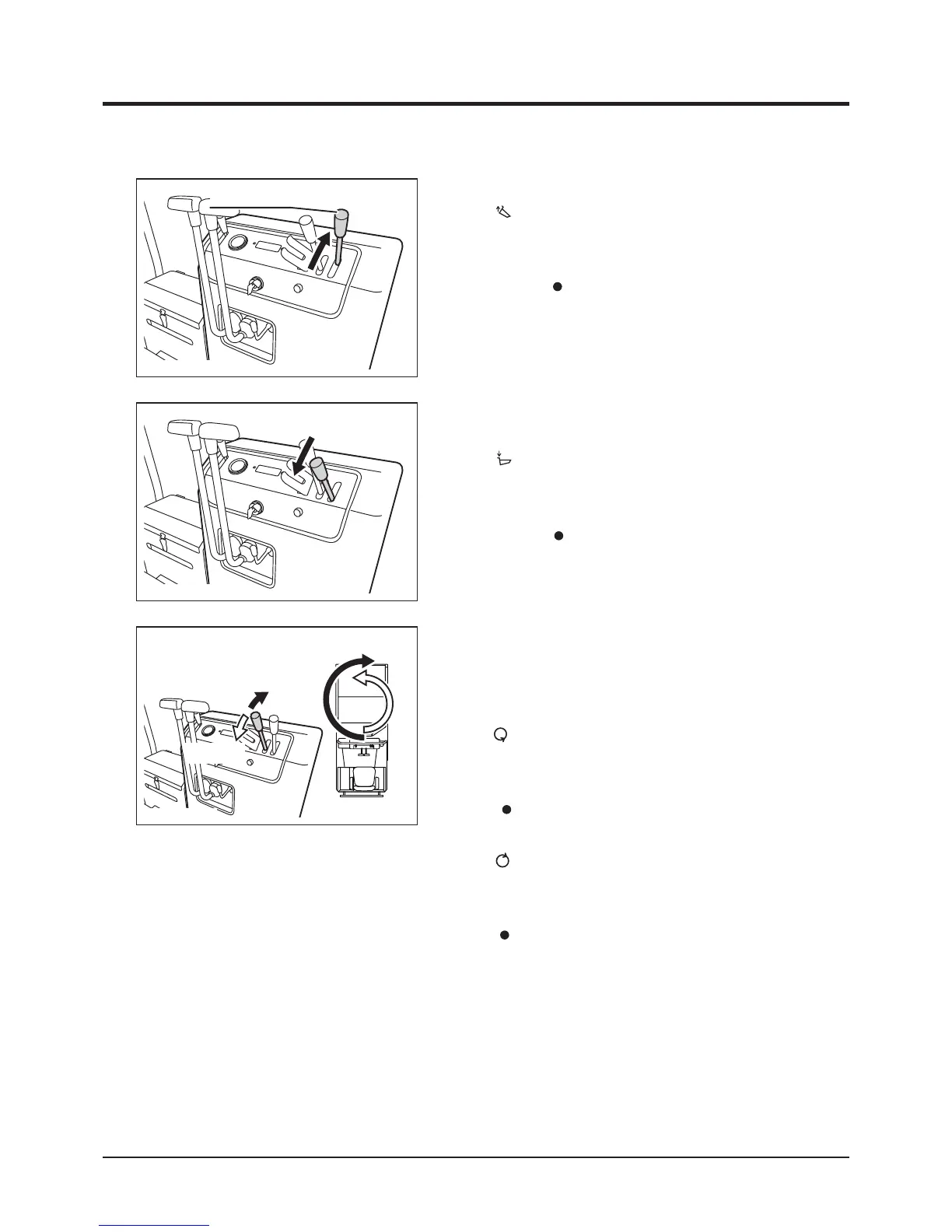

Lowering Bucket
3683M-0403-030E
5. Mo v e d u m p l e v e r g r a d u a l l y t o w a r d
[ (down)] to lower bucket.
6. When bucket reaches its lower limit, a
hissing noise is heard; move dump lever
back to [ (neutral)] position.
7. Turn lock plate back in place to lock dump
lever.
8. Turn lock plate to the side so that turn lever
can be operated.
9. M o v e t u r n l e v e r g r a d u a l l y t o w a r d
[ (left)] to turn bucket left.
10. When bucket reaches its limit, a hissing
noise is heard; move turn lever back to
[ (neutral)] position.
11. M o v e t u r n l e v e r g r a d u a l l y t o w a r d
[ (right)] to turn bucket right.
12. When bucket reaches its limit, a hissing
noise is heard; move turn lever back to
[ (neutral)] position.
13. Turn lock plate back in place to lock turn
lever.
Turning
3683M-0403-040E
Right Turn
Left Turn
3. Mo v e d u m p l e v e r g r a d u a l l y t o w a r d
[ (up)] to raise bucket.
4. When bucket reaches its upper limit, a
hissing noise is heard; move dump lever
back to [ (neutral)] position.
3683M-0403-020E
Dump Lever
