-55-
Maintenance 5
3. Visually inspect that battery fluid level is
between the "Upper Level" and "Lower
Level" lines. If the fluid level is below the
"Lower Level," ll.
UPPER LEVEL
LOWER LEVEL
Filler Plugs
3570M-0509-020E

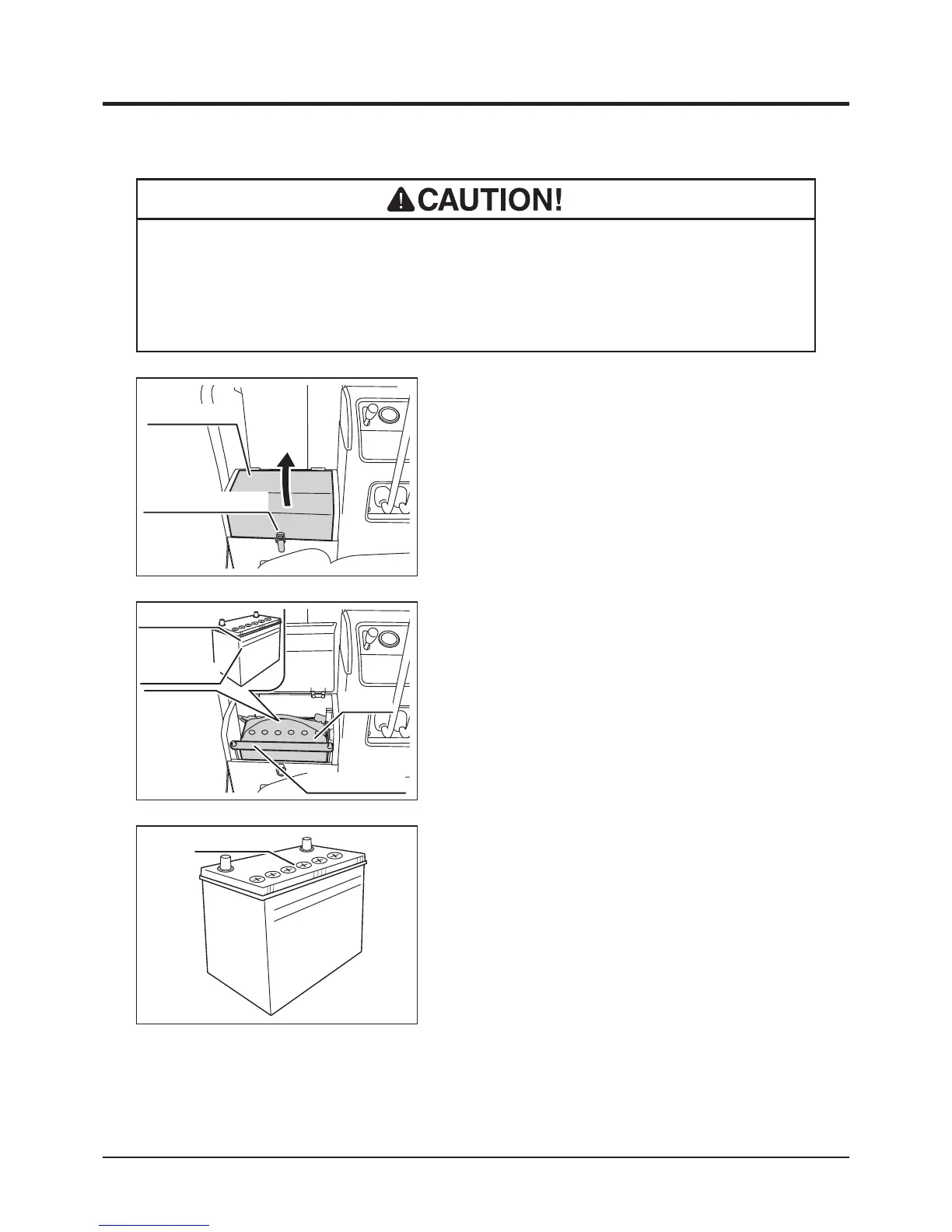

1. Park the machine on level ground.
2. Unlatch battery cover latch and open battery
cover.
Inspecting
3683M-0508-010E
Battery Cover
Battery Cover Latch
• Always remove battery from the machine before charging. Failure to do so may
cause damage to the electrical components and wiring.
• Follow the battery charger user's manual when charging.
Filling
UPPER LEVEL
LOWER LEVEL
3683M-0508-020E
Battery
Battery Bracket
Upper Level
Lower Level
4. Remove battery bracket and battery from
the machine.
5. Open filler plugs and add distilled water to
battery evenly until uid level is between the
"Upper Level" and "Lower Level" lines.
6. Put ller plugs back in place.
7. Install battery.
8. Close battery cover and latch it.
