OPERATOR MANUAL |CAPTAIN 273 4WD 87
5.32 OPERATION 11

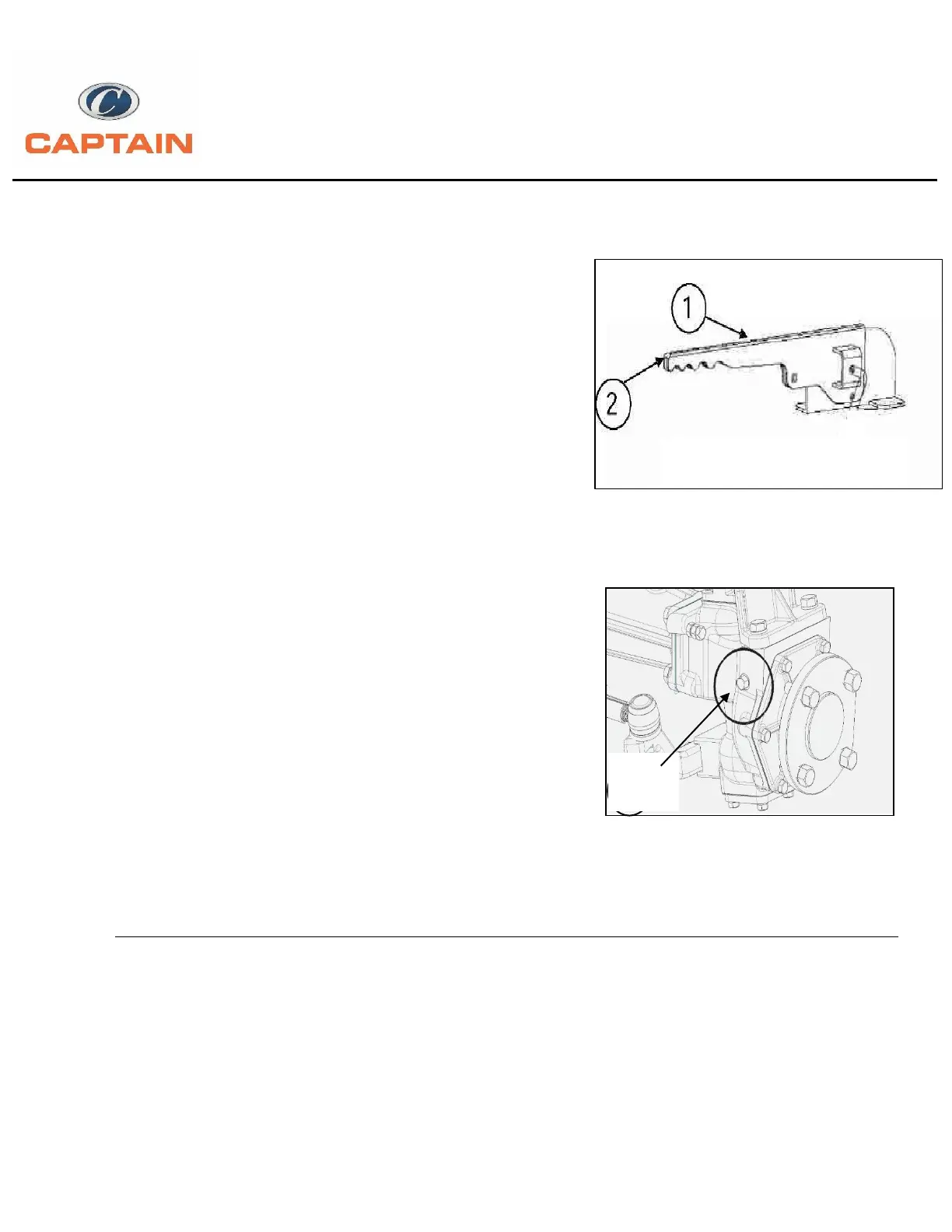

Parking brake - Fig.5-14
The parking brake lever acts directly on the main brakes.
Make sure that free travel is identical for both pedals, since free
travel of the pedals dictates the free travel of the parking brake
and left/right distribution of the braking action when the
brakes are locked. Once you have adjusted the brake pedals,
adjust the free travel of the parking brake. (Fig.5-14) on the
control linkage on the left side of the tractor, so that the
parking brakes engage after clicks of the ratchet mechanism,
sensed on the release button (2) of the lever.
Parking brake adjustment
1. Parking brake lever.
2. Release button.
5.33 OPERATION 12
Front axle oil level
4WD front axle
Regularly check the oil level in the differential of the front axle
and in the front axle side final drives. Park the tractor on level
ground.
Position the final drive plugs) (Fig. 5-15) on the wheel center
line. Remove the plugs and check the level. Top up if necessary
with oil of the specified type through the plugs.
(Fig.5-14)
(Fig.5-15)
2
