PARTS IDENTIFICATION

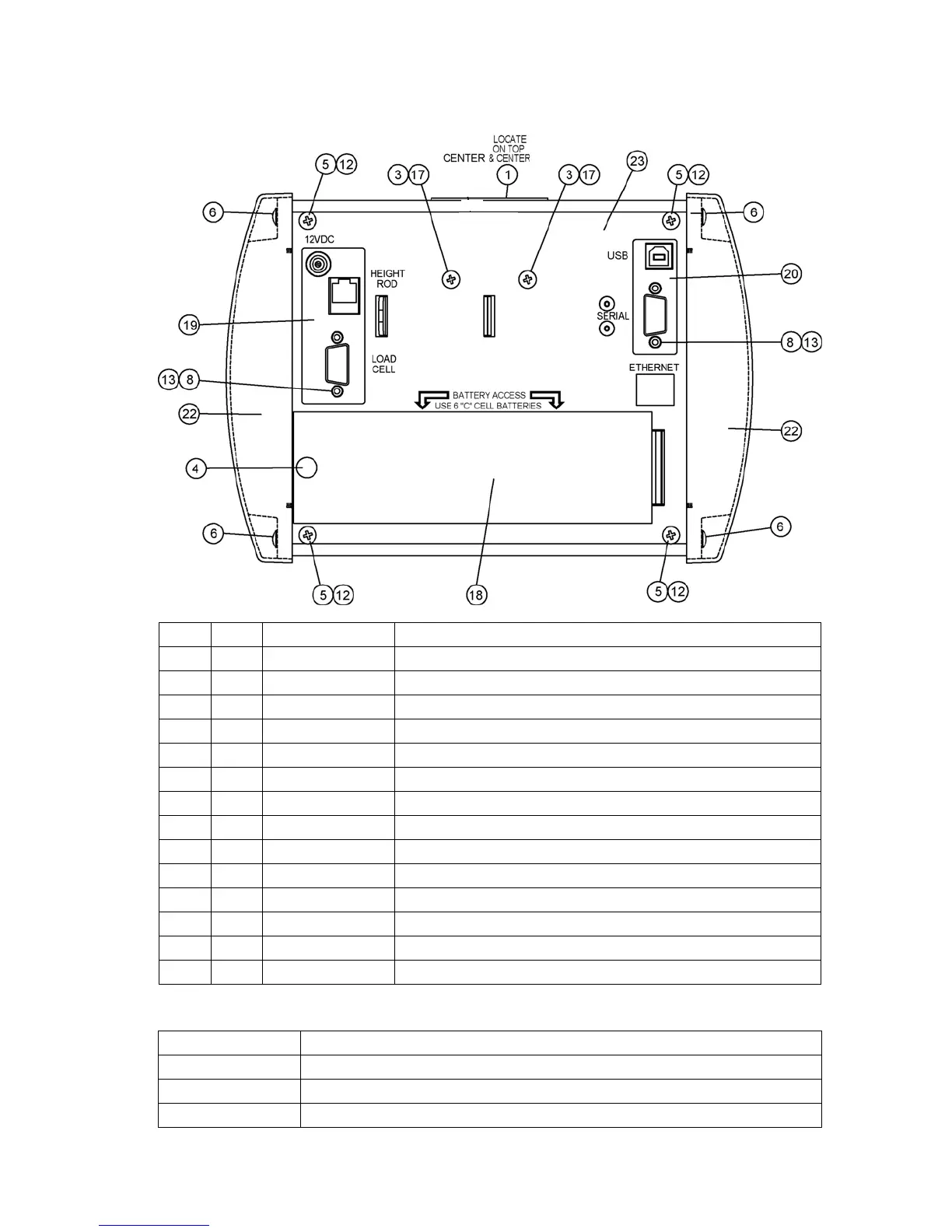

Rear View Detail
ITEM QTY. PART NUMBER DESCRIPTION
1 1 593GR986 SERIAL TAG ASSEMBLY
3 2 6021-0687 SCW TRUSS HEAD #6-32 X .375 THMS
4 1 6021-1032 THUMB SCRW, 6-32 X 0.25
5 4 6021-2069 SCW TRUSS HEAD SHEET METAL #6 X .50 (WHITE)
6 4 6021-6008 SCW TRUSS HEAD SHEET-METAL #6 X.375” (BLACK)
8 4 6610-2000 JACK SOCKET
12 8 6680-0004 WASHER LOCK INT. TOOTH #6 Z/P
13 4 6680-0052 WASHER LOCK HELICAL #4 Z/P
17 2 8555-B159-08 SPACER, 758C MOUNT
18 1 8555-B166-08 BATTERY COVER
19 1 8555-B452-08 BOX, THREE CONNECTOR
20 1 8555-B453-08 BOX, TWO CONNECTOR
22 2 8555-C213-08 END CAP
23 1 8555-C448-0A REAR PANEL ASSEMBLY
Optional AC Adapters
(not shown)
6800-1045 AC ADAPTER 100-240VAC/12VDC @ 1 AMP US PLUG
6800-1047 AC ADAPTER 100-240VAC/12VDC @ 1 AMP EURO PLUG
AC230AU AC ADAPTER 100-240VAC/12VDC @ 1 AMP, AU PLUG
AC230UK AC ADAPTER 100-240VAC/12VDC @ 1 AMP, UK PLUG
