8555-M210-O1 Rev R 758C Owner’s 41

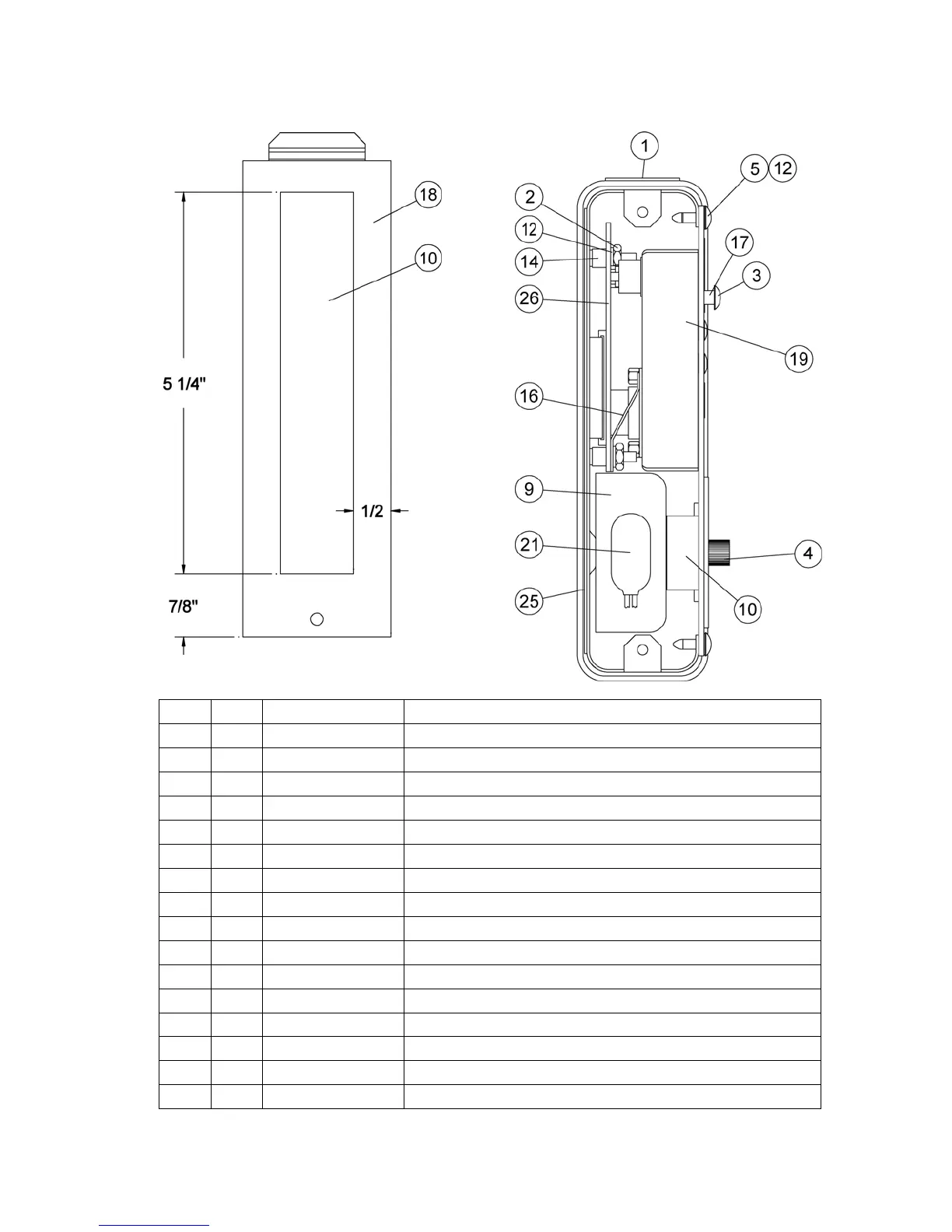

PARTS IDENTIFICATION, CONT.
Battery Cover Detail Side View Detail
ITEM QTY. PART NUMBER DESCRIPTION
1 1 593GR986 SERIAL TAG ASSEMBLY
2 4 6013-0039 NUT HEX #6-32
3 2 6021-0687 SCW TRUSS HEAD #6-32 X .375 THMS
4 1 6021-1032 THUMB SCRW, 6-32 X 0.25
5 4 6021-2069 SCW TRUSS HEAD SHEET METAL #6 X .50 (WHITE)
9 1 6610-5119 BATTERY HOLDER 6-C CELLS
10 1 6650-0018 GASKET MATERIAL 1” X 1/2” X 5 1/4”
12 8 6680-0004 WASHER LOCK INT. TOOTH #6 Z/P
14 4 6680-0138 SPACER #6 X .187 NYLON
16 1 8200-B369-08 GROUND SPRING
17 2 8555-B159-08 SPACER, 758C MOUNT
18 1 8555-B166-08 BATTERY COVER
19 1 8555-B445-08 BOX, THREE CONNECTOR
21 1 8555-B461-0A CABLE: BATTERY
25 1 8555-D222-08 KEYPAD: 758CSV (INTERNATIONAL VERSION)
26 1 8555-D444-0A BOARD ASEMBLY – 758C
To Next Page
