3.1. Inverter Preset
Please make the parameters were set as follows before connecting with the copy unit:
When LED digits are blinking, this means
stand by status.
This copy unit can save 4 different parameters, the order is 0 to 3.
Attention: 1.If user connect to the copy unit before the presetting, the copy unit will show err0.
3.2 Function Detail
Attention:
1. Make sure the inverter is in stop status before enter copy mode.
2. Please follow installation figure to connect the copy unit and the inverter.
3. Available RVLF firmwareV1.0(and above).

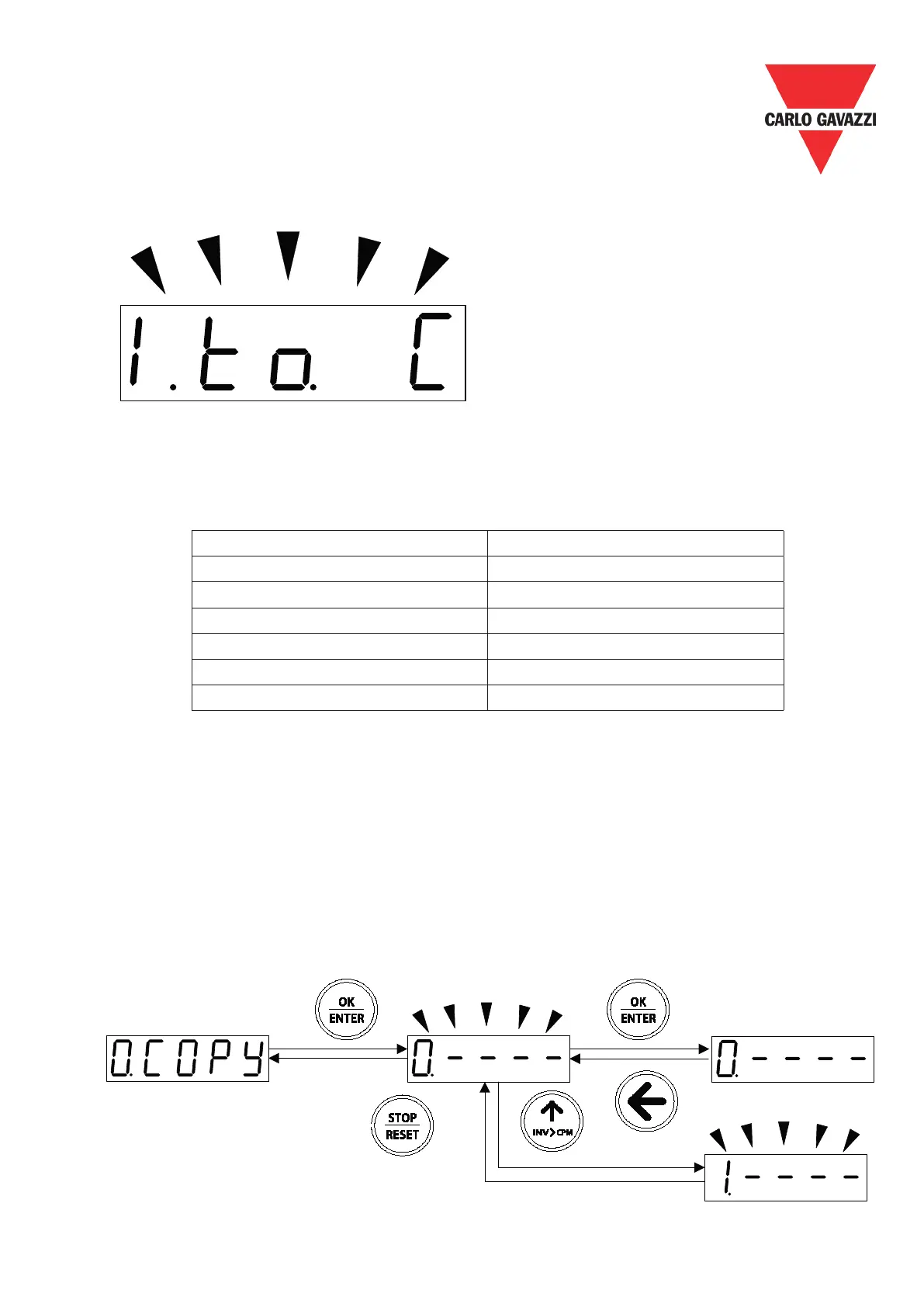

• Enter the Copy Mode
3. Copy Unit Operating Description
Parameter Value
Serial Comm Adr 1
RTU/ASCII RTU
Baud Rate Setting 19200
Stop Bit Selection 1Bit
Parity Selection No
Data length Selection 8Bit
