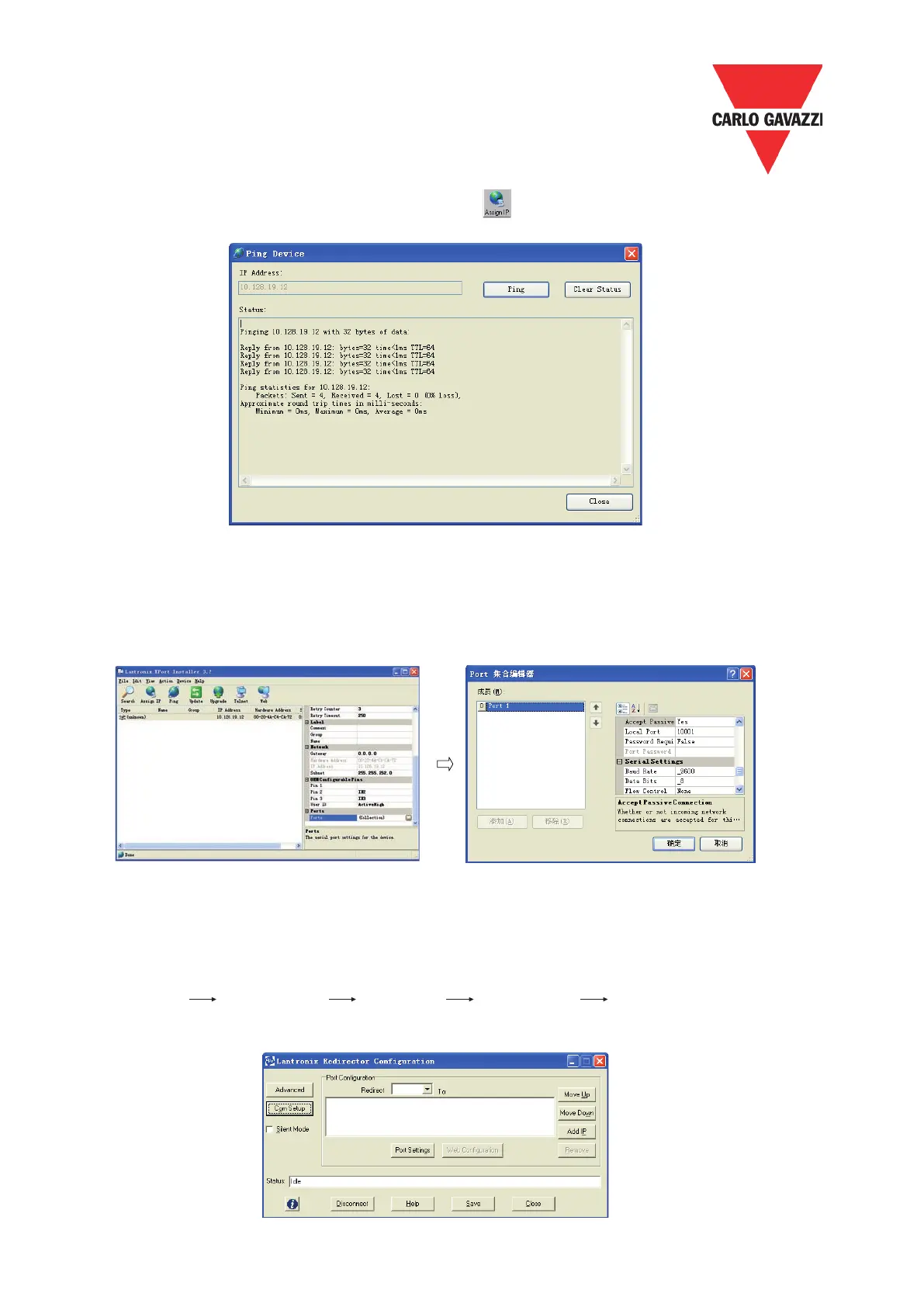

Figure 5: Display interface of Ping Device
Figure 6: User interface of Port Collection Editor
Figure 7: User interface of Lantronix Redirector Configuration
(4). After you select the IP address, click the icon of Ping button displays the information
of IP, shown as figure 5:
Check if the IP address shown in the display interface of Ping Device is the only one and
enabled for PC network. If it is correct, click “Close.”
(5). Click “Port” at the right corner of the user interface of Lantronix Xport Installer 3.2 so it can
display the user interface of Port Collection Editor, shown as figure 6:
In the user interface of Port Collection Editor, you can set parameters of Baud Rate member, Data
Bits member, Stop Bits member and etc. for situations of actual operations.
2. lantronix Instructions (under the conditions of Xport Installer searching for enabled IP address)
(1). Click“START” “PROGRAM” “lantronix” “Redirector” “Configuration” and
enter the user interface of Lantronix Redirector Configuration, shown as figure 7:
