(6). Click “Save” in the interface of Lantronix Redirector Configuration so as to keep the
above configurations. Then click “Close.”
After completing the configurations of “Xport Installer” and ”lantronix,” the inverter can
communicate with the machine supporting RS485 communication protocol and monitor it.
• A brief description of communication ways between RV-TCPIP and RVFFB3401100F:

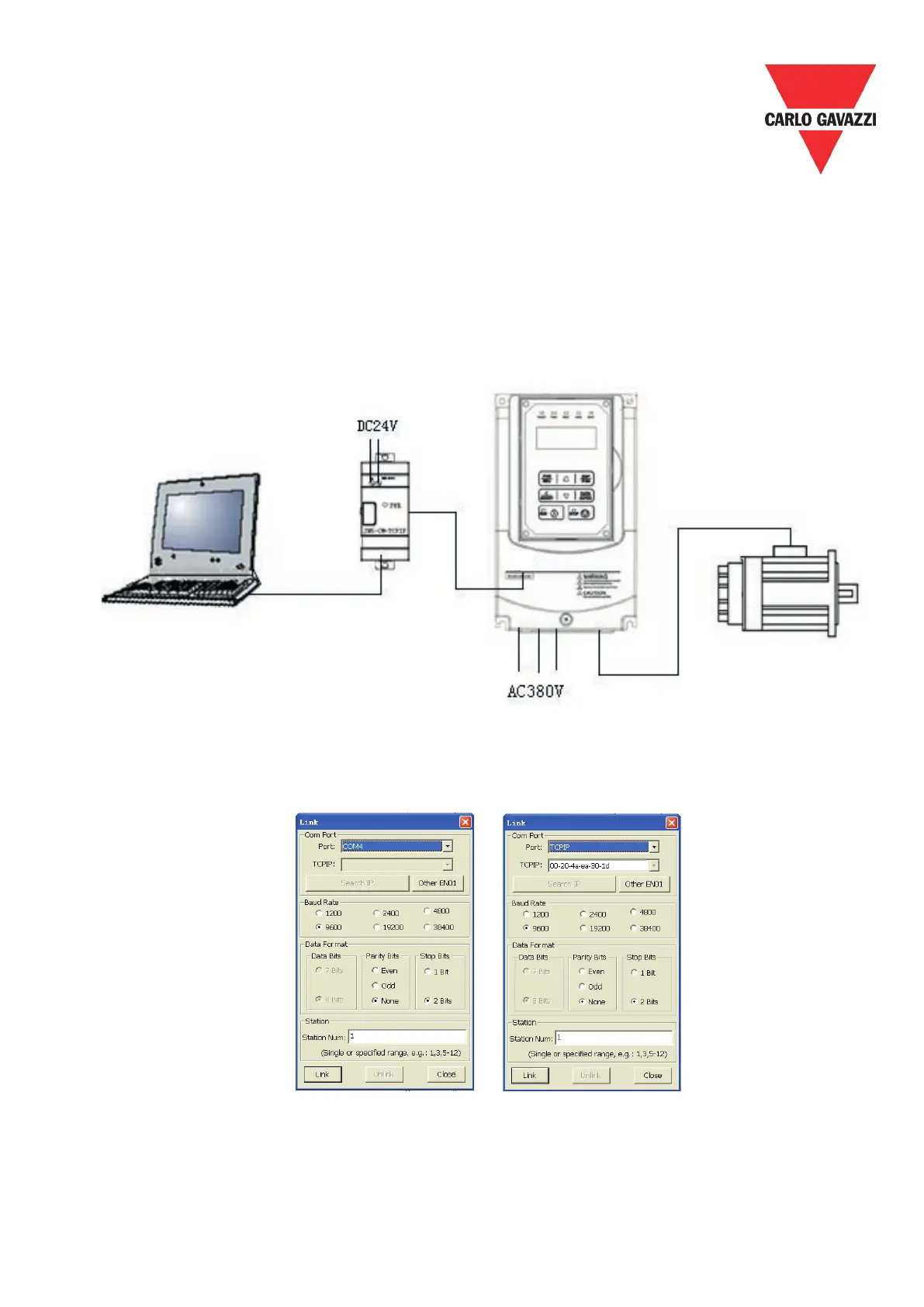

Wiring diagram is shown as the following:
1. Installing host computer software and open it to establish new engineering of
RVFFB3401100F.
2. The communicating connection ways between RV-TCPIP and RVFFB3401100F are virtual
COM port and TCPIP.
It requires selecting “Baud Rate,” “Parity Bit,” “Stop Bit” and “Station Number” according to
the actual parameter when communicating connections. It will succeed in connecting upon
the right selection. If the virtual COM port unexpectedly can not be connected, you can apply
the way of TCPIP connection first since it will be self-configuration under the actual condition
and then make the virtual COM port be connected.
