CARLO GAVAZZI VariFlex3 RVLF Series User Manual

Motor Controllers AC Variable Frequency Drives Type VariFlex
3
RVLF
Frame C & D

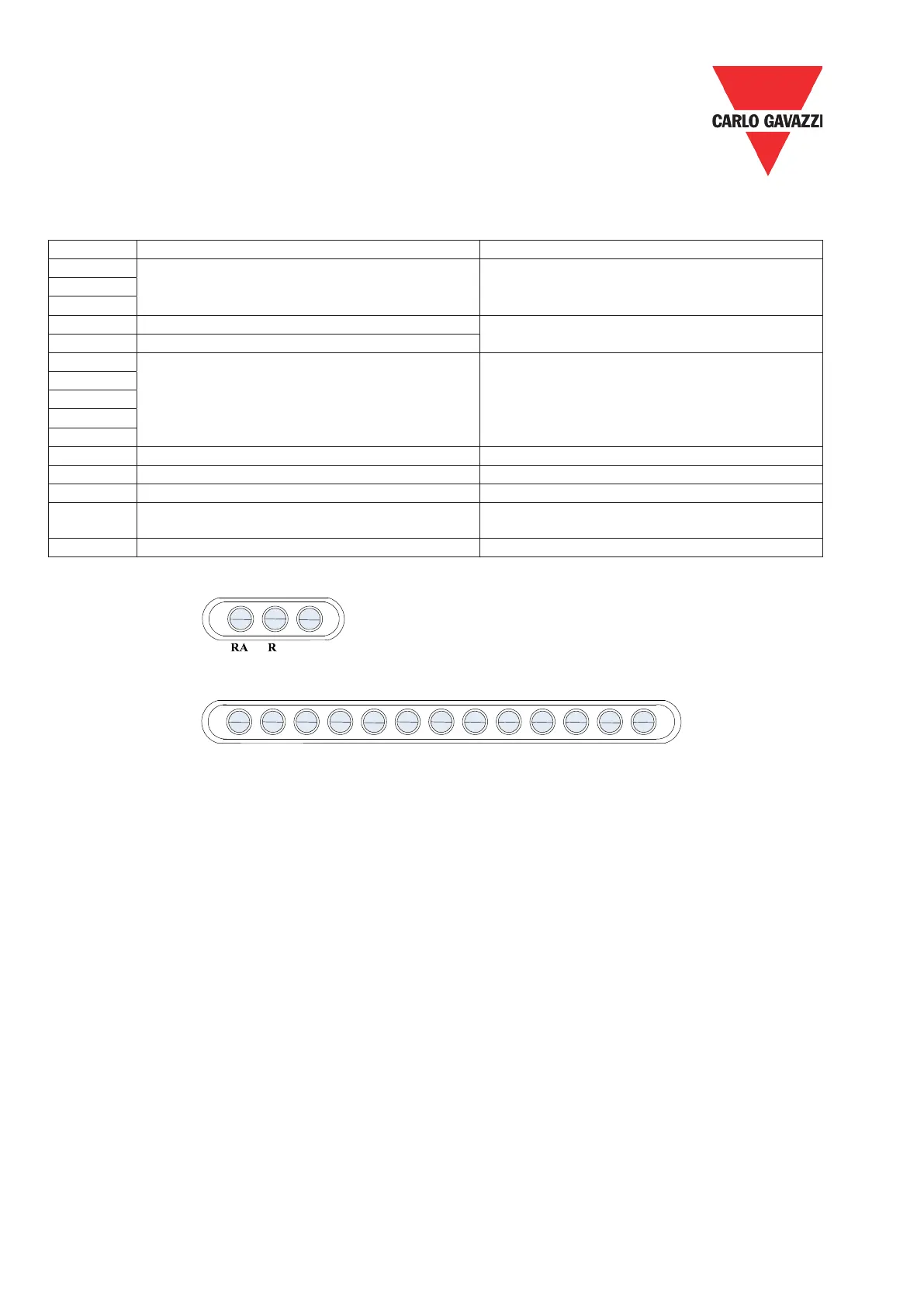

Terminal TM1 Function Description Signal Level
RA
Relay output terminal, Specication: 250VAC/1A
(30VDC/1A) RA-NO; RB-NC; RC-Common 250VAC/ 1A (30VDC/ 1A)RB
RC
+24V S1~S5 (COMMON) PNP
+/-15%, Max output 30mA
SC PNP input: COM&SC needs shorted
S1
Multi-function input terminals (refer to group 3)
24VDC, 4.5mA, optical coupling isolation (Max voltage
30VDC, Input impedance 6kΩ)
S2
S3
S4
S5
10V Built in power for an external speed 10V (Max current 20mA)
AVI/PTC Analog voltage input, specication: 0~10VDC/ 2-10V 0-10V (Input impedance 200kΩ)
ACI Analog current input, specication: 0/4~20mA 0-20mA (Input impedance 499kΩ)
AO
Multi-function analog output terminal. Maximum
output 10VDC/1mA
0-10V(Max current 2mA)
AGND Analog ground terminal
RC
TM1
B
TM2
+24V SC COM S1 S2 S3 S4 S5 10V AVI
PTC
ACI AO AGND
32 Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 13/12/2017
