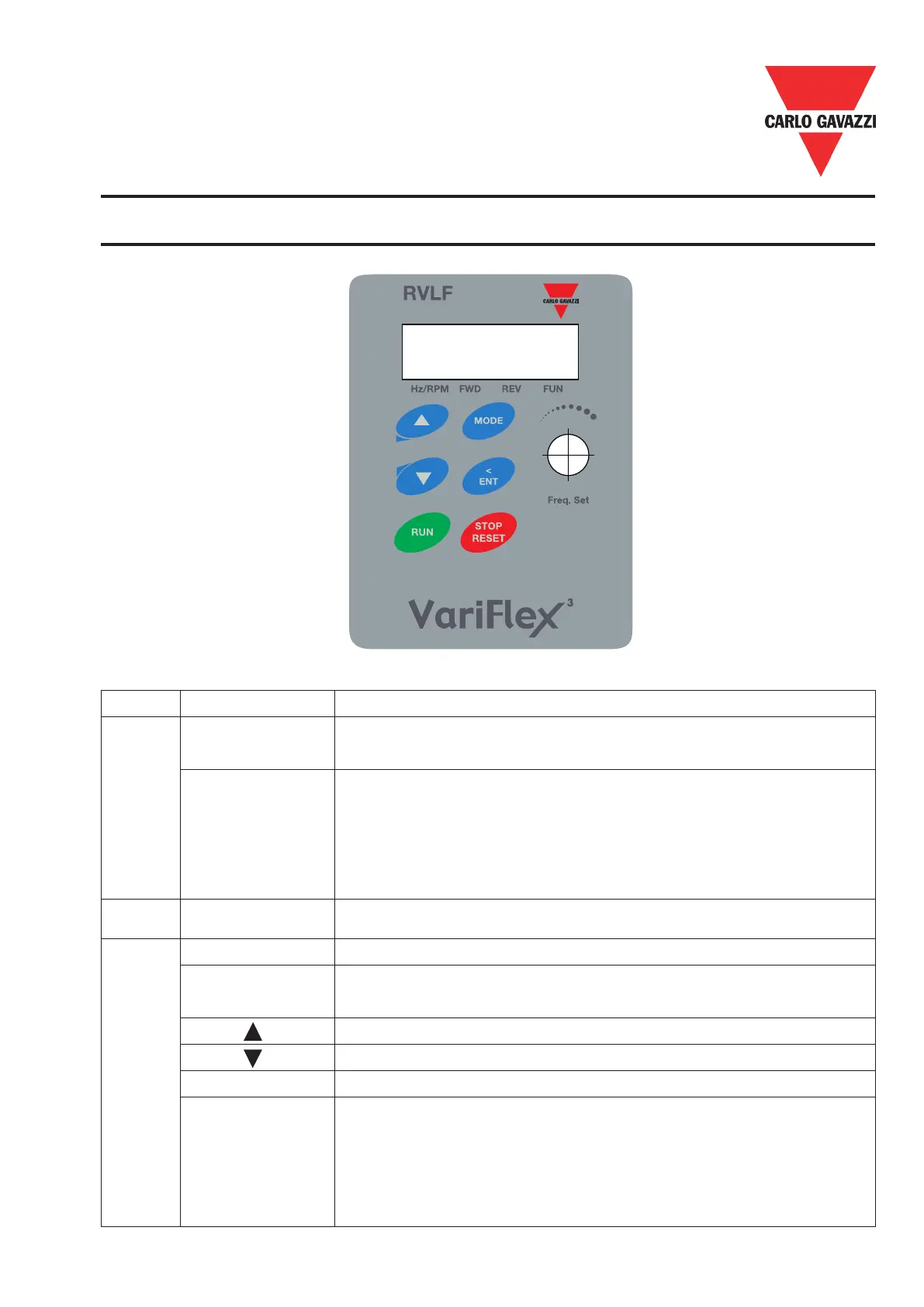

4.1. Keypad Description
4.1.1. Operator Panel Functions
4. Software Index
Type Item Function
Digital
display
& LEDs
Main digital
displays
Frequency display, parameter, voltage, current, temperature,
fault messages.
LED Status
Hz/RPM: ON when the frequency or line speed is displayed.
OFF when the parameters are displayed.
FWD: ON while the inverter is running forward. Flashes while stopped.
REV: ON while the inverter is running reverse. Flashes while stopped.
FUN: ON when the parameters are displayed. OFF when the frequency
is displayed.
Variable
Resistor
FREQ SET Used to set the frequency
Keys On
Keypad
RUN RUN: Run at the set frequency.
STOP/RESET
(Dual function keys)
STOP: Decelerate or coast to stop.
RESET: Use to reset alarms or resettable faults.
Increment parameter number and preset values.
Decrement parameter number and preset values.
MODE Switch between available displays
</ENTER (Dual
function keys, a
short press for
left shift function,
a long press for
ENTER function)
“<” Left Shift:
Used while changing the parameters or parameter values
ENTER:
Used to display the preset value of parameters and for saving the
changed parameter values.
Motor Controllers AC Variable Frequency Drives Type VariFlex
3
RVLF
