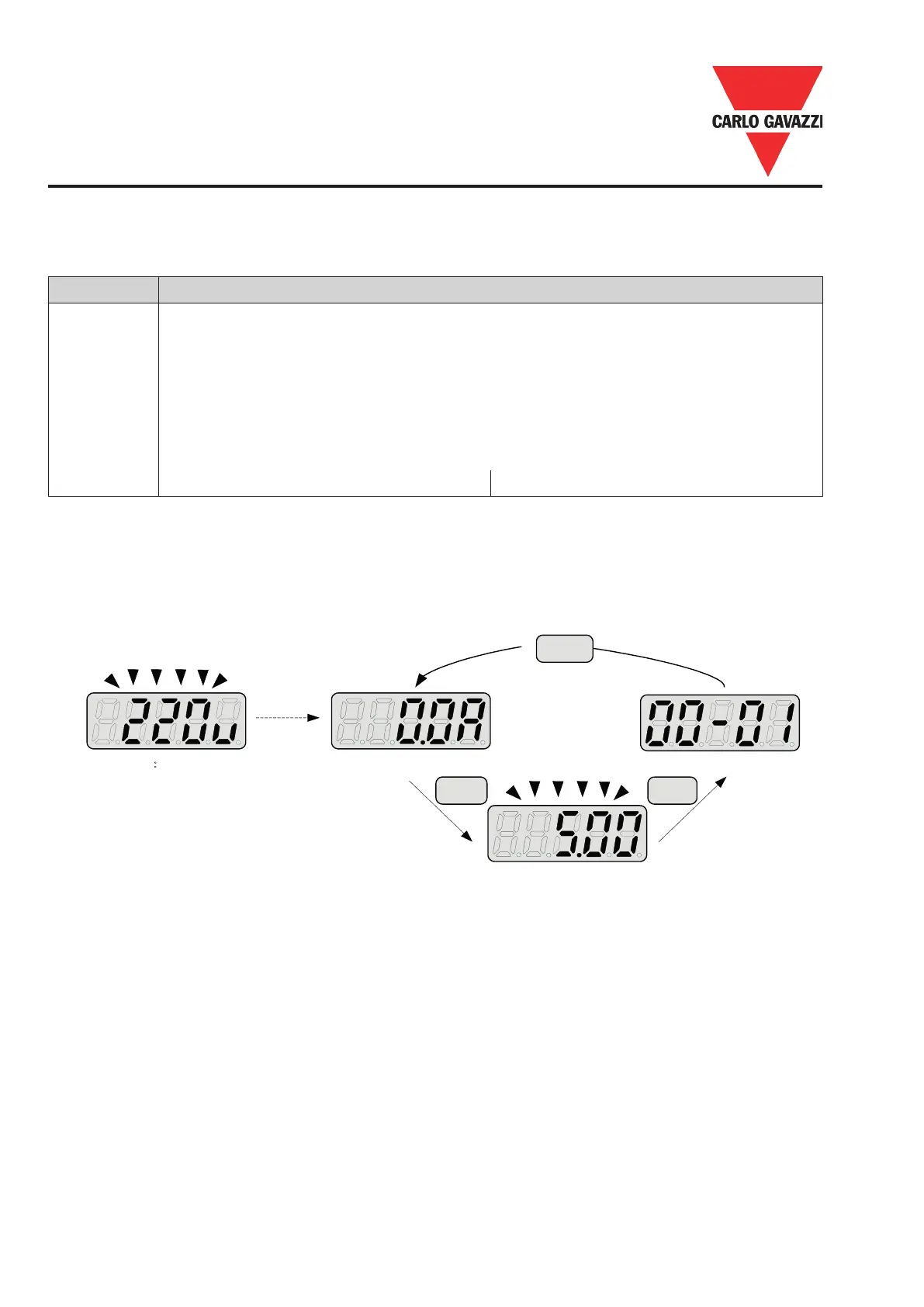

4.1.3 Digital Display Set Up
On power up digital display screens will be as shown below.
User selectable display formats:
The highest bit of 12-00 sets the power on the display, other bits set the selected display from
range 0-7 as listed above.
Example1: Set parameter 12-00=[10000] to obtain display format shown below.
MODE
2sec later
Power supply
frequency
parameter
MODE
MODE
MODE MODE
2sec later
display：
Power supply
Output Current
Set frequency
parameter
12-00 Display Mode
Range
0 0 0 0 0
High Low
Each of the above 5 digits can be set to any of the selections below from 0 to 7
[0]: Disable display [1]: Output current
[2]: Output voltage [3]: DC voltage
[4]: Temperature [5]: PID feedback
[6]: AVI [7]: ACI
40 Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 13/12/2017
