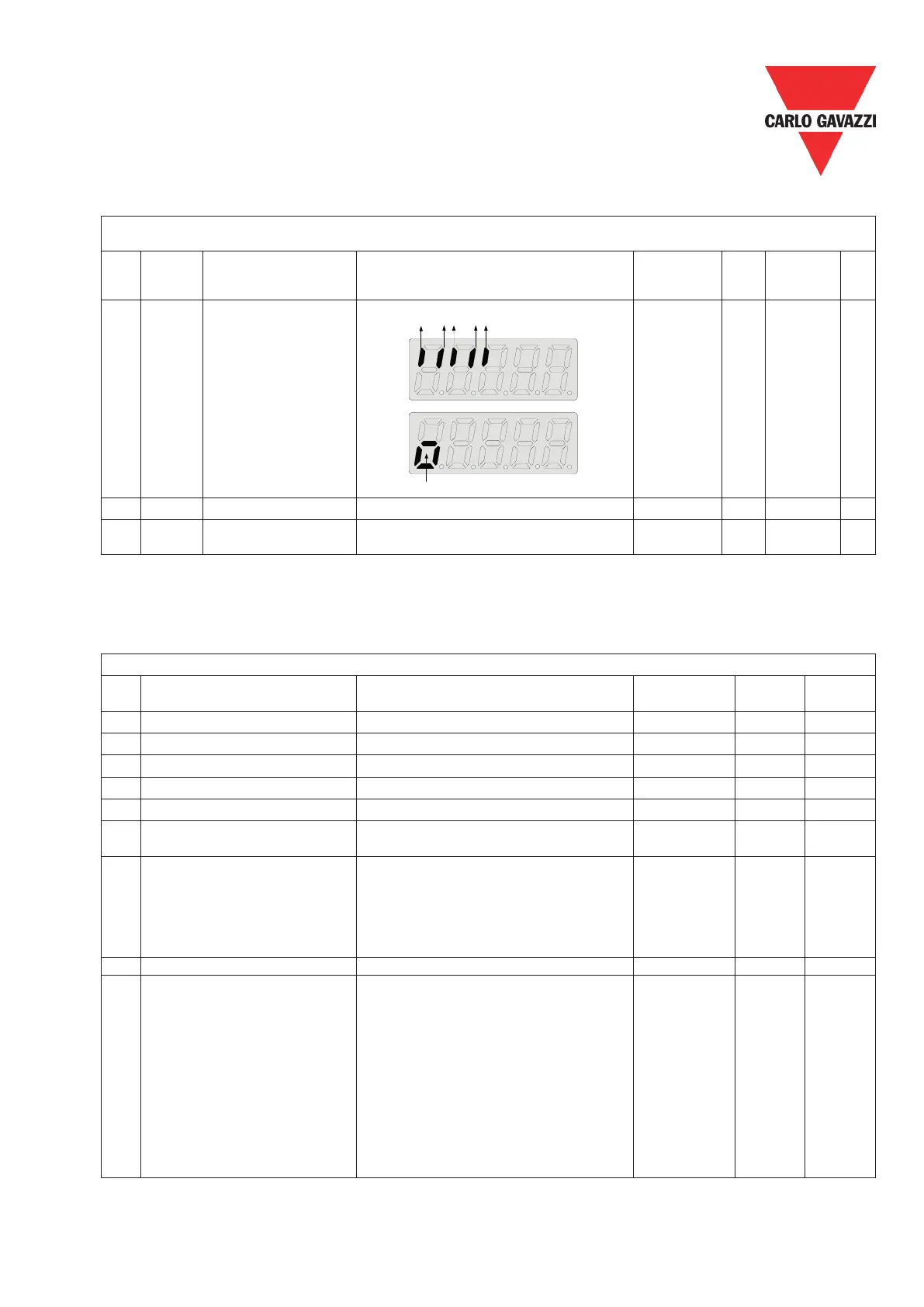

Group 12 Digital display & monitor functions
No.
Register
No.
Description Range
Factory
setting
Unit
Modbus
example
value
Note
12-05
0C05H
Inputs and output logic
status display (S1 to
S5) & RY1
----- - *4
12-06 Output Power --- 0.0 Kw
12-07
Motor Current
Percentage
--- 0 %
S1 S2 S3 S4 S5
RY1
Group 13 Inspection & maintenance functions
No. Description Range
Factory
setting
Unit Note
13-00 Drive horse power code ---- - - *3
13-01 Software version ---- - - *3*4
13-02 Fault log (last 3 faults) ---- - - *3*4
13-03 Accumulated operation time 1 1 0~23 - Hour *3
13-04 Accumulated operation time 1 2 0~65535 ---- Day *3
13-05
Accumulated operation time
mode
0: Time under power
1: Run mode time only
0 - *3
13-06 Parameter lock
0: Enable all functions
1: Preset speeds 05-01~05-08 cannot be
changed
2: All functions cannot be changed except
for preset speeds 05-01~05-08
3: Disable all function
0 -
13-07 Parameter lock code 00000~65535 00000 -
13-08 Reset drive to factory settings
1150: Initialization
(50Hz,220V/380V)
1160: Initialization
(60Hz,220V/380V)
1250: Initialization
(50Hz,230V/400V)
1260: Initialization
(60Hz,230V/460V)
1350: Initialization
(50Hz,220V/415V)
1360: Initialization
(60Hz,230V/400V)
00000 -
Notes:
For built-in EMC lter models, the default setting of 13-08 is “1250”
For without built-in lter models, the default setting of 13-08 is “1360”
