137

06CC Compressor Service Worksheet

Mechanic:____________________ Date: ________________

From Compressor Nameplate:

Model No.: _________________________________________

Serial No.: _________________________________________

Motor No.: _________________________________________

Voltage: ___________________________________________

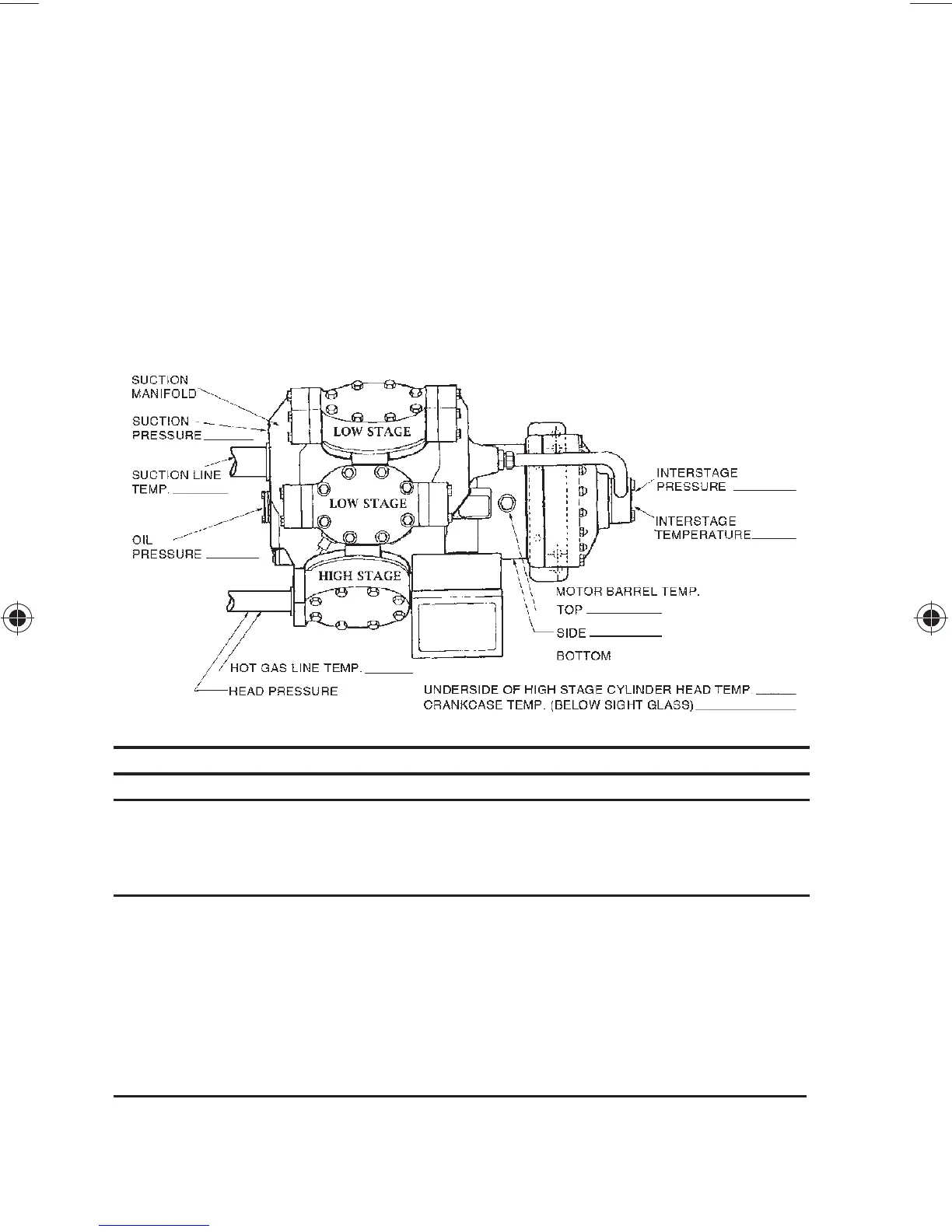

Allow compressor to run for 30 minutes, then obtain the pressures and

body temperature at the locations shown below. Check for proper oil

return in sight glass.

See Compressor Operating Limits, page 17.

Make copies of this worksheet to record data at initial start-up and whenever the compressor is serviced.

COMPRESSOR VOLTAGE/AMP VALUES

PH VOLTAGE CURRENT

C-R:___________________ C:___________________

1φ C-S:___________________ R:___________________

R-S:___________________ S:___________________

-L

:_________________ L

:__________________

-L

:_________________ L

:__________________

-L

:_________________ L

:__________________

3φ PART WINDING

-L

:_________________ L

:__________________

-L

:_________________ L

:__________________

-L

:_________________ L

:__________________

LEGEND: C - Common R - Run S - Start
