5. Install the OPSS sensor into the Sensor Block. Be sure
the copper washer is in-place. Tighten the sensor's 1" hex
nut securely to the sensor block (torque 45-55 ft/lbs).
6. Installation and Wiring for OPSS (06D/E/CC/M)
• Install the coupling ring end of the OPSS electrical unit
to the sensor by hand and secure tightly.
• The electrical connections for the OPSS electrical unit
need to be carried out according to the proposal in the
wiring diagram.

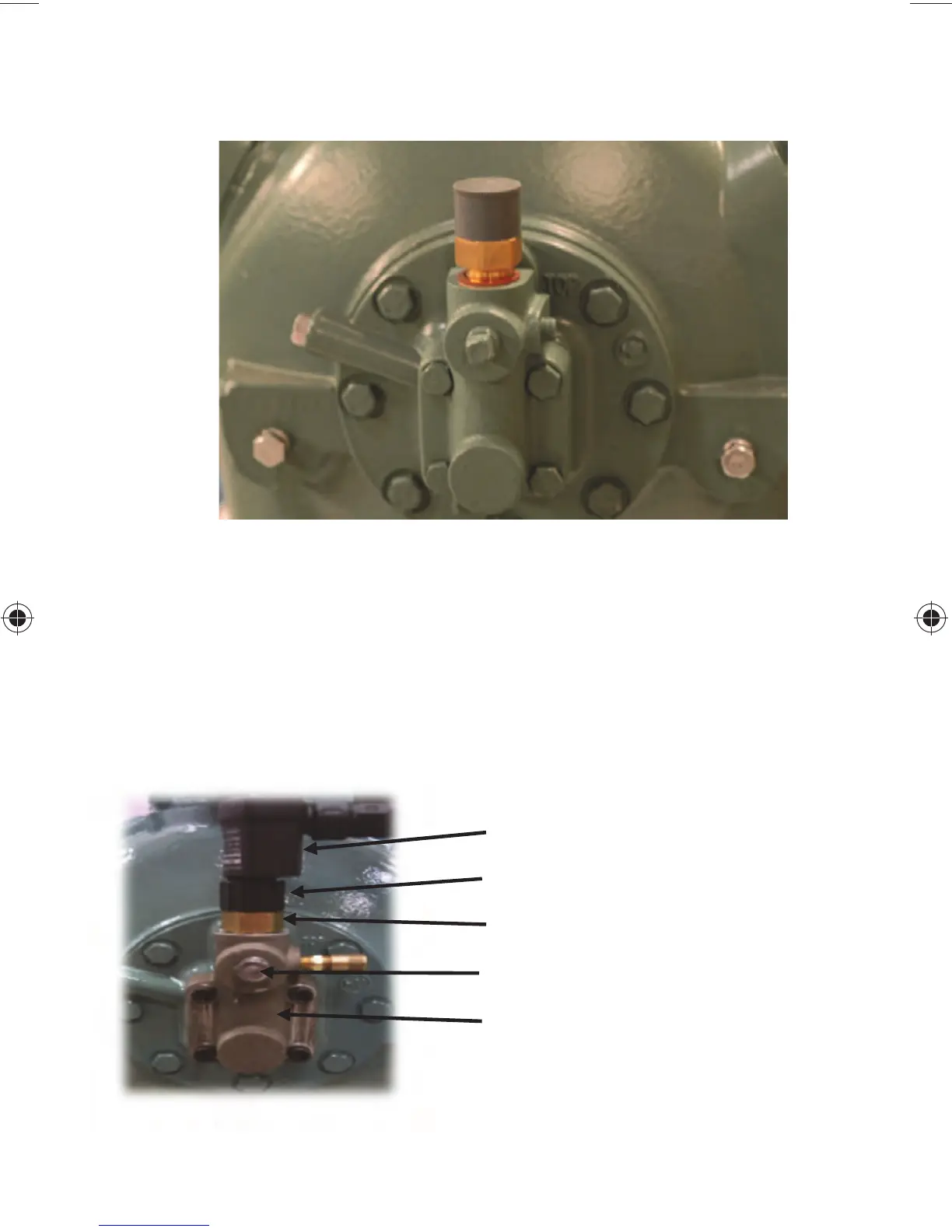

Fig. 20 — OPSS Sensor Installed
OPSS Sensor installed (Part# 06DA509571)
Coupling Connection Ring (secure by hand)
Oil Pump pressure port (optional monitoring)
Sensor Block
OPSS Electronic Unit (Part# 06DA509570)
