4.11 — Electrical Hook-Up
Consult wiring diagram located inside compressor terminal
box cover and reference diagrams shown below for wiring
hook-up connection locations. See 3.29, page 96 for Termi-
nal Box Packages.
06D & 06CC (17-37 Cfm) COMPRESSORS
06D
Single
Phase
06D
Three
Phase
* 3rd overload required on some compressors. See 4.9 06D compressor overloads.

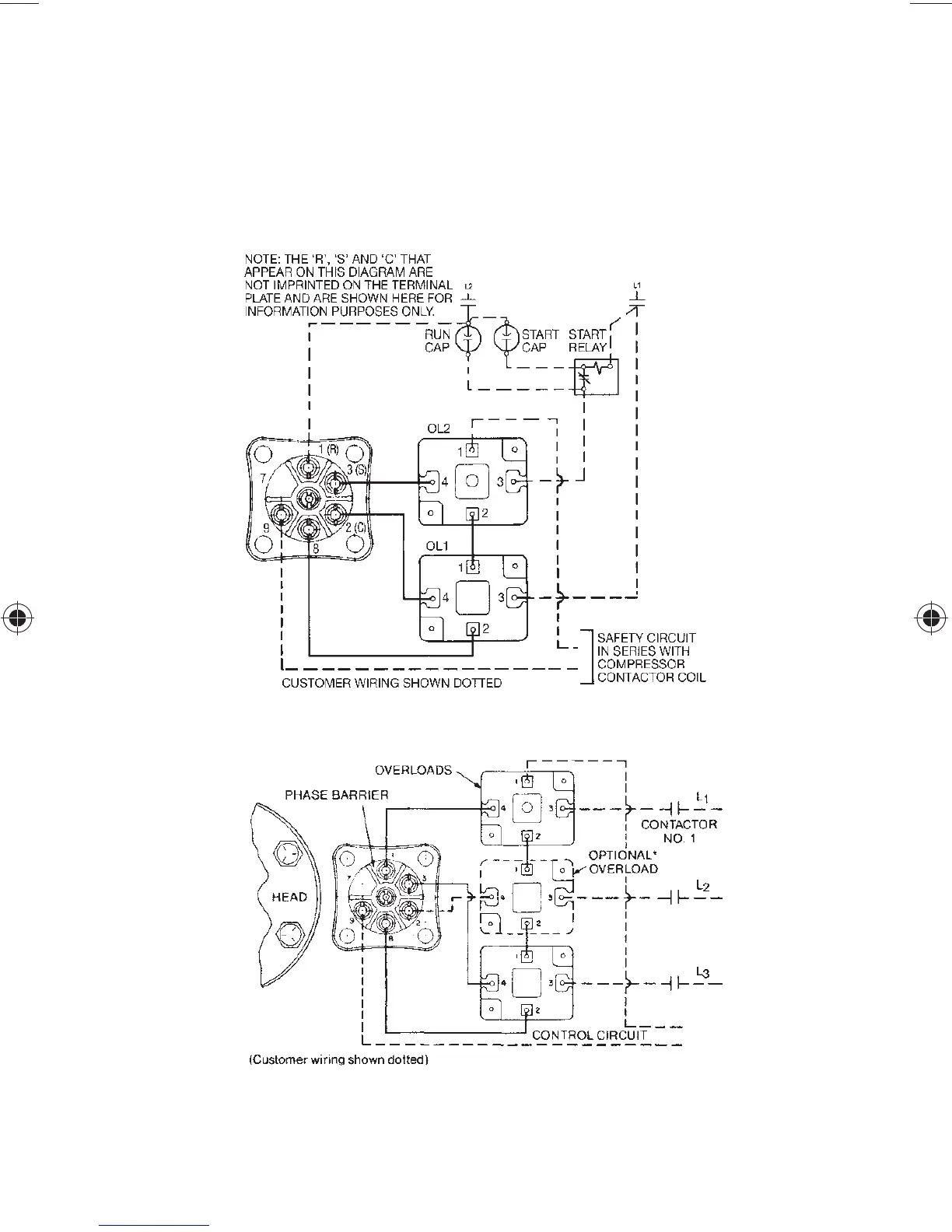

Fig. 24 — Three Phase Electromechanical Overcurrent
Protection
Fig. 23 — Single Phase Electromechanical Overcurrent
Protection
