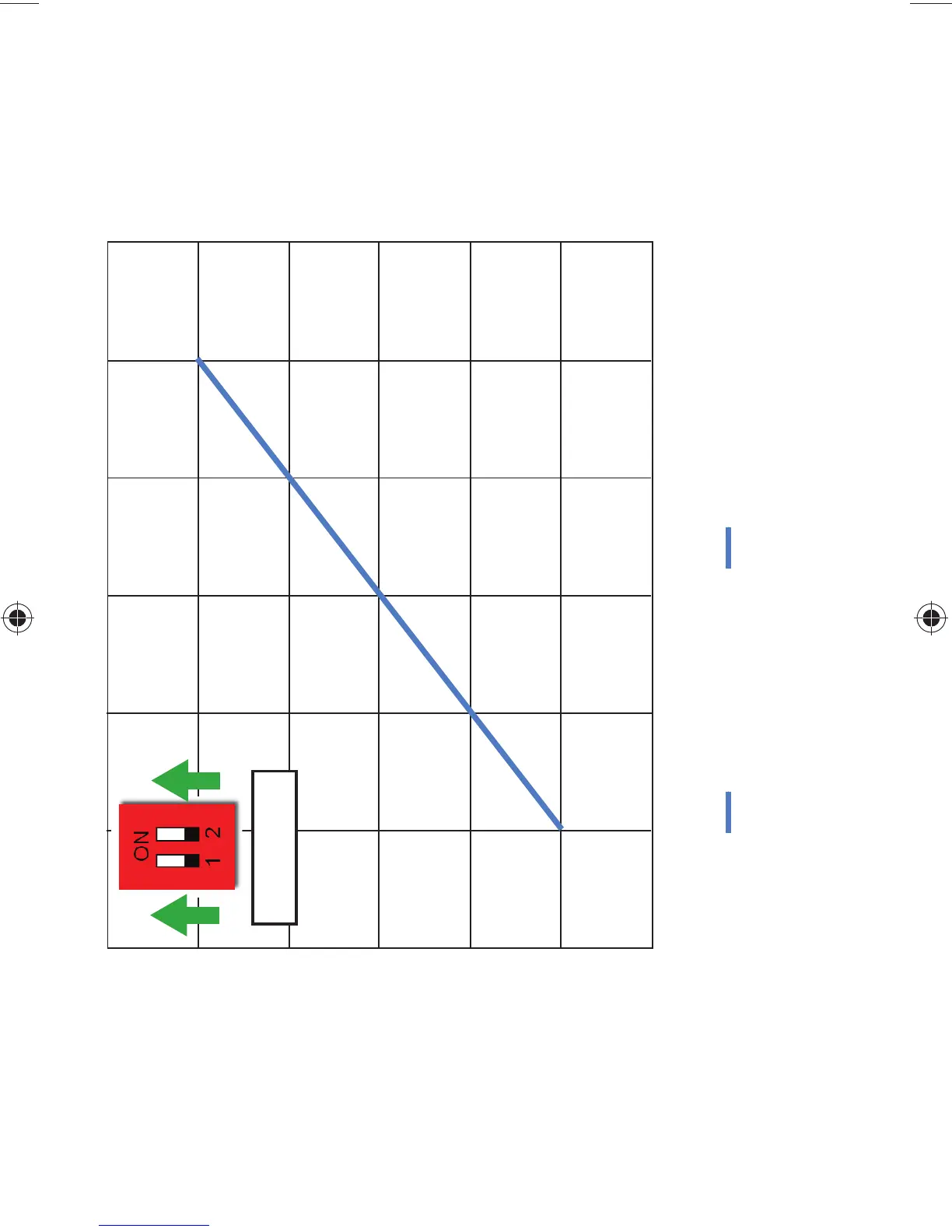

Fig. 42 — System/Rack Controller Curve
120% 100%
80% 60% 40% 20%
0%
36 30 24 18 12 6 0
0 1 2 3 4 5 6
Compressor Capacity
PWM Valve Open (sec)
Smart Controller Input Signal from Rack Controller (VDC)
Smart Controller DIP
Switch Configuration
Compressor Capacity PWM Valve Time Open (sec)
(coil energized)
