36
REASSEMBLY
1. If reassembling existing components, do not interchange
valves or turn them over. They must be reassembled in
their original position. Install the suction valve position-
ing springs (06CC size 16 to 37 Cfm and 06D compres-
sors only) on dowel pins. Assemble positioning springs
with spring ends bearing against cylinder deck (Fig. 4),
spring bow upward.
2. Install suction valve on dowel pins as follows:
a. 06D Compressors: Install suction valves on top of
positioning springs as mentioned in Step 1 above.
b. 06E Compressors: If compressor uses a suction valve
and a backer valve (looks like a 1/2 a suction valve),
backer valve must be installed before installing full
size suction valve (Fig. 5).
DOWEL
HOLES
DOWEL
HOLES
DOWELS IN CYLINDER
DECK FOR SUCTION
VALVE AND BACKER
SUCTION
VALVE
BACKER
PLACE AGAINST
CYLINDER DECK
UNDER SUCTION
VALVE
TOP VIEW
OF PISTON
IN CYLINDER

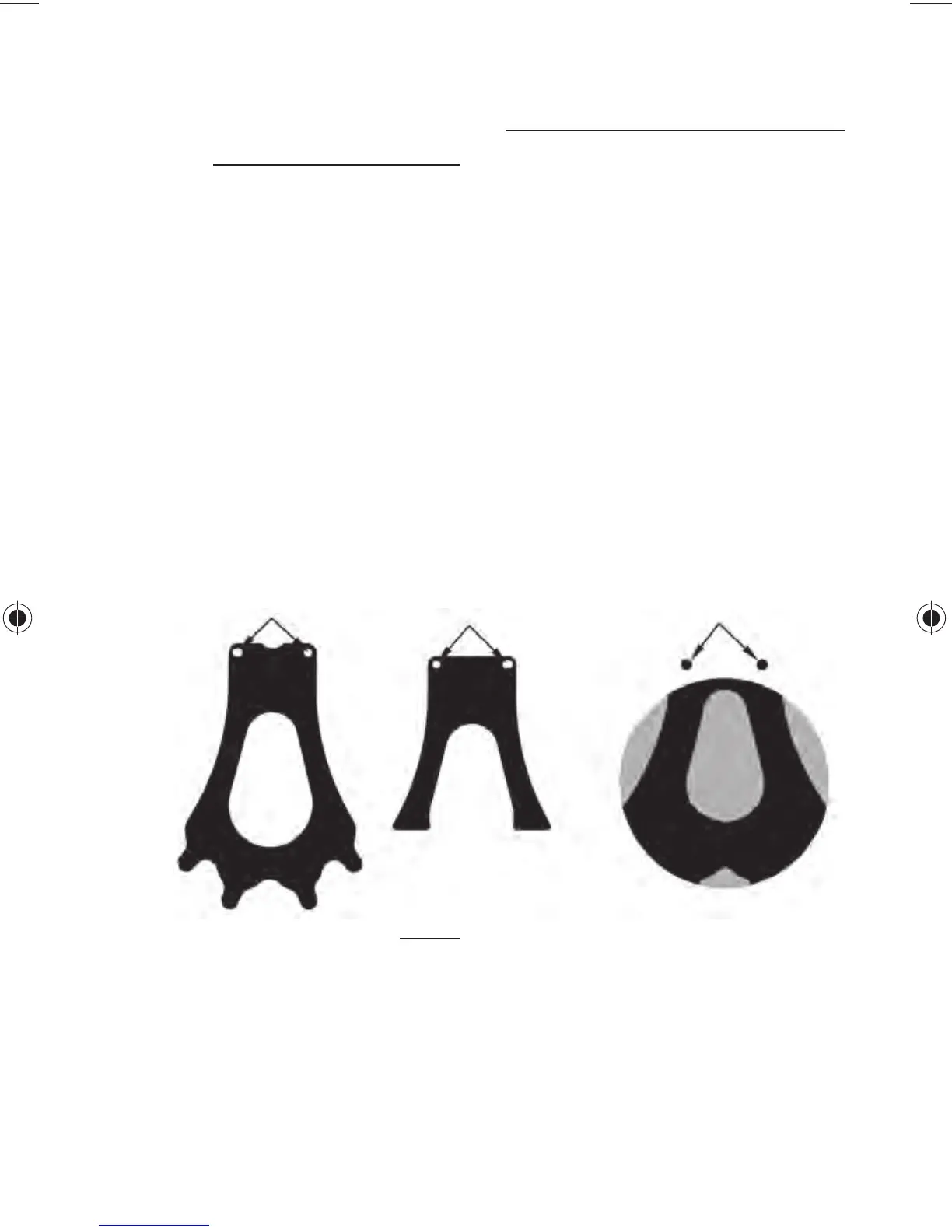

Fig. 5 — Piston, Suction Valve, and
Backer Positions (06E)
