78
a continuous 120 seconds or a time integrated low delta
P for 120 seconds, the OPSS output contacts will open
and shut down the compressor and indicate the status per
the LED indicator (See LED Status Table).
2.) Oil Sensor Block Installation (06D/E/CC)
1. Remove cover plate bolts, cover plate and gasket from
bearing head. (During reassembly be sure that spring and
recess cup are in place and do not re-use factory installed
gasket.)
2. Install the 1/4-in. NPT O-ring seal fitting into the high
side oil pump pressure port on the compressor as shown
(Torque to 20-25 ft/lbs):
3. The sensor block gasket (P/N 06DA504473) is installed
between the bearing head and sensor block with the bead
side facing you. Lightly oil the gasket. Make sure the
bearing head surface is clean and free from any debris.

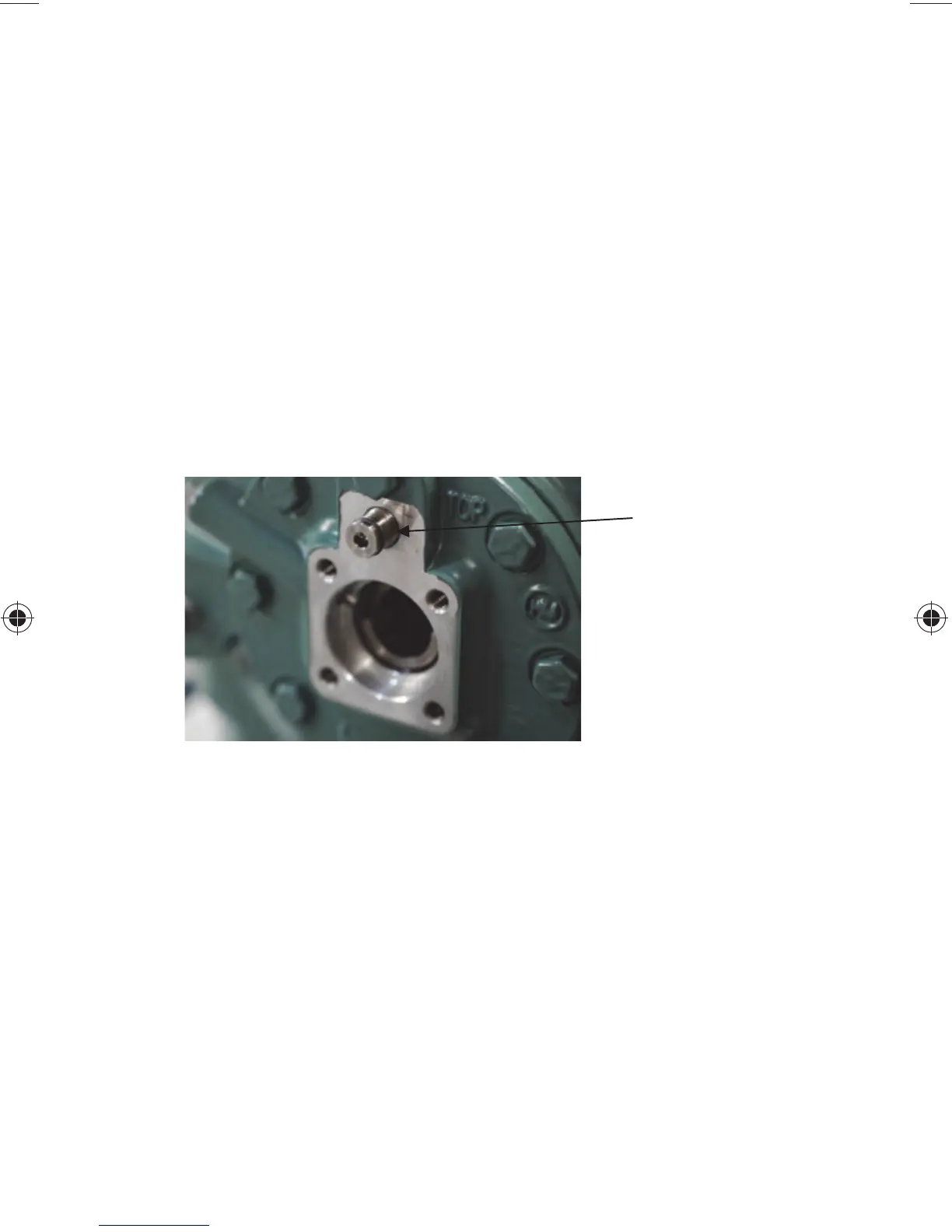

Install 1/4" NPT
O-ring fitting.
(P/N 06EA407204)
Fig. 17 — Cover Plate Removed
