4.1 Display Screens
*Up to five items may be displayed at one time. Press the ▼ key to view additional items, or the ▲
key to scroll back up the list. “END OF LIST” will be displayed after the last item in the list.
START/STOP DIESEL
Viewing Menu Soft Key
INTELLISET
PRETRIP
HOUR
METER
UNIT
DATA
Selections
Press Menu Key to Scroll

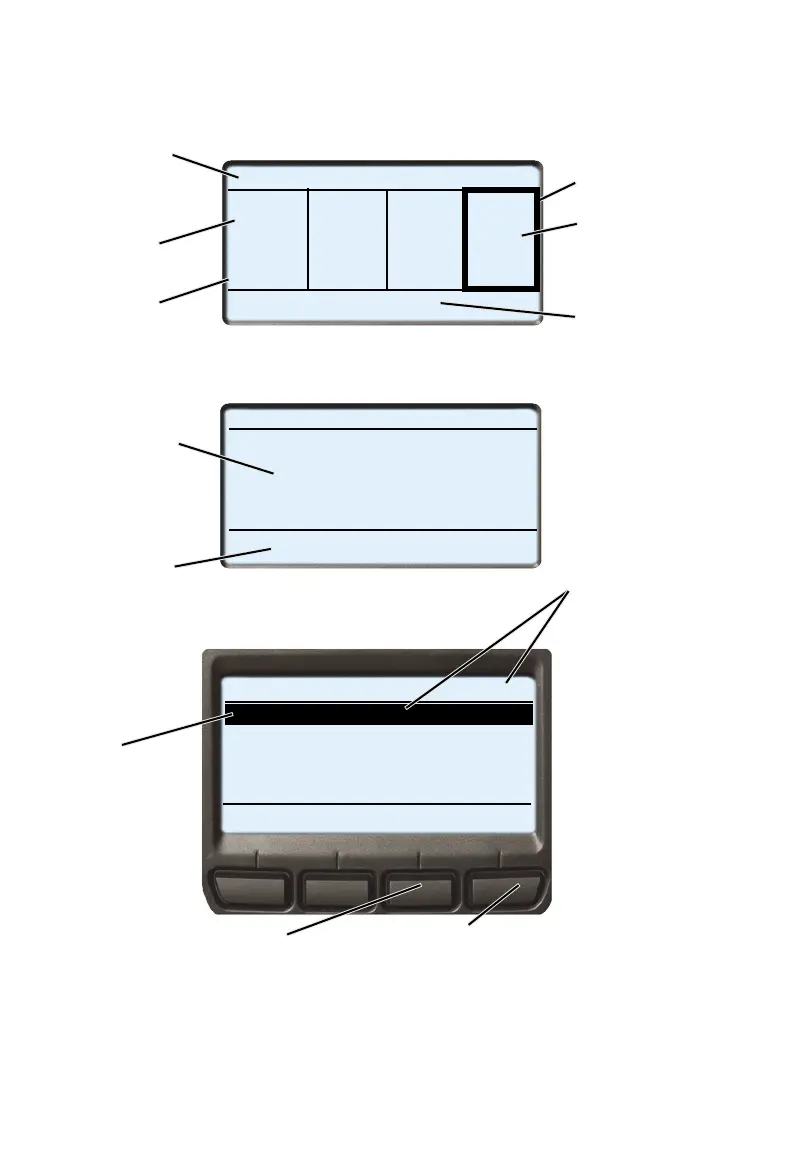

SAMPLE SCREEN (1 OF 3)
DISPLAYED ITEM #1
DISPLAYED ITEM #2
DISPLAYED ITEM #3
END OF LIST
BACK
EXIT
Split Screen
Typical Menu Screen
Status Bar
Box Temperature
(row)
Setpoint (row)
Compartment
Highlight Box
Operator
Message
Soft Key
Descriptions
Highlight -White
letters on black
background
BACK Key - Used to return to
the previous screen
EXIT Key - Used to return
to the default screen
START/STOP DIESEL
BOX
SETPOINT
STATUS OK
o
F
TEMP
-9.9
COOL
-10
28.1 36.2
28
COOL COOL
36
Operating
Mode (row)
Message
Center
Position of the
highlighted item
and total num-
ber of items dis-
played in the
list*
