56

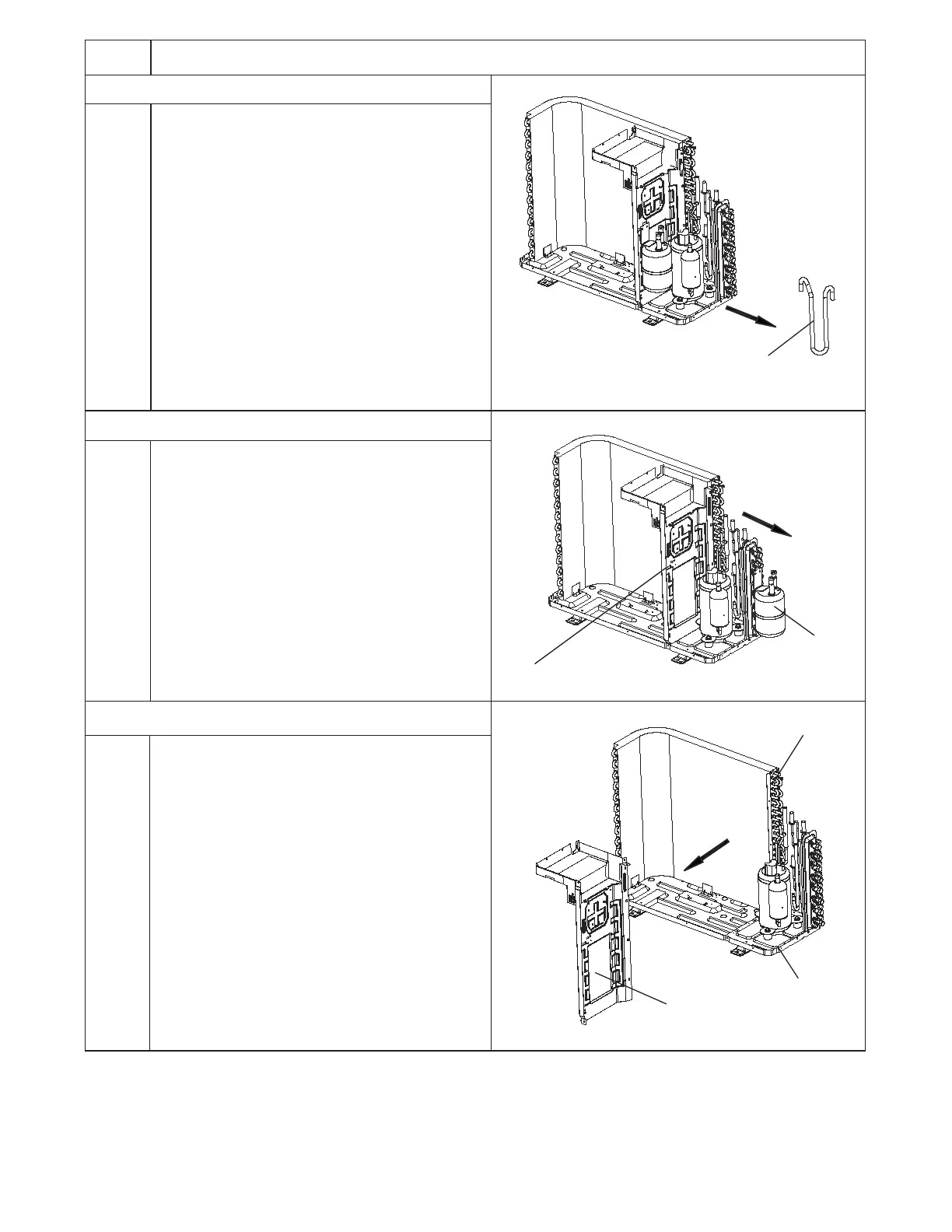

Steps Procedure
Cut the suction pipe at the receiver and the
compressor. Remove suction pipe from unit.
Remove the screws retaining the liquid receiver to the
compressor partition and remove the reciever from
the unit.
Remove the screws retaining the compressor partition
to the condenser tube sheet and the base pan. Remove
partition.
15.Remove liquid receiver
16.Remove the compressor partition
14.Remove suction pipe assembly
Suction Pipe
Liquid Receiver
Compressor
Partition
Compressor
Partition
Compressor
Tube Sheet
Base Pan
To Next Page
