INTRODUCTION
The Horizontal Discharge Outdoor units are R-410A condensing units
designed with application flexibility in mind. These units have a max
total piping length up to 213 ft (65 m) and a maximum piping lift of up to
98 ft (30m).
The inverter driven compressor is designed to run at various input power
frequencies (Hz) which controls the compressor’s motor speed.
ACCESSORIES
The system is shipped with the following accessories. Use all of the
installation parts and accessories to install the system. Improper
installation may result in water leakage, electrical shock and fire, or cause
the equipment to fail. Keep the installation manual in a safe place and do
not discard any other accessories until the installation work has been
completed.
Table 1 —Accessories

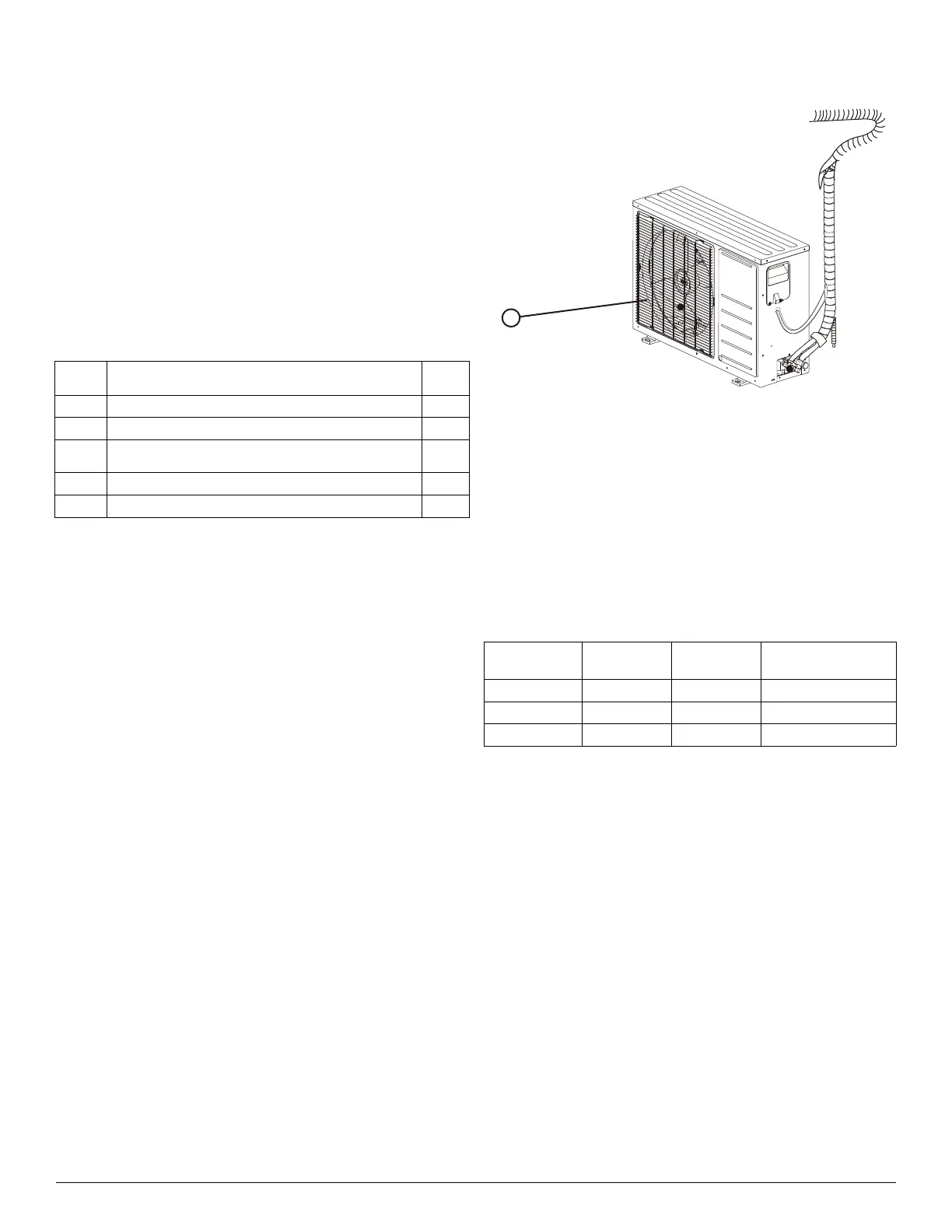

Fig. 3 —Parts List
NOTES:
- If the outdoor unit is higher than the indoor unit, prevent rain
from flowing into the indoor unit along the connection pipe by
making a downward arc in the connection pipe before it enters
the wall to the indoor unit. This ensures that rain drips from
the connection pipe before it enters the wall.
- Piping and the interconnecting wiring are field supplied.
- The illustration above is only a sketch. Different models may be
slightly different.
Table 2 lists the units covered in this manual.
Table 2 — Unit Sizes
PART
NO.
PART NAME QTY.
1 Outdoor unit 1
- Literature package including installation instructions 1
-
Grommet to secure the outdoor unit (helps with
vibration prevention during unit operation)
4
-Drain Joint 1
-Drain Hose 1
SYSTEM TONS kBTUh
VOLTAGE -
PHASE
OUTDOOR MODEL
3 36,000 208/230 - 1 DLCLRCH36AAK
4 48,000 208/230 - 1 DLCLRCH48AAK
5 58, 000 208/230 - 1 DLCLRCH58AAK
