CAS CI-170A - Installation and Connection; Load Cell Connection Procedure

13
INSTALLATION & CONNECTION

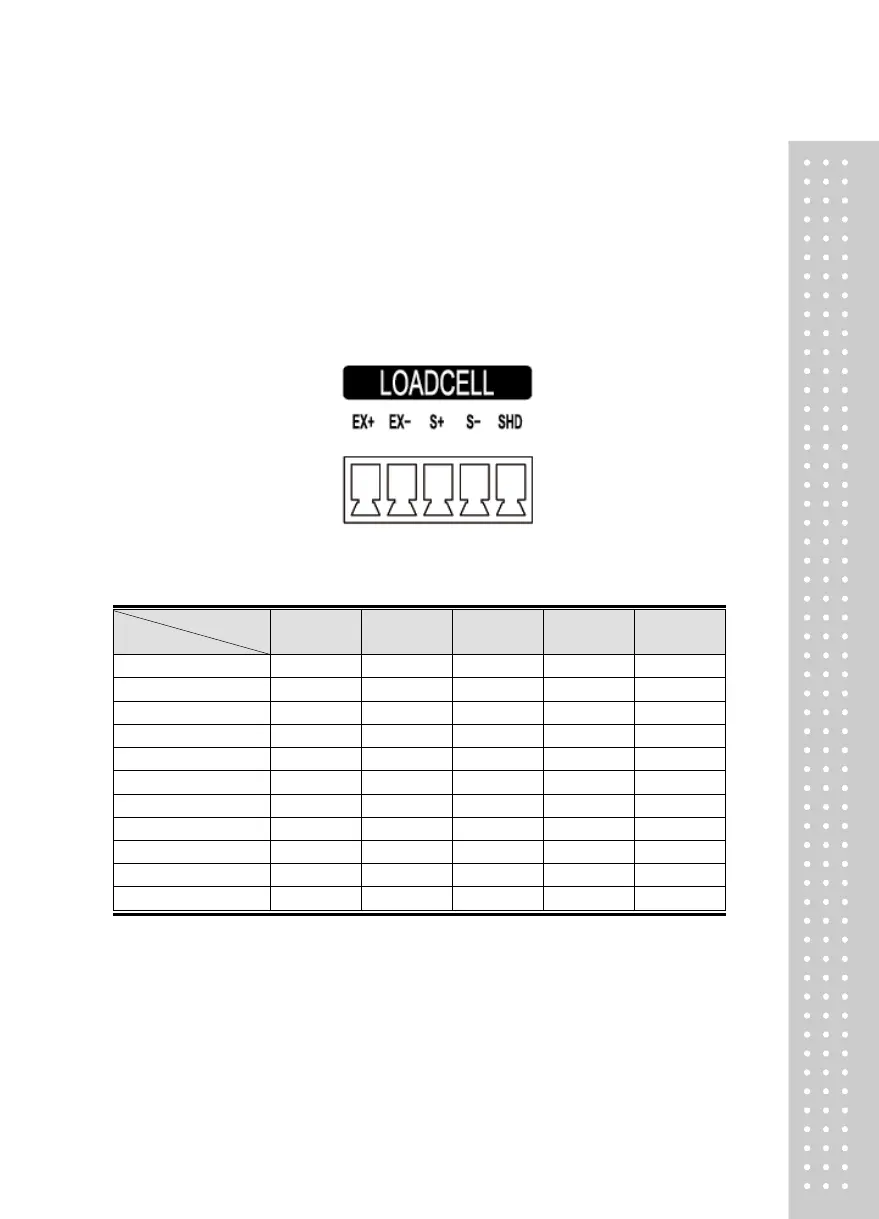

(1) Load Cell Connection
Pin 1: Excitation voltage+
Pin 2: Excitation voltage-
Pin 3: Sense voltage+
Pin 4: Sense voltage-
Pin 5: Shield
■ Connecting method
▶Ref. Each L/C
manufacturer's or model's
wire color could be
different. In that case,
please note the following
diagram.
■ Manufacturer's wire colors
Connector
Company
Pin 1
(EX+)
Pin 2
(EX-)
Pin 3
(SIG+)
Pin 4
(SIG-)
Pin 5
(GND)
CAS
RED
WHITE
GREEN
BLUE
CASE
KYOWA
RED
BLACK
GREEN
WHITE
CASE
INTERFACE
RED
BLACK
GREEN
WHITE
CASE
P.T
RED
BLACK
GREEN
WHITE
CASE
BLS
GREEN
BLACK
WHITE
RED
YELLOW
SHOWA
RED
BLUE
WHITE
BLACK
CASE
SHINKOH
RED
BLACK
GREEN
WHITE
CASE
TMI
RED
WHITE
GREEN
BLUE
YELLOW
TML
RED
BLACK
WHITE
GREEN
CASE
TFAC
RED
BLUE
WHITE
BLACK
YELLOW
HUNTLEIGH
GREEN
BLACK
RED
WHITE
CASE
