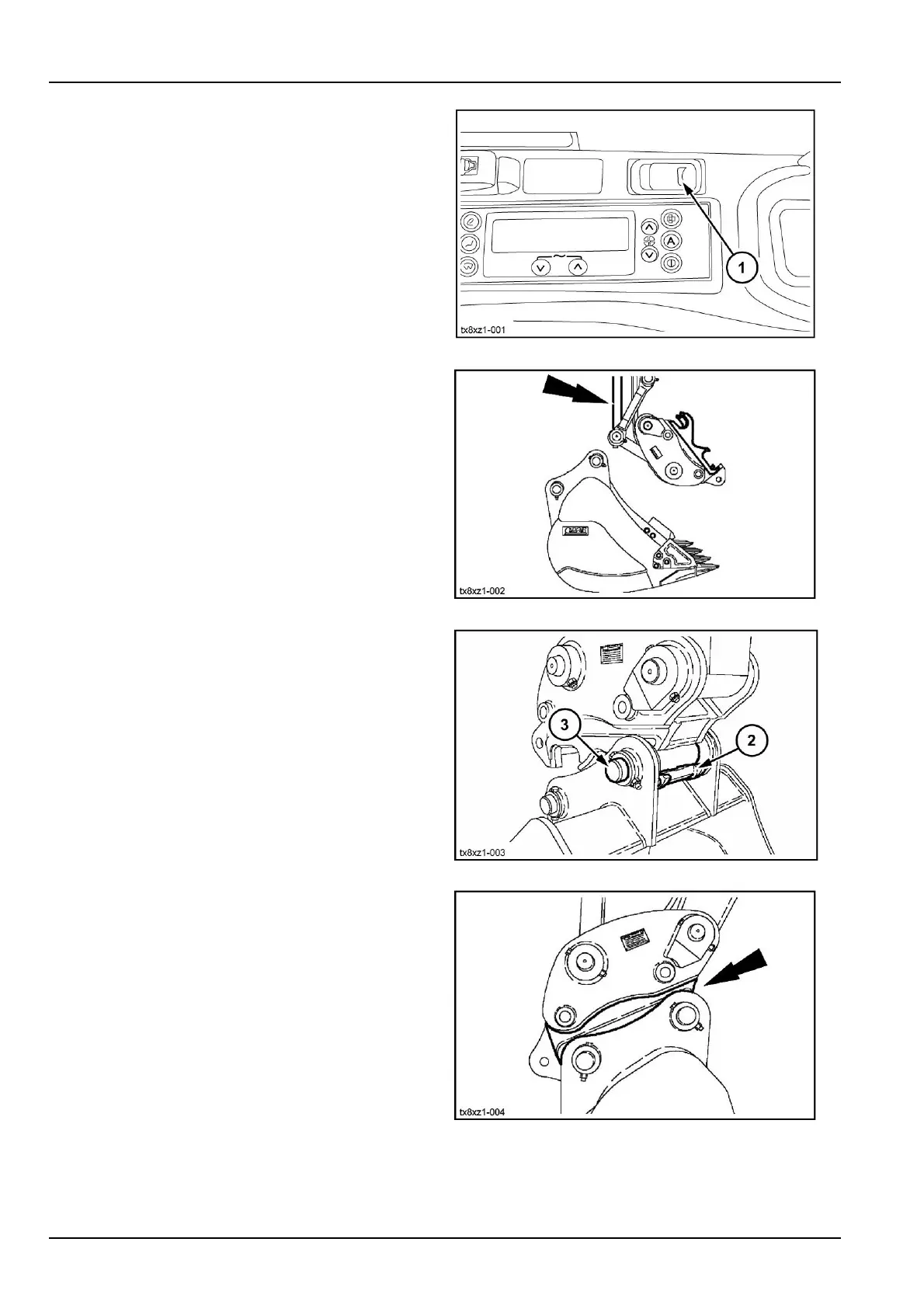

4-OPERATINGINSTRUCTIONS
2.Placetheswitch(1)inunlockingposition.Theaudible
alarmdevicewillsound.(Refertopage3-56).
TX8XZ1-0012
3.Operatethearmandbucketcontrolssothatthearmis
practicallyvertical,slopingslightlytowardsthecab,to
releasethesafetydevice.Extendthebucketcylinder
rodcompletelyandmaintainthehydraulicpressureso
thatthelatchinghookretracts.
TX8XZ1-002A3
4.Operatethearmcontrolleversoastobringthequick
couplerhook(2)aroundthetoolpin(3).
TX8XZ1-003A4
5.Operatethebucketcontrolleversothatthepiniscom-
pletelyengagedinthequickcouplerhook.
TX8XZ1-004A5
