4-OPERATINGINSTRUCTIONS

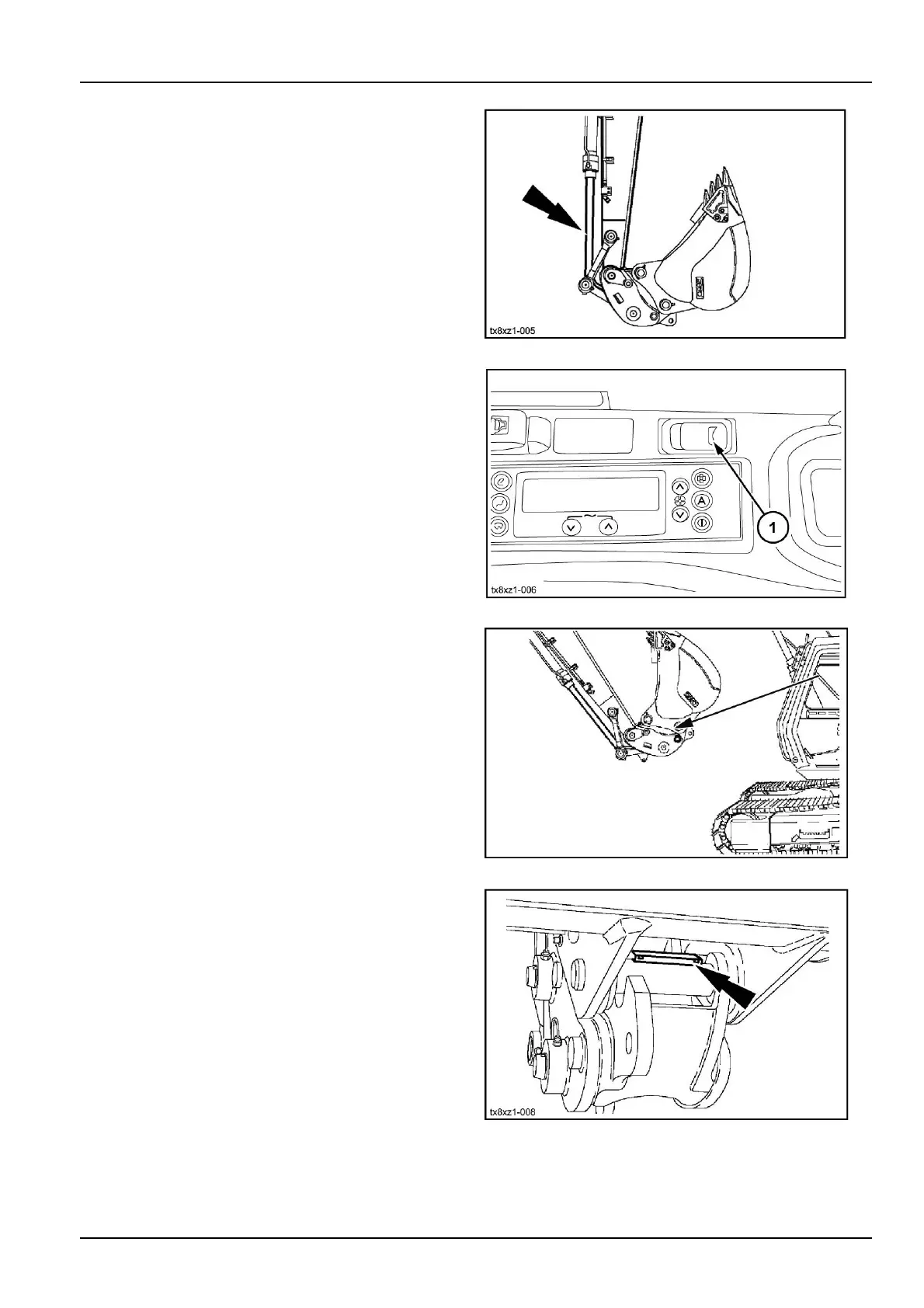

6.Raisethearmandoperatethebucketcontroltoextend

thebucketcylinderrodcompletely.

TX8XZ1-005A6

7.Placetheswitch(1)inthelockedposition.Theaudible

alarmdevicewillceasefunctioning.(Refertopage

3-56).

TX8XZ1-0067

8.Maintainthepressureinthebucketcylindertoallow

thelatchinghooktoclose.Raisetheattachmentso

youcanseethebucketpin.

CT02C209TBP18

9.Makesureyoucanseethatthebucketpiniscorrectly

engagedinthelatchinghook.

NOTE:Ifitisnotpossibletomakeavisualchecksitting

intheoperator'sseat,getdownfromthemachineand

makesurethatthetooliscorrectlyconnectedwiththe

safetydeviceengaged.

TX8XZ1-008A9

4-25
