4-OPERATINGINSTRUCTIONS

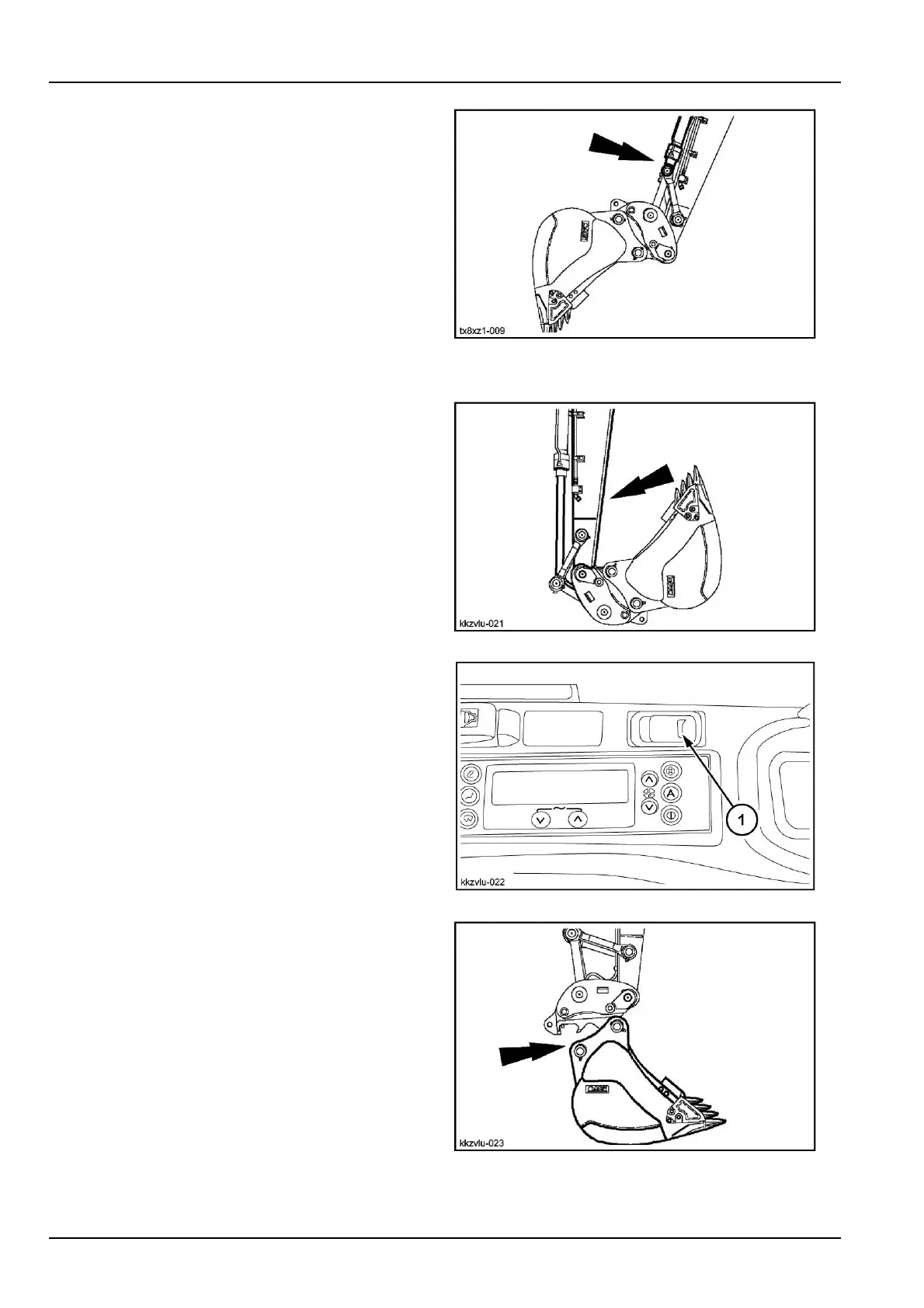

10.Operatethebucketcontroltoretractthecylinderrod
andallowthesafetydevicetoengage.
TX8XZ1-009A10
Disassembly
1.Operatethearmandbucketcontrolssothatthearmis
practicallyvertical,slopingslightlytowardsthecab,to
releasethesafetydevice.Extendthebucketcylinder
rodcompletelyandmaintainthehydraulicpressureso
thatthelatchinghookretracts.
KKZVLU-021A11
2.Placetheswitch(1)inunlockingposition.Theaudible
alarmdevicewillsound.(Refertopage3-56).
KKZVLU-02212
3.Operatethebucketcontroltolaythebucketsafelyon
at,levelground.
KKZVLU-023A13
4-26
