CEL-712 Microdust Pro Real-time Dust Monitor
17 Casella Measurement
3.4 How to follow the operating instructions
Most of the operating instructions in this User Manual are shown using
sequences of screen images. Arrows and numbers explain the sequence of steps
that you must perform to complete the operation described by the images.
When an arrow points to indicate a screen icon, use the navigation keys to
select that icon. Selected icons are highlighted by a grey border.

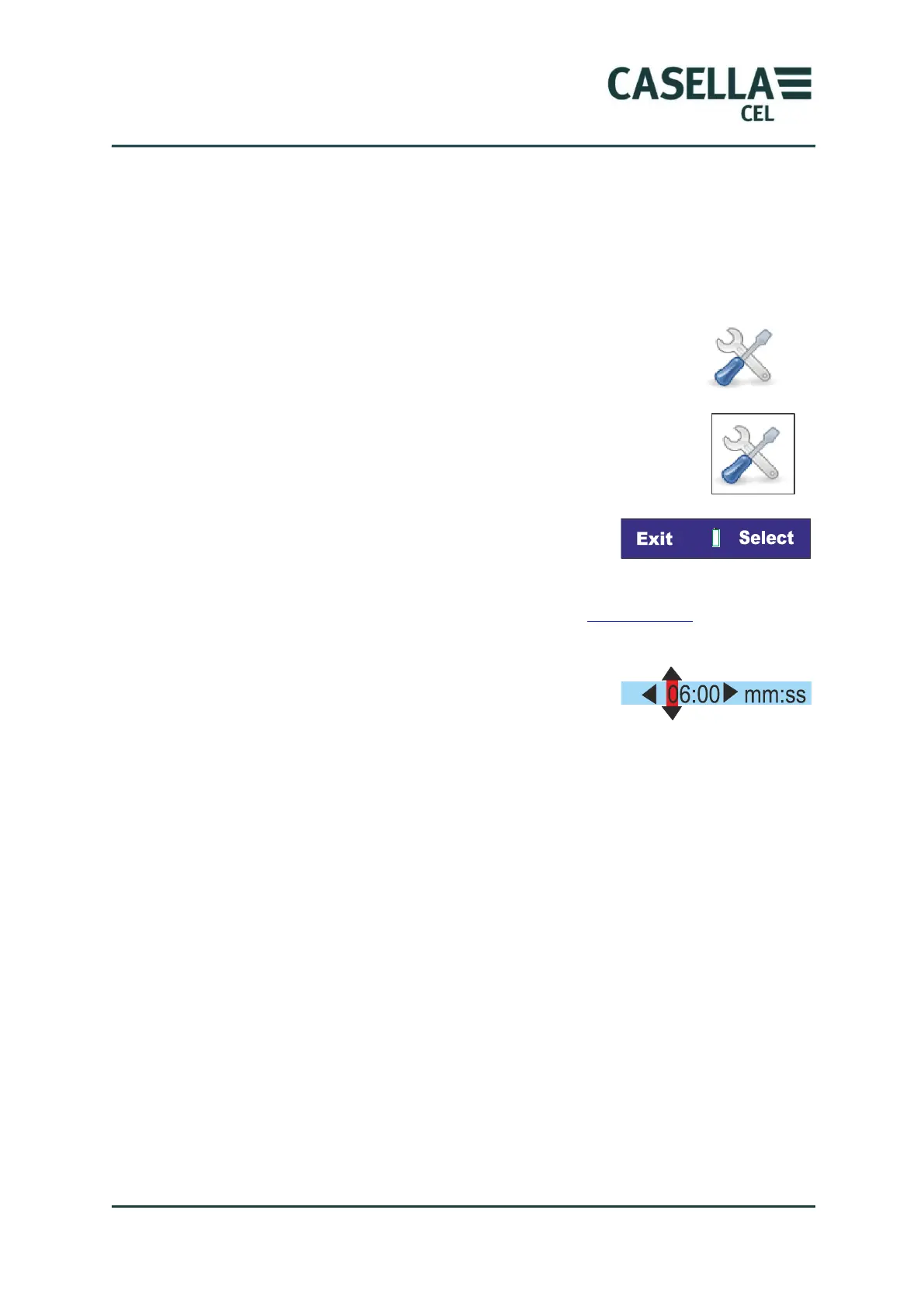

This example shows the Settings icon when it is not selected:-
And the same icon when it is selected:-
The bottom of the screen always shows a wide
coloured bar with two instructions. Press the soft
key that is below one of the instructions to perform that instruction. The colour
of the bar indicates the purpose of the screen. See Colour coding on page 5 for
an explanation of the screen colours used.
If the instructions require you to change a value, use
the navigation keys to select the character in the
value, and to change the selected value.
A full instruction sequence might require you to repeat selections and soft key
presses multiple times.
3.5 Switch-on
Press the ON/OFF key to switch the Microdust Pro instrument on.
After you switch the instrument on, it shows an introduction screen for a short
period. This screen includes the following information about the instrument:
The instrument’s serial number.
The firmware version that is operating inside the instrument.
Two lines of user-defined details, for example the user’s name and
telephone number. You must use the Casella Insight Data Management
Software to set these details and transfer them to the instrument – you
cannot set them by using the instrument’s controls.
Write down these details and save them in a safe location. You must give this
information to the service agent if the instrument develops a fault.
