Figure 2

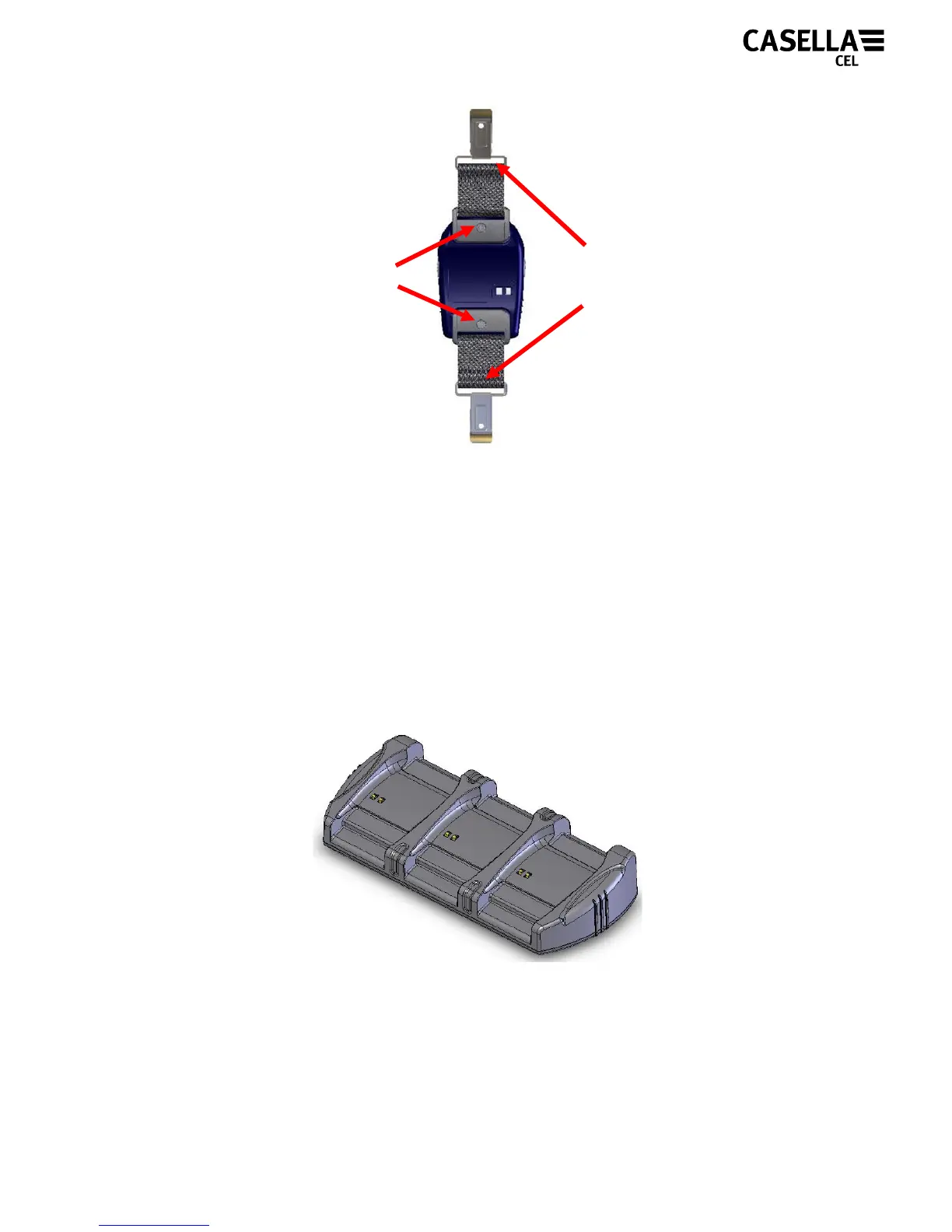

3.3 The CEL-6362 Charger
A CEL-6362 is a drop-in intelligent 3-way charger unit, required to
charge the internal Nickel Metal Hydride (NiMH) batteries on the
CEL-35X dBadge. The CEL-6362 consists of the charger base,
part number 193102B-01 and the -PC18 mains power supply unit
(PSU). The PSU will require fitting with an appropriate plug
connector (supplied) for the country of use.
Figure 3
Note that charger base 193102B-01 is for use with the CEL-35X
and the CEL-35X/IS. The previous version of the charger base
(193038B-01) can only be used with the CEL-35X and NOT the
CEL-35X/IS. Note that all versions of the dBadge should only be
Screws for
mounting
clips
Crocodile
Mounting
Clips
