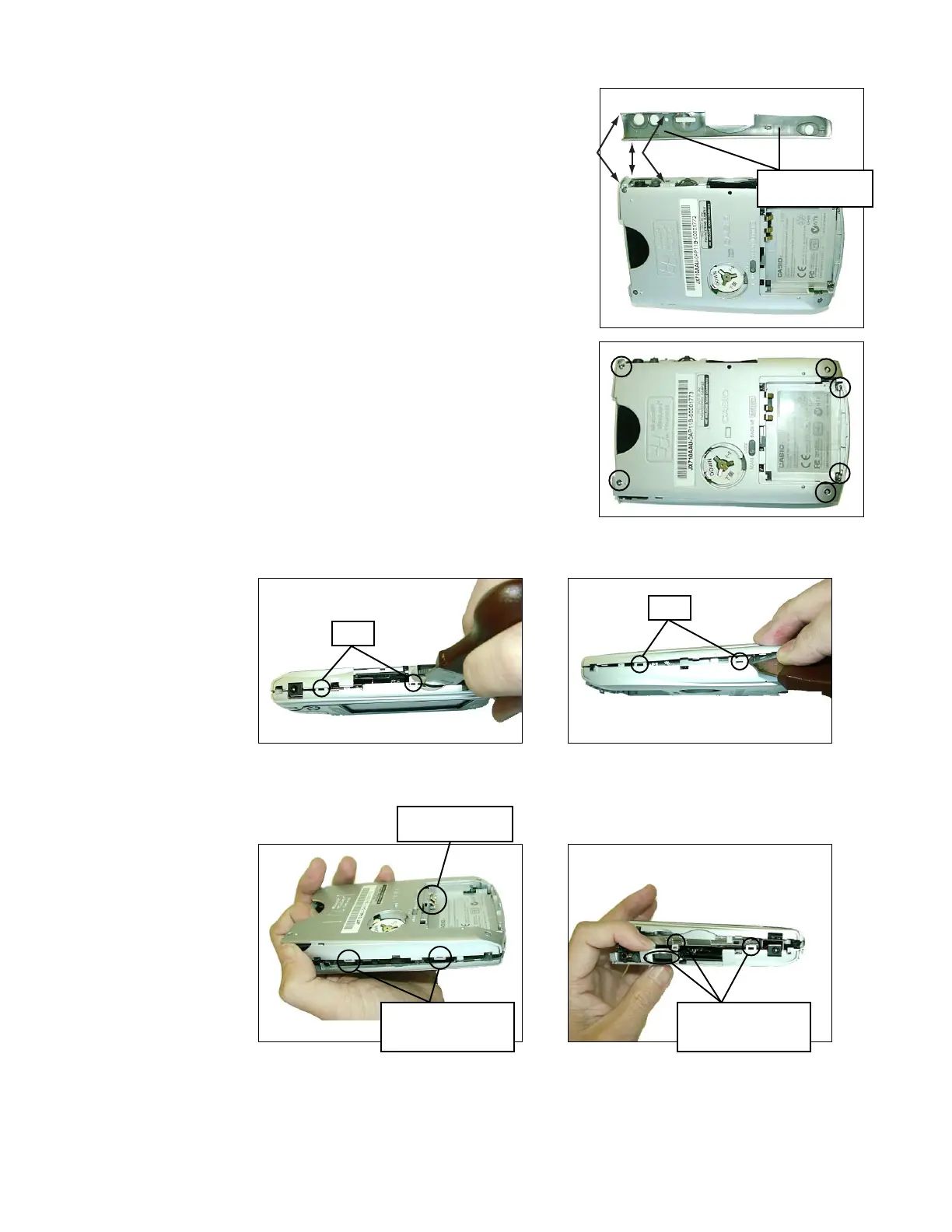

5. Disassemble other side cover as same as 4.
6. Remove 6 screws from the case.
7. Unhook and separate the upper and lower cases by using case opner as shown figure.
8. Separete the upper and lower case, and main PCB, LCD module and button PCB must be the upper case
side.
Adhesive tape at
this side
Hook
Hook
Obstructing
battery springs
Obstructing
mainPCB on the
hooks
Obstructing
mainPCB on the
hooks and jog dial
