R-10
Hardware Configuration
1.
Hardware configuration
This section outlines the hardware, optional devices, and configurations of the QT-6000
system.
1-1.
General configuration

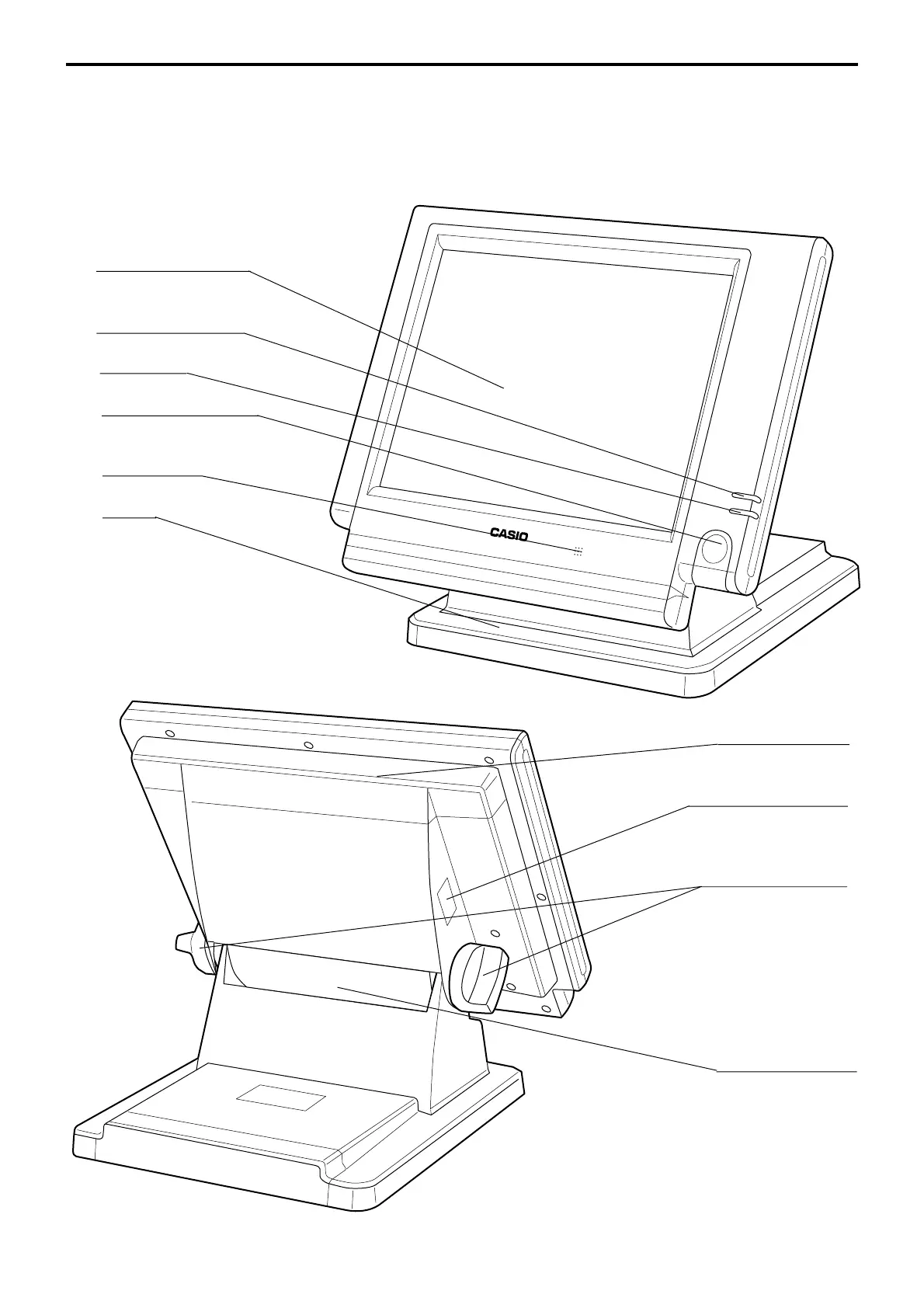

Touch screen panel
Display on/off key
Pilot lamp
i-Button key receiver
(only for QT-6000-DLS)
Microphone
Stand
Card slot cover
Power switch cover
Panel fixing screw
Connector cover
Front view
Rear view
9
11
Table of Contents
Default Chapter
5
Table of Contents
5
1 Hardware Configuration
10
General Configuration
10
Hardware Diagram
11
Display
11
Cash Drawer
14
Input/Output Connectors
15
Optional Peripherals
16
System Configuration
17
2 Application Systems
23
General Description of Application System
23
File Concept
23
Linkage of Totalizers
24
Function Keys
25
Keyboard Layout
25
Mode Control
26
Operation Prompt and Error Messages
26
Printing Control System
26
General Description of Individual Function Keys
29
System Keys
29
Finalize Keys
30
Transaction Keys
30
Remote Printer Control
38
Remote Printer System Configuration
38
Remote Printer Control Setting
39
Remote Printer Output Control
40
Remote Printer Backup Processes
40
Check Tracking System
43
Shared Check Tracking System
43
Shared Check Tracking Requirement
44
Data Backup When the Master Goes down
44
Other Check Tracking System Control
45
The Timing to Clear Check Detail and Index File after Finalization
45
Store and Recall
45
Clerk Control Function
47
Clerk Interrupt
47
Clerk Detail Memory
48
Clerk Training
48
Manager Mode Control
48
QT-6000 Reference Manual
49
Arrangement Key Function and Scheduler
50
Arrangement Key Function
50
Arrangement Program Example
54
Scheduled Execution of Arrangement Key Function
54
Making Graphic Logo
55
About Graphic Logo
55
Making Graphic Logo Procedure
55
Hourly Item
56
Programming Necessary Files before Using Hourly Item Function
56
Time and Attendance
57
Corresponding Relations of the File
58
Clock-In Operation
61
Clock-Out Operation
63
Sign on Control
65
Sign on
65
Solution to Abnormality of Master Terminal
66
Solution to Abnormality of Satellite Terminal
66
Sign on Compulsory
66
IDC (Item Data Capture
67
Available Capturing Items
67
Set up the IDC Start / End
70
IDC (Item Data Capture
70
How to Memorize the Captured Items
71
IDC Data File Structure
72
IDC Data Type
76
Transferring IDC
77
Electronic Journal
78
Storing Electronic Journal
78
Issuing Electronic Journal Report
78
Displaying Electronic Journal and Producing Guest Receipts after Sales
78
Transferring Electronic Journal Memory
79
3 Manager Operation
82
Machine Initialization
82
Init
82
Flag Clear
82
Init2
82
INIT Code
83
IPL (Initial Program Loading
83
Ipl
83
System Configuration before IPL Operation
84
IPL Operation
85
Manager Function
86
System Connection Check
86
Remote on
87
Remote off
87
Busy Reset
87
Busy Reset
88
Stock Maintenance
89
Drawer for Clerk
89
Order ID Change
89
Drawer for Clerk
90
CHK# (Clerk Interrupt
90
Order ID Change
91
Error Log Print
92
System Re-Configuration
93
Item Data Capture
94
Euro Change over
95
Clerk Window
95
Customer
95
Customer Busy Reset
95
Clerk Window
96
Customer
97
Customer Busy Reset
98
Sound
98
Clerk Number
99
Operation Monitor
99
System Command Execution
100
X/Z Reporting
100
X/Z Collection / Consolidation
101
Remote Power Control
102
Data Communication System
103
Inline / Online Connectors
103
Hardware Interface
104
Inline / Online Functions
106
Collection/Consolidation System
107
Collection / Consolidation System
107
X/Z Collection
109
X/Z Consolidation
111
X/Z Collection / Consolidation
113
Auto-Programming Function
116
Auto-Programming Functions
116
Auto-Program Operation and CF Card Utilities
117
4 Registrations
122
Clerk Sign on / off Operation
122
Voiding the Last Registered Item (<VOID> Key Operation
123
Voiding the Previous Registered Item (<VOID> Key Operation
124
Cancelling of All Data Registered During the Transaction
124
Using the List Function
126
Using the Set Menu Function and Pulldown Group Function
127
Post Entry
130
Separate Check
131
Open Check
132
Dutch Account
132
Media Change
133
Eat-In / Takeout
134
Scanning PLU
134
Shift PLU
135
Printing Barcode on Receipts (UP-350 and
135
Round Repeat Function
136
(Future Use) MIX & Match / Coupon
137
Customer
138
Order Character Change
139
Item Search
139
5 Refund Mode Operation
141
Selecting REF or REG- Mode
141
6 Read and Reset Operations
143
The Procedures of Reading or Resetting
143
Report Sample
143
Appendix-1 Function Key List
160
Appendix-2. File Format
176
A-2-13-5. Job Code File
177
A-2-13-6. Schedule File
178
A-2-15. Table Analysis File
179
A-2-16. Grand Total File
180
A-2-16-1 Grand Total (Daily
180
Grand Total (Periodic/Consolidation
180
A-2-17. Customer File
181
A-2-17-1 Customer File
181
A-2-17-3 Customer Title
181
A-2-19. Special Character File
183
A-2-19-1 Special Character
183
A-2-21. Tax Table File
183
A-2-19-1 Tax Table
183
A-2-20. Report Header File
183
A-2-20-1 Report Header
183
A-2-22. Pulldown Group File
184
A-2-22-1 Pulldown Group
184
A-2-23. Set Menu Table File
184
A-2-23-1 Set Menu Table
184
A-2-24. Batch X/Z File
185
A-2-24-1 Batch X/Z
185
A-2-25. Receipt / Slip Message File
185
A-2-25-1 Receipt / Slip Message
185
A-2-26. Check Endorsement Message File
185
A-2-26-1 Check Endorsement Message
185
A-2-27. Arrangement File
186
A-2-28. Character Recall File
186
A-2-28-1 Character Recall
186
A-2-29. Check Print File
186
A-2-29-1 Check Print
186
A-2-30. Graphic Logo File
186
A-2-31. Scheduler File
187
A-2-31-1 Scheduler
187
A-2-32. Order Character File
187
Order Character
187
A-2-33. Euro Program File
187
A-2-33-1 Euro Program File
187
A-2-34. Character Conversion for CF File
187
A-2-34-1 Character Conversion for CF File
187
A-2-35. Check# Pop-Up Window Definition File
188
A-2-35-1 Check# Pop-Up Window Definition File
188
A-2-36. Clerk Pop-Up Window Definition File
188
A-2-36-1 Clerk Pop-Up Window Definition File
188
A-2-37. Sound File
188
A-2-37-1 Sound (1) ~ (10) File
188
A-2-38. System Files
189
Key Table
189
A-2-38-2 Touch Screen Key Table
189
A-2-38-3 System Connection Table
189
A-2-38-4 I/O Parameter Table
190
A-2-38-5 Printer Connection Table
190
System Error Log
190
A-2-38-7 Auto Program Control
190
A-2-38-8 LCD Color Control
190
A-2-38-9 Keyboard Color Definition
191
A-2-38-10 Keyboard Color Theme
191
A-2-38-11 Keyboard Bitmap Image
191
Appendix-3 Counter and Totalizer Calculation Method
193
Error Messages
198
Index
205
