QT-6000 Reference Manual
3-5. Data communication system
The following details the inline and online data communication functions available with
the QT-6000 system.
3-5-1. Inline / online connectors

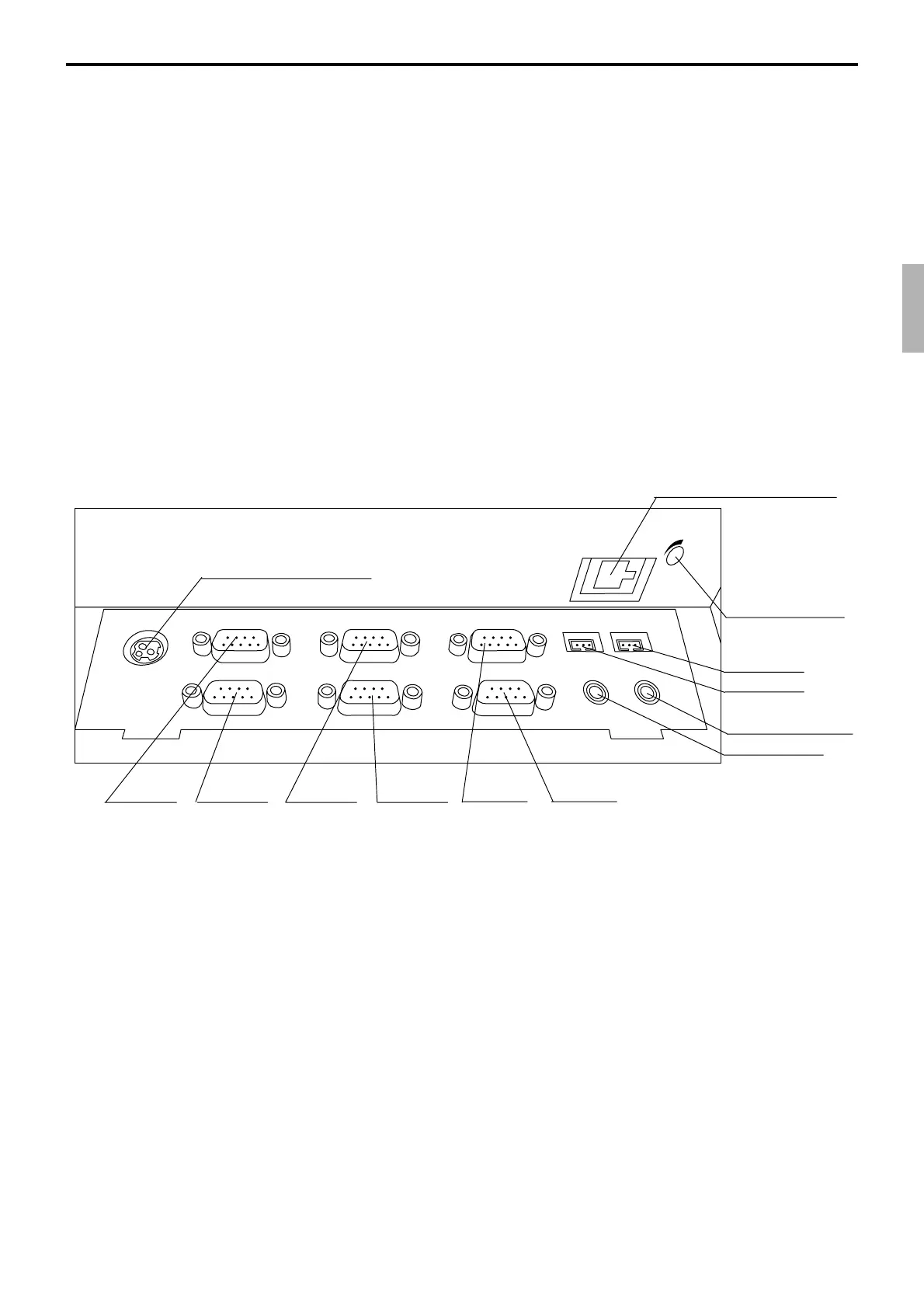

With the QT-6000, there are the following inline / online connectors in the rear side of the
body.
Inline (Standard) Ethernet
RS-232C COM1 (Standard) For MODEM or PC direct connection
RS-232C COM2 (Standard) For Hand held scanner, or Slip printer
RS-232C COM3 (Standard) For Remote customer display
RS-232C COM4 (Standard) For Remote printer or Slip printer
RS-232C COM5 (Standard) For Remote printer
RS-232C COM6 (Standard) For Remote printer
DC IN
PC/MODEM SCANNER DISPLAY
DRW1 DRW2
COM1
COM4
COM2
COM5
COM3
COM6
SPK
MIC
LAN1
VOL
COM1 COM4 COM2 COM5 COM3 COM6
From the AC adaptor
Inline (10/100Base-T)
Sound
volume control
Drawer 2
Drawer 1
Ext. microphone
Ext. speaker
Bottom side of the terminal
