R-14
Hardware Configuration
1-5. Cash drawer

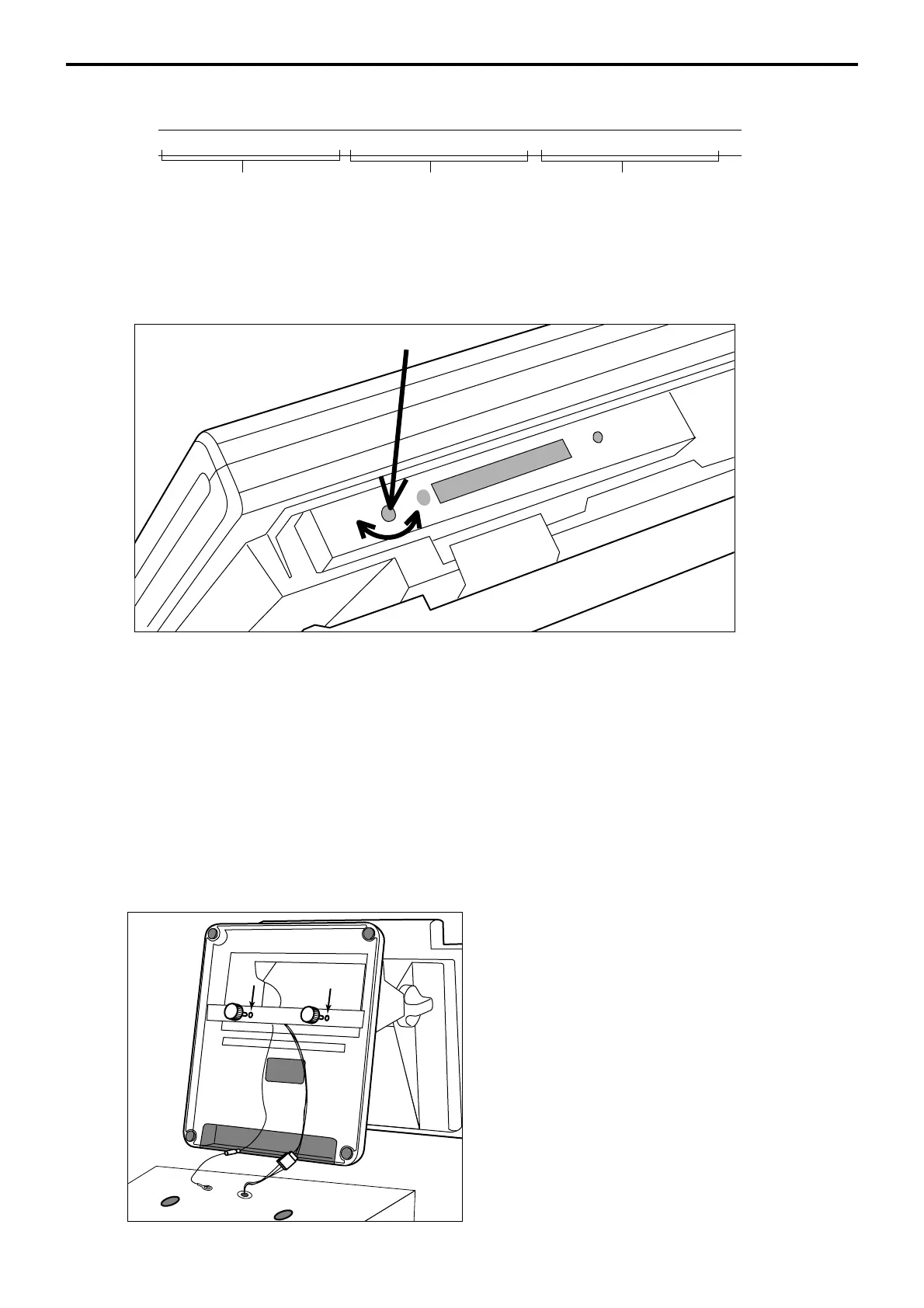

In case of connecting drawer, follow the procedure below.
Connect the drawer.
1. Connect drawer connector (three color lead on drawer) to the terminal.
2. Connect frame drawer connector (green lead on drawer) to the terminal.
Mount the cash register.
1. Screw in 2 fixing screws bottom side of the terminal.
2. Mount the terminal on the top of the drawer, ensuring that the feet on the bottom of the
terminal go into the holes on the drawer.
Dark Bright
1-4-4. Main display brightness control
1-4-3. Menu level display part contents
SHIFT PLU 1 Menu shift 1 2nd@
Shift PLU level (1 ~ 8) Menu sheet (1 ~ 15) 2nd unit Price level (1 ~ 2)
