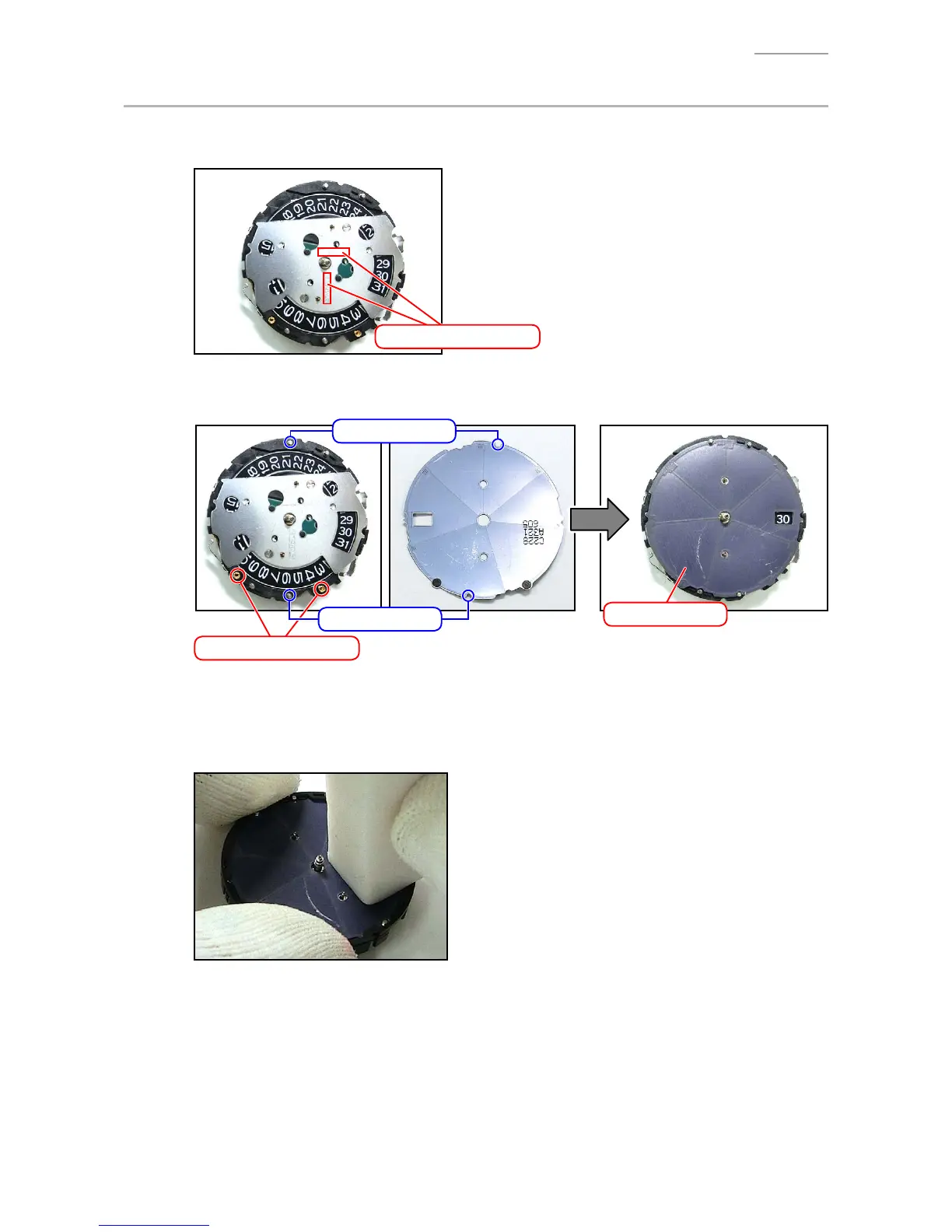

6-5. REASSEMBLY OF DIALS AND SOLAR CELL
1) AttachtheTAPE/ADHESIVEat2locationstothemodule.
Note: When attaching the TAPE/ADHESIVE, do not allow it to touch any shafts and holes.
TAPE/ADHESIVE
2) AttachtheSOLERCELLtothemodule.
Note: Place SPRING/COIL 1840-1 beforehand. Do not lose them.
SOLERCELL
Align
SPRING/COIL1840-1
Align
3) ApplypressureontheSOLERCELLwheredouble-sidedtapeisattachedbyusinganeraserso
thatthesolarcellistightlyattachedtothemodule.
Note: Keep all foreign material away from the SOLER CELL. Do not contaminate or damage
the SOLER CELL. Be sure to use a clean, unused eraser. Do not use an eraser used for
ofce tasks.
