SE-S100 / PCR-T285 / PCR-T295
– 17 –
Y
DISPLAY-UNIT
SHEET/SHIELD/LCD
CABLE/FFC/JOINER
DISPLAY-UNIT
FRAME/DISPLAY
(1) FRAME/DISPLAY

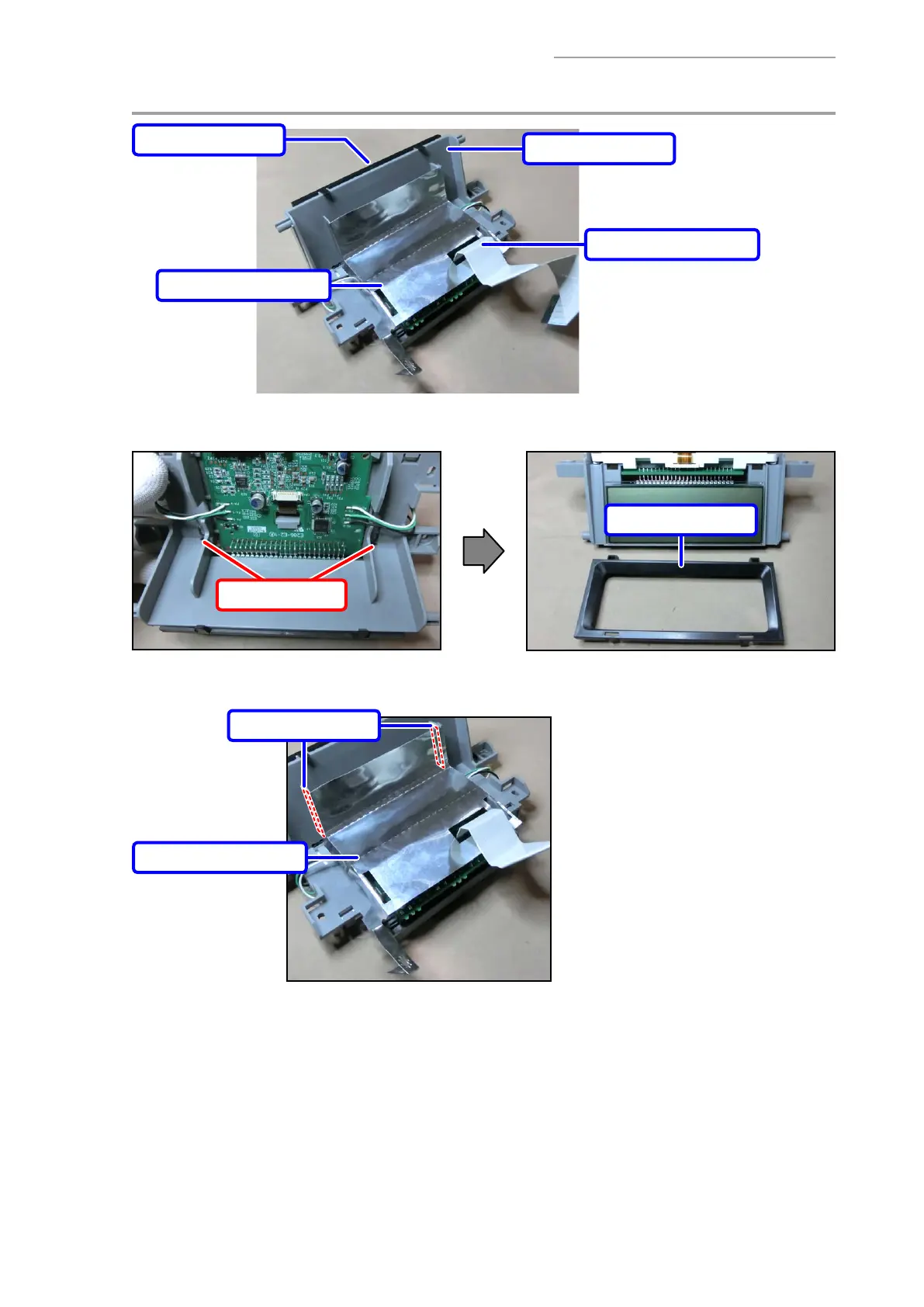

Disengage two hooks and remove the FRAME/DISPLAY.
FRAME/DISPLAY
Hooks
(2) SHEET/SHIELD/LCD
It is fi xed with two double faced tapes.
SHEET/SHIELD/LCD
D-TAPE/SHEET
