Casio SE-S100 Service Manual

SE-S100 / PCR-T285 / PCR-T295
– 2 –
2. IPL (INITIAL PROGRAM LOADER)
Important:
Main PCB (E261-1 PCB) supplied as spare parts have been pre-installed application and diagnostic
software at the timing of product.
So check the version number of main PCB you replaced and install an appropriate application software,
if necessary.
2-1. Preparation
Prepare the SD card which contains the APLI module (IPL fi le) in the root directory.
2-2. Procedure
(1) Unplug the power cord.
(2) Turn the Mode switch to [PGM], then while pressing
f
, plug the power cord.

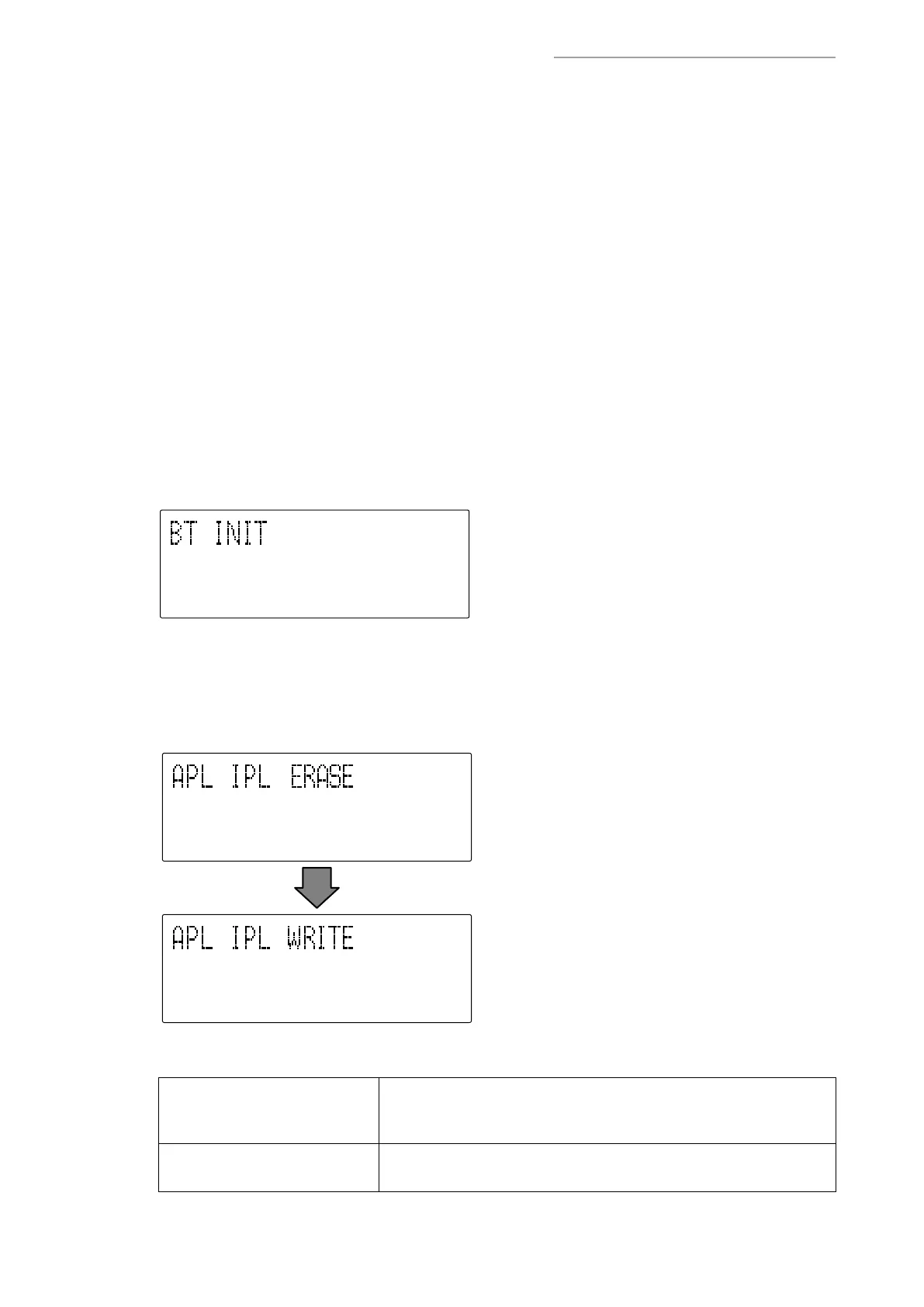

(3) When a pip sound is heard and “BT INT” is displayed, release
f
.
(4) Insert the SD card into the SD card slot.
(5)
4 4 4 4 9 9 9 9
o
(6)
3 0
o
IPL runs.
YY XX
YY XX
YY
: Depends on the application.
XX
: Counts up from 1 to YY, and stops at YY.
(7) When IPL is completed:
Without LOCALE information Since the diagnostic program automatically runs, carry out the
LOCALE setting.
Refer to the fl ow in “Initial LOCALE judgment/settings” (P3).
With LOCALE information Proceeds to the language setting.
Refer to the setting fl ows by destination (P4 to 7).

Casio SE-S100 Specifications

General

Types of payment	Cash
Number of clerks/departments	24
Number of Price Look-Up codes (PLUs)	2000 PLUs
Power source	AC
AC input voltage	100-240 V
Supported paper width	58 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Backlight	Yes
Display digits	10 digits
Second display type	LCD
Display number of lines	2 lines
Display number of characters	20

Weight and Dimensions

Depth	345 mm
Width	326 mm
Height	167 mm
Weight	3300 g
