Casio SE-S100 - Mount;Pcb; Printer

SE-S100 / PCR-T285 / PCR-T295
– 19 –

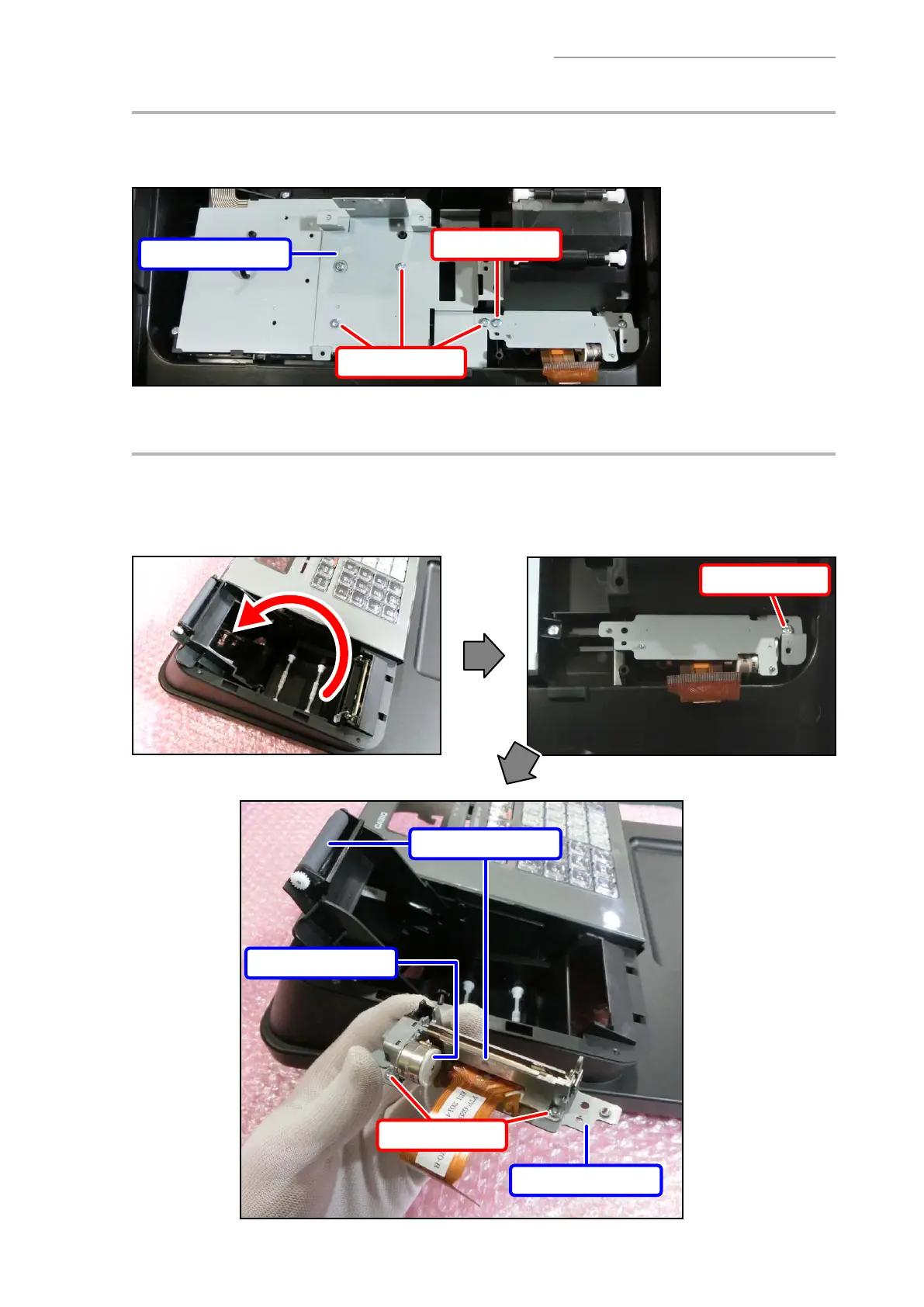

H. MOUNT/PCB
H-1. Undo four screws.
H-2. Remove the MOUNT/PCB.
Screws (S7)
Screw (S3)
MOUNT/PCB
I. PRINTER
I-1. Open the Platen arm
I-2. Undo two screws.
I-3. Remove the PRINTER.
Screw (S3)
COVER/PRINTERMOUNT/PRINTER
PRINTER
Screws (S6)
STOPPER
