J. KEY BOARD UNIT
4
3
2
1
5
Screw (S3)

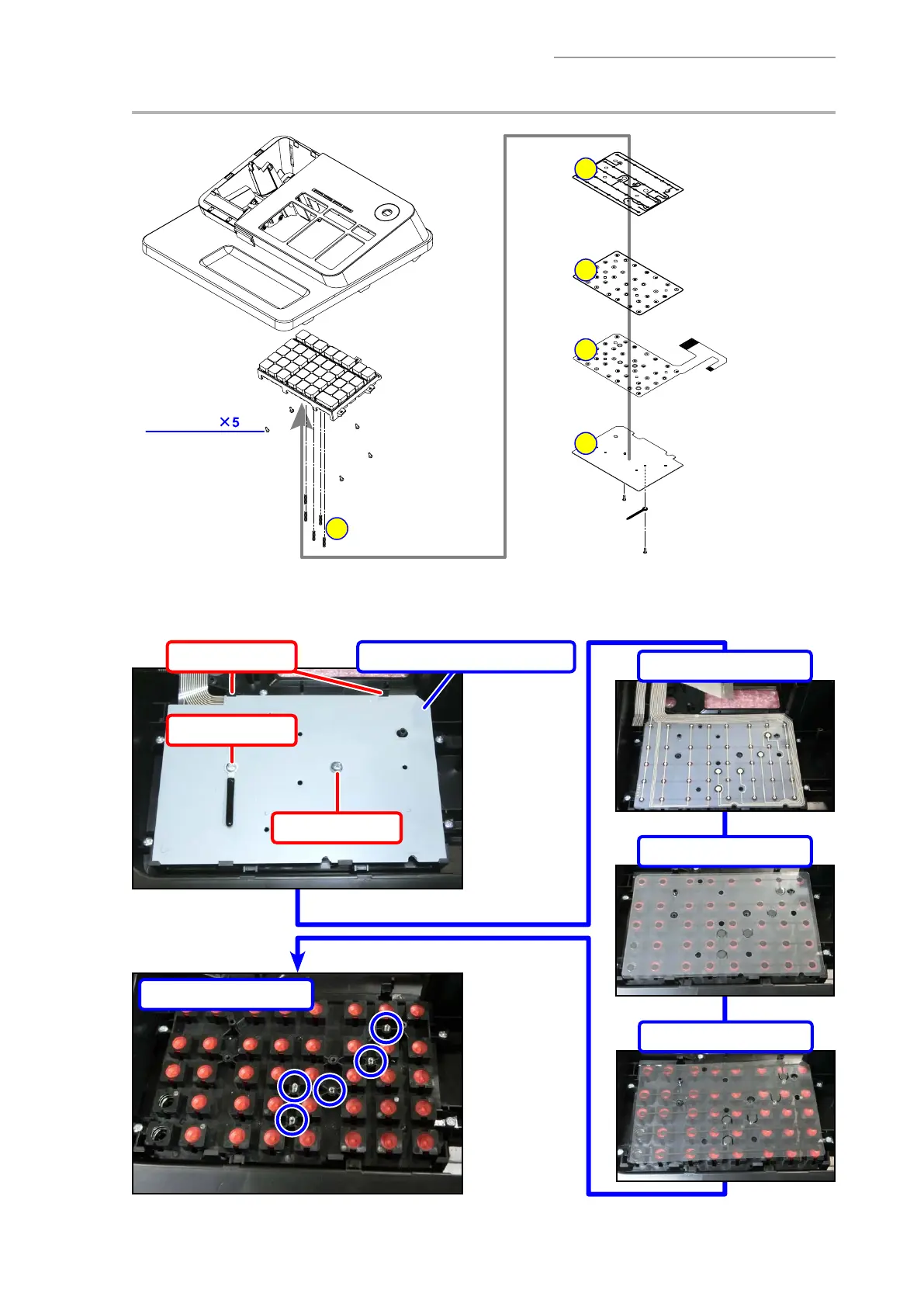

J-1. Undo two screws.
J-2. Release two hooks and remove the CHASSIS/KEY BOARD.
Hooks
Screws (S3)
Screws (S10)

SPRING/PRESS/B

CHASSIS/KEY BOARD

SPACER

FPC

SHEET/COMMON
