Casio SE-S100 Service Manual

SE-S100 / PCR-T285 / PCR-T295
– 45 –

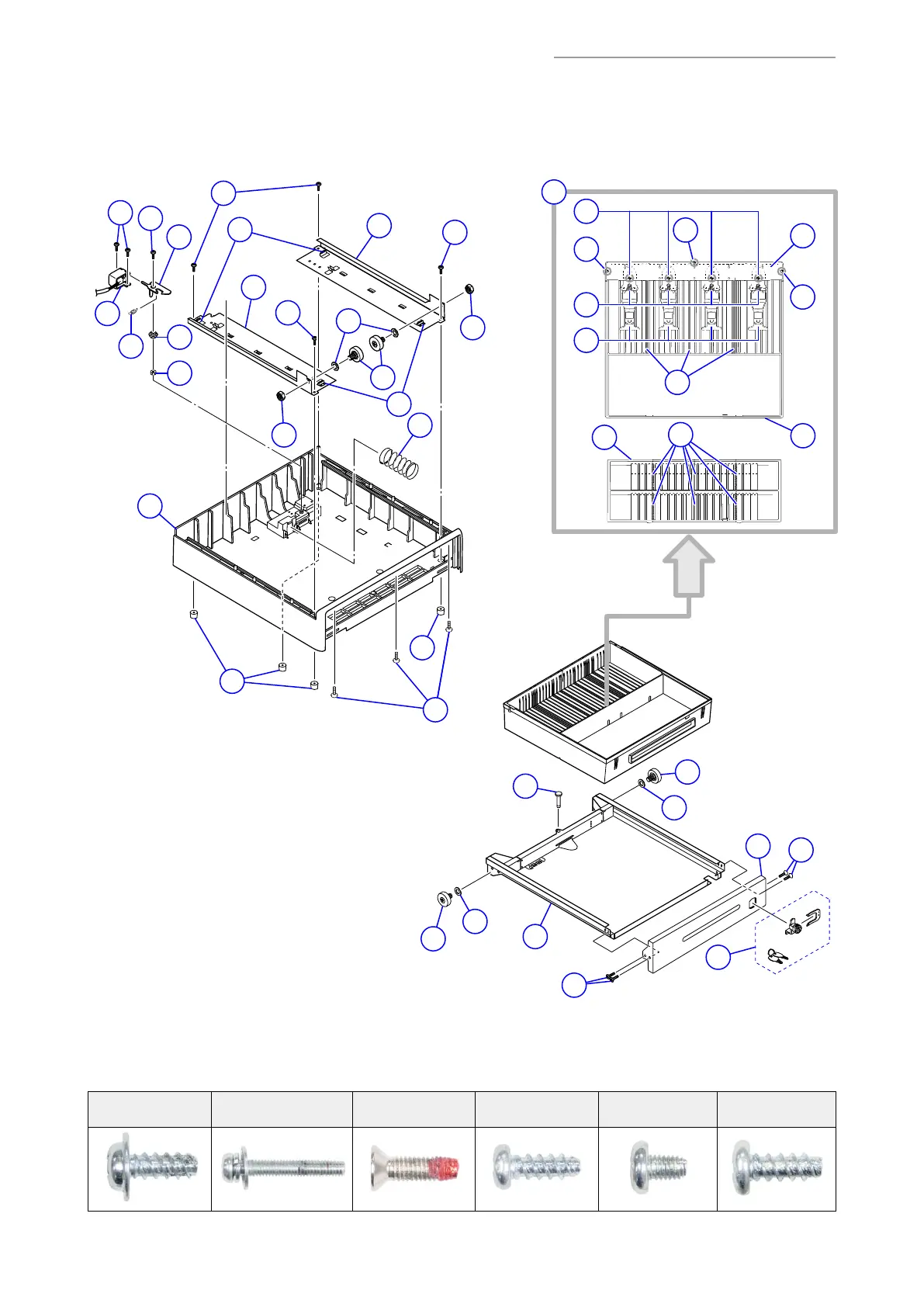

7-4. Drawer M-type (DL-2816A)
Exploded View
* Specifi cations of the screw
S1
(
φ : 4mm, L: 10mm)
S2
( φ : 4mm, L: 25mm)
S3
( φ : 3mm, L: 10mm)
S4
( φ : 3mm, L: 8mm)
S5
( φ : 3mm, L: 5mm)
S6
( φ : 3mm, L: 8mm)
16
3
S1
S1
S2
7
S1
8
S1
6
9
9
N1
N2
4
N1
5
11
10
12
S3
15
13
1
14
24
24
W2
W2
S3
S6
10
2
W1
20
S4
S4
S4
19
21
22
23
17
18
S5

Casio SE-S100 Specifications

General

Types of payment	Cash
Number of clerks/departments	24
Number of Price Look-Up codes (PLUs)	2000 PLUs
Power source	AC
AC input voltage	100-240 V
Supported paper width	58 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Backlight	Yes
Display digits	10 digits
Second display type	LCD
Display number of lines	2 lines
Display number of characters	20

Weight and Dimensions

Depth	345 mm
Width	326 mm
Height	167 mm
Weight	3300 g
