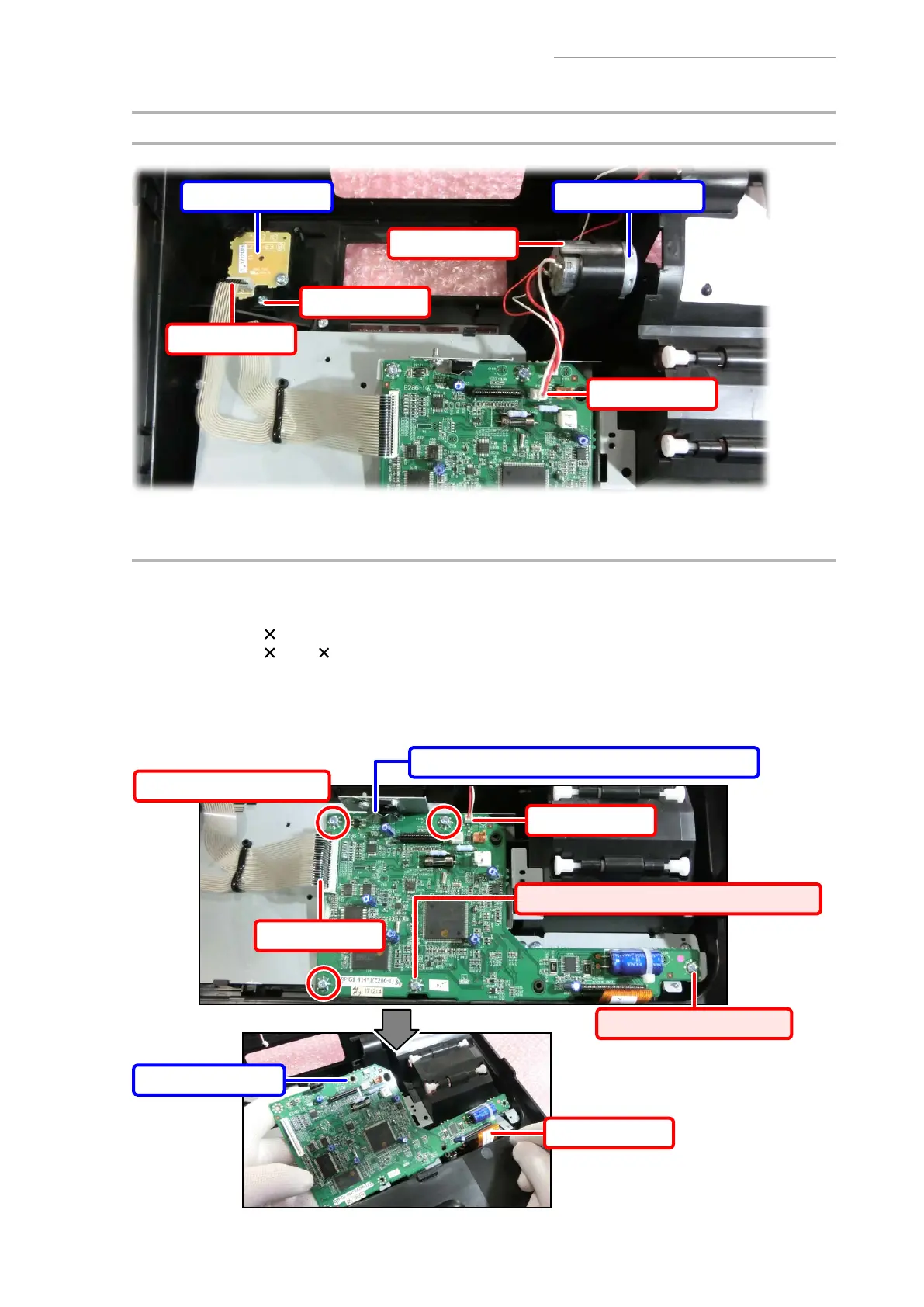

SE-S100 / PCR-T285 / PCR-T295
– 18 –
E. MODE KEY
F. MOTOR
MODE KEY MOTOR
FFC
Connector
Hook
Screws (S3)
G. PCB ASSY/E286-1
G-1. Undo one screw and then remove the HOLDER/IC.
G-2. Undo three or ve screws.
S-type: S5
3
M-type: S5 4, S7 1
G-3. Disconnect the connector and FFC.
G-4. Remove the PCB ASSY/E286-1.
G-5. Disconnect the FPC.
PCB ASSY/E286-1
FPC
FFC
Connector
Screws with Washers (S5)
HOLDER/IC + Screw with Washer (S5)
Screw with Washer (S5) *M-type only
Screw (S7) *M-type only
